Kioti Models Covered & Key Technical Specifications

Models: DK45 (4A220 engine), DK50 (4A200T engine), DK45C, DK50C

Sub-models / Variants: 4WD (selectable front-wheel drive), Cabin (DK45C, DK50C), ROPS, Manual Transmission, Synchronized Shuttle (optional creep range on DK45 and DK50)

Model Year: 2003


  • Engine Displacement: 2,197 cc (DK45) / 1,999 cc (DK50)

  • Engine Configuration: 4-cylinder, vertical, water-cooled, 4-cycle diesel

  • PTO Power: 38 HP (DK45) / 41.5 HP (DK50)

  • Engine Gross Power: 45 HP (DK45) / 49 HP (DK50)

  • Transmission: Synchronized shuttle, 12 forward and 12 reverse speeds

  • Steering: Hydraulic power steering

  • Braking System: Wet disc type traveling brake

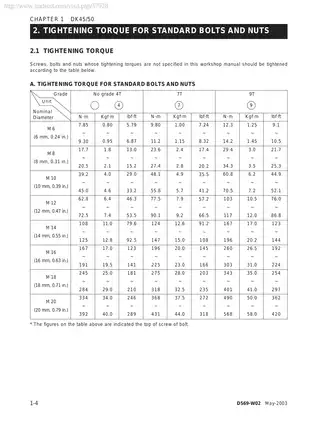

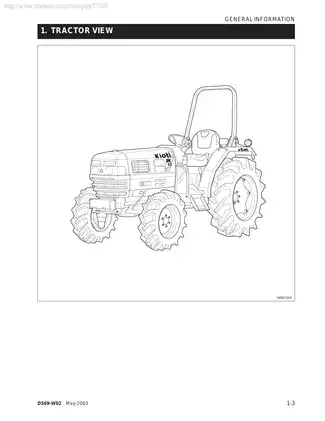

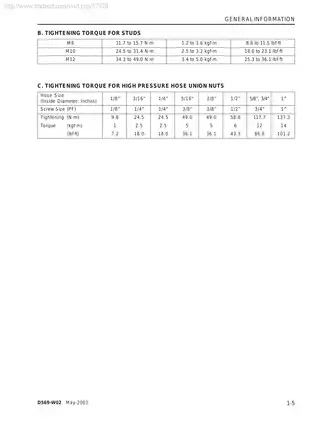

Kioti Manual Features & Selected Content Preview

This Kioti workshop manual covers service for the 2003 DK45 and DK50 tractors in ROPS and cab configurations. It includes a separate main wiring diagram for the DK45C and DK50C. The pages carry the document codes D569-W02 and D569-W03, dated May and June 2003.

Search, Bookmarks, and Wiring Detail

Finding text and tracing wires: The main text is searchable, and embedded bookmarks cover all nine chapters. The small wire codes and terminal markings in the two main wiring diagrams sit outside the searchable text and are best read at higher zoom.

The download is one printable English 323-page PDF. That total includes nine chapter-opening pages, ten blank pages, and one otherwise blank numbered page.


Engine Overhaul, Shuttle Repair, and System Diagnosis

These are selected workshop topics. The manual also includes a periodic maintenance checklist and an oil and coolant capacity chart.

  • Engine repair: Cylinder head, piston, crankshaft, and timing gear service, with compression checks, valve adjustment, and injector nozzle testing.
  • Clutch and transmission: Dry single-plate clutch inspection, shuttle and main gear service, and troubleshooting for the high/low and optional creep ranges.
  • Axles and brakes: Front wheel alignment, spiral bevel gear backlash adjustment, planetary reduction gear service, differential lock repair, and wet-disc brake inspection.
  • Hydraulics and steering: Three-point lift diagnosis, MLS valve sensitivity adjustment, double-acting auxiliary valves, tandem pump inspection, and Orbitrol steering unit disassembly.
  • PTO clutch: Wet multi-disc clutch overhaul, solenoid and modulating valve checks, and pressure checks for engagement faults.
  • Electrical diagnosis: Main wiring diagrams and fault checks for the starting, charging, preheating, and instrument circuits.
  • Cab systems: Cab and heater removal, HFC-134a air-conditioning service, and gauge-pressure charts for diagnosing poor cooling.

The manual is suited to tractor mechanics familiar with splitting tractors, checking wear and clearances, and testing hydraulic pressure. The cab chapter calls for qualified A/C personnel and approved service and recovery equipment.

4A220 and 4A200T Engine Service

Fuel system: The manual gives separate injection timing and valve clearance specifications for the naturally aspirated 4A220 and turbocharged 4A200T. It covers governor operation, injection pump timing, and delivery valve leakage testing. Pump element replacement calls for fuel delivery adjustment on a test bench.

Cooling and lubrication: Oil and coolant flow diagrams accompany the oil pump inspection, radiator pressure test, water pump service, and thermostat replacement. DK50 turbocharger coverage is limited to construction, operation, and service precautions.

Clutch, Gear Train, and Differential Setup

The power train diagram shows how power flows through the shuttle, main gears, range gears, and PTO. The service text gives synchronizer wear checks and shift fork clearances and explains the interlock that keeps two gears from engaging together.

Clutch assembly: Uneven loading on the clutch cover bolts can distort the cover or pressure plate. The adjustment section gives separate checks for clutch pedal travel and the safe-start switch gap.

Differential setup covers shim selection, gear tooth contact, and bearing turning torque. The brake chapter includes cam plate inspection, disc wear limits, and parking brake linkage adjustment.

Lift and PTO Fault Checks

Hydraulic circuit drawings show the oil paths and gauge connections used to distinguish a pump output problem from a lift control valve fault or a PTO engagement fault. The lift section explains position, draft, and mixed control and covers feedback linkage adjustment for a hitch that hunts. In the hydraulic chapter, the printed page numbering jumps from 6-6 to 6-9.

Cab Wiring and Air Conditioning

The cab wiring diagram adds the wiper, washer, heater, and A/C circuits. The starting and preheating sections show the PTO interlock, clutch switch, glow relay, and coolant temperature input. The A/C section warns that CFC-12 or equipment previously used with it can damage the HFC-134a system.

Sample Injector, Thermostat, and Front Axle Checks

The nozzle tester specification for both engines is 13.73–14.71 MPa. In the cooling system test, the thermostat should begin to open at 71 ± 1.5 °C.

The front axle chapter gives a factory toe-in range of 2–8 mm, measured with the front wheels straight ahead and the tires at the specified pressure.
