JLG Models Covered & Key Technical Specifications

Models: 1930ES, 2030ES, 2630ES, 2646ES, 3246ES

Sub-models / Variants: USA, Belgium, China, Single Cap and Dual Cap (2630ES), Indoor, Outdoor, ANSI, CSA, CE, AUS

Model Years: 2003–2012 (2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012)

Serial-number breaks (Torque Hub / drive motor procedures): USA: 0200118041, 0200152825, 0200170585; Belgium: 1200001487, 1200008481, 1200015159

Serial-number breaks (electrical schematics, before / from): 1930ES: USA 0200150266, Belgium 1200007882; 2030ES / 2630ES: USA 0200152825, Belgium 1200008481; 2646ES / 3246ES: USA 0200151606, Belgium 1200008265


  • Electrical system voltage: 24V DC

  • Drive motor power: 0.65 Horsepower @ 3750 rpm

  • Hydraulic pump motor power: 3 kW

  • Maximum hydraulic pressure: 1700–2000 psi

  • Battery charger output: 20 Amp (SCR)

JLG Manual Features & Selected Content Preview

This JLG Service & Maintenance Manual, P/N 3121166, revised October 3, 2012, covers 2003–2012 JLG 1930ES, 2030ES, 2630ES, 2646ES, and 3246ES scissor lifts. It includes U.S., Belgian, and China-built configurations, with procedures keyed to serial number and installed components.

PDF Search, Bookmarks, and Included Pages

Text search and diagram detail: Search the service text and tables or use embedded bookmarks to jump to any of the seven technical sections. Some schematic and analyzer chart labels fall outside the searchable text. Small wiring labels are easiest to read when zoomed in.

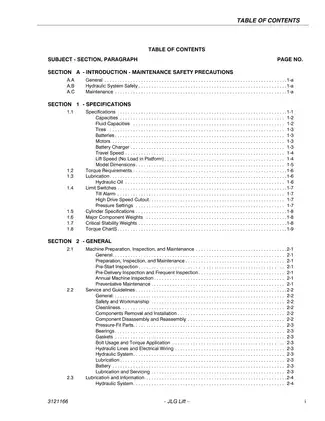

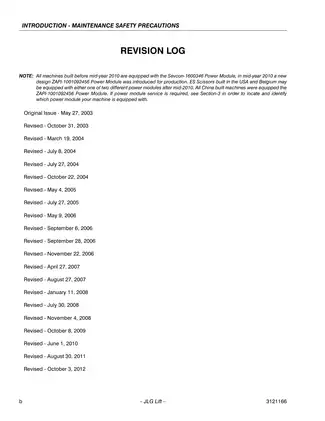

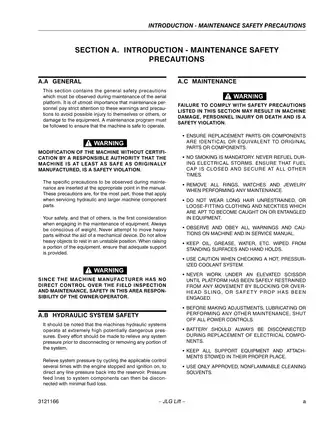

The download contains one printable, English-language 218-page PDF. The total includes 12 front-matter pages, 204 section-numbered pages, and two closing pages with the battery warning and JLG contact information. Covers, contents, safety information, revision history, notes, and blank pages are included.


Drive, Hydraulic, and Control System Service

This selection of workshop topics also includes examples such as platform removal and AMP and Deutsch connector service.

  • Drive motors and Torque Hubs: Brush replacement, hub disassembly and reassembly, roll and leak tests, and serial-specific procedures for manually disengaging the drive brakes.
  • Hydraulics: Lift and steer cylinder repair, pump and motor assembly removal, platform drift testing, and operation of the proportional and manual descent valves.
  • Control setup and calibration: Hand Held Analyzer menus, tilt and elevation sensor calibration, joystick controller specifications, and setup tables for Sevcon and ZAPI power modules.
  • Electrical troubleshooting: Flash codes, diagnostic trouble code tables, connector pinouts, and electrical schematics for tracing drive, lift, steer, and control circuit faults.
  • Chassis and scissor arms: Scissor assembly removal and installation, pivot pin and bearing inspection, slide-block lubrication, and pothole switch adjustment and replacement.
  • Battery charging: Charger fault indications, charging algorithm selection, flooded and AGM battery settings, and specifications for the optional charger/inverter.

The repair and preventive maintenance procedures are suited to qualified JLG equipment mechanics. JLG recommends a factory-trained service technician for the annual machine inspection.

Drive Motor Repair and Torque Hub Service

The manual includes step-by-step instructions for replacing drive motor brushes and for disassembling and reassembling Torque Hub components. Exploded views and assembly tool drawings identify the hub, spindle, and planetary gear assemblies. Roll and leak tests check the assembled unit.

Motor service covers armature and field checks, commutator inspection, brush wear limits, and bearing replacement. The Bearing Pressure Guidelines drawing shows where to apply force during bearing installation. The manual also warns that the wrong brush grade can cause premature commutator failure.

The Traction Control Circuit diagram accompanies motor, cable, and brake-release checks. Together they help a technician distinguish a motor or wiring fault from a parking brake that stays engaged.

Lift and Steer Cylinder Repair

The Lift Cylinder/Pump/Tank Assembly drawing shows how the hydraulic components fit together. Cylinder procedures cover disassembly, inspection, seal installation, and reassembly, including a separate steer-cylinder piston removal procedure for P/N 1684456. The manual warns that pulling the rod assembly off-center can damage the piston or barrel.

Hydraulic diagnosis covers drift and leakage checks and lift-pressure adjustment. The hydraulic schematic supports circuit tracing, and the reference tables distinguish tank capacity from total system capacity and list cylinder dimensions.

Sevcon and ZAPI Fault Diagnosis

China-built machines use the ZAPI 1001092456 power module. U.S. and Belgian machines can have either that module or the Sevcon 1600346. Identifying the installed module helps you select the matching connector assignments and wiring diagrams before testing.

The Hand Held Analyzer procedures cover logged faults, system tests, machine setup, and personality settings. Separate flowcharts map the Sevcon and ZAPI menus, and the manual also covers software updates and drive cutout calibration.

Section 5 lists flash codes for machines without a Multifunction Digital Indicator (MDI). Section 6 covers MDI-equipped machines with Sevcon ground-board software P1.13 or later, or ZAPI ground-board software P1.0 or later. The manual identifies Load Sensing System (LSS) faults and refers detailed LSS troubleshooting and calibration to the separate LSS manual, P/N 3124288, which is sold separately from this download.

Scissor Arms, Inspection, and Charging

The inspection schedule includes daily and weekly checks, service-hour intervals, and annual inspections. Chassis procedures explain how to support and remove the scissor assembly and distinguish pothole switch configurations. Service precautions cover hydraulic pressure relief, electrical isolation, and mechanical support of raised arms.

The Battery Inverter/Charger Schematic covers the optional AC equipment. The manual provides supplemental wiring and interlock checks and directs technicians to start with the separate RM1024-JLG Charger/Inverter Owner’s Guide, P/N 3128406, which is outside this download.

Platform Drift and Drive Brake Test Examples

For the drift check with the platform fully raised, the manual allows up to 2 in. (5 cm) of platform movement over 10 minutes. A separate table gives cylinder-rod drift limits by bore size. Fastener reference charts cover SAE and metric hardware, including zinc yellow chromate fasteners.

For electrical evaluation of the integral drive motor brake, the manual lists 15–25 ohms across the yellow and brown brake leads with the battery and drive motor cables disconnected.
