JLG G6-42A / G9-43A / G10-43A Telehandler Service Manual, 2006–2012 (P/N 31200151)
244 Pages • 1 Printable PDF (English) • Download
JLG Models Covered & Key Technical Specifications
Models: G6-42A, G9-43A, G10-43A
Sub-models / Variants: Turbo, Naturally Aspirated, Enclosed Cab, Open Cab, G10-43A with Outriggers
Model Years: 2006–2012 (2006, 2007, 2008, 2009, 2010, 2011, 2012)
Serial Numbers: G6-42A (Before S/N 0160007869, S/N 0160007869 thru 0160040677, S/N 0160040678 & After), G9-43A (Before S/N 0160007868, S/N 016007868 thru 0160040674 excluding 0160040468 & 0160040672, S/N 0160040675 & After including 0160040468 & 0160040672), G10-43A (S/N 016007868 thru 0160040674 excluding 0160040468 & 0160040672, S/N 0160040675 & After including 0160040468 & 0160040672)
Quick Switch Serial Breaks: G6-42A (Before S/N 0160037722, S/N 0160037722 & After), G9-43A/G10-43A (Before S/N 0160037671, S/N 0160037671 & After)
Axle Variants: G6-42A (Carraro front and rear axles Before S/N 0160000847; Dana axles S/N 0160000847 & After), G9-43A/G10-43A (Dana axles)
Cylinder Serial Breaks — G6-42A: Lift/Lower Cylinder (Before S/N 0160010497, S/N 0160010497 & After), Compensation Cylinder (Before S/N 0160008059, S/N 0160008059 & After), Frame Level Cylinder (Before S/N 0160000022, S/N 0160000022 & After)
Cylinder Serial Breaks — G9-43A/G10-43A: Tilt Cylinder (Before S/N 0160007142, S/N 0160007142 & After), Compensation Cylinder (Before S/N 0160007176, S/N 0160007176 & After)
Electrical Schematics — Section 9.5.2: G6-42A (S/N 0160011059 Thru 0160021194), G9-43A (S/N 0160011059 Thru 0160020822)
-
Engine Options: John Deere PE 4045D150 (G6-42A, Naturally Aspirated), John Deere PE 4045TF150 (G6-42A and G9-43A, Turbo), John Deere PE 4045TF270 (G6-42A, G9-43A and G10-43A), Perkins 1104-C 44T (G6-42A, G9-43A and G10-43A), Cummins QSB3.3 (G6-42A, G9-43A and G10-43A)
-
Engine Power Range: 80 HP to 100 HP
-
Transmission Options: Dana-Spicer T12000 transmission (G6-42A Before S/N 0160040678; G9-43A and G10-43A Before S/N 0160040675 excluding 0160040468 & 0160040672), ZF 4WG-92/98 powershift transmission (G6-42A S/N 0160040678 & After; G9-43A and G10-43A S/N 0160040675 & After including 0160040468 & 0160040672)
-
Transmission Capacities: 3.4 to 4.2 gallons
-
Hydraulic Reservoir Capacity: 20 to 23.3 gallons
-
Electrical System: 12V system, Group 31 battery, 65A or 105A alternator
-
Travel Speeds: 3.2 mph to 20.5 mph depending on gear and model
-
Fuel Tank Capacity: 38 gallons

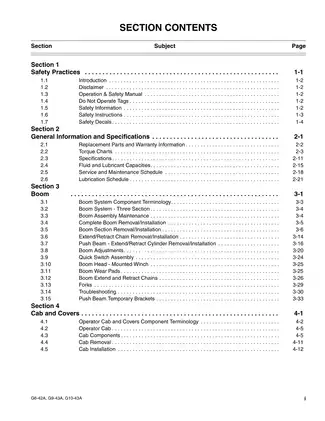

JLG Manual Features & Selected Content Preview
This service manual for the 2006–2012 JLG G6-42A, G9-43A and G10-43A telehandlers, P/N 31200151, revised August 9, 2012, covers machine maintenance, fault diagnosis and repair procedures across the documented engine and serial-number configurations.
Searchable Service Text and Schematic Detail
Finding procedures and circuit detail: Searchable service text and section/subsection bookmarks support navigation. Text search does not reliably cover every maintenance-chart or drawing label; small hydraulic and wiring labels require magnification for comfortable reading.
One printable English-language PDF contains 244 pages: 234 pages across the service sections, eight front-matter pages and two closing pages. Covers and blank pages are included in that total; the separately referenced component manuals are not included.
Boom, Drivetrain and Hydraulic Service
The following selected service topics outline the main repair areas. Additional sections cover fork inspection and windshield wiper/washer service.
-
Boom service: Assembly and section removal, extend/retract chain replacement and tension adjustment, wear-pad inspection, Quick Switch service and boom-mounted winch removal.
-
Cab and controls: Throttle and brake pedal removal, joystick assemblies, heater service, steering components and associated electrical circuits.
-
Drivetrain and brakes: Front and rear axle removal, drive-shaft inspection, transmission replacement, brake testing and bleeding, and manual park-brake release.
-
Engine installation: John Deere, Perkins and Cummins component identification, routine maintenance, engine removal and installation, cooling-system service and symptom-based troubleshooting.
-
Hydraulic repair: Circuit pressure checks, pump replacement, main control valve disassembly, steer select and outrigger valves, and hydraulic-cylinder inspection and resealing.
-
Electrical diagnosis: Fuse and relay locations, wiring and starting circuits, component tests, engine-specific diagnostic information and JLG hand-held analyzer menus.
Suited to experienced service technicians who can use lifting equipment and hydraulic and electrical test instruments.
Boom Chains, Wear Pads and Attachments
Step-by-step instructions cover complete boom removal and section disassembly. Separate procedures address chain replacement without removing the boom assembly, helping technicians determine whether the planned repair requires a full boom teardown.
The Temporary Extend Chain Bracket and Temporary Retract Chain Bracket drawings support locally fabricated aids for retaining the chains during push beam work. Quick Switch instructions distinguish serial-dependent mounting arrangements, while wear-pad procedures explain inspection and shimming.
Cab Controls, Steering and Brake Service
Open- and enclosed-cab removal instructions distinguish the lifting arrangements. A/C coverage includes electrical circuits; the steering orbitrol valve is not internally serviceable and must be replaced as a complete unit if defective.
Service brake valve replacement includes bleeding and pressure/function checks. The manual also distinguishes manual park-brake release and reset procedures by serial number.
Follow the manual’s precautions for raised booms, stored hydraulic pressure and lifting heavy assemblies.
Axles, Drive Shafts and Transmission Replacement
Front and rear axle removal and troubleshooting cover Carraro and Dana configurations, including planetary wheel-hub maintenance. Internal axle repair refers to separate component manuals; drive shafts are factory balanced, with damaged assemblies replaced.
Dana-Spicer T12000 and ZF 4WG-92/98 transmissions: Procedures cover removal, installation, engine drive plates, thermal bypass valves and fault diagnosis. Internal transmission overhaul requires the separate Dana-Spicer or ZF repair manual.
Engine, Fuel and Cooling-System Work
Engine component illustrations identify the fuel injection pumps and related equipment for each installation. Internal engine repair is referred to separate manufacturer manuals.
Radiator, thermostat, oil-cooler, fuel-tank, air-cleaner and exhaust procedures support engine service. Lubrication tables specify fluids such as Mobilfluid 424 by application, with separate cooling, transmission and hydraulic-system capacities.
Service references include SAE and metric fastener torque charts, hydraulic-hose torque charts, and O-ring face-seal and JIC fitting data.
Hydraulic Circuits, Control Valves and Cylinders
The G6-42A Hydraulic Schematic and G9-43A/G10-43A Hydraulic Schematic accompany model- and serial-specific pressure-check tables. These help identify the matching test circuit when investigating lift, tilt, steering or outrigger faults.
Main control valve instructions cover section disassembly and reassembly, including the optional auxiliary-hydraulic section. Steer select and G10-43A outrigger control valves, implement-pump replacement and hydraulic-cylinder service include the compensation cylinder. Internal implement-pump repair is referred to a JLG distributor.
Cylinder-rod surface damage can cause seal failure. Disturbing the main control valve’s preset relief settings alters circuit pressure and requires recalibration or a new relief valve.
Starting Circuits, Analyzer Menus and Fault Codes
Fuse and relay locations and Start Circuit diagrams distinguish the engine installations. The Variable Displacement Pump Schematic and JLG hand-held analyzer menus support pump-control diagnosis on later G9-43A/G10-43A configurations.
Pump-control menus display engine speed and torque alongside commanded and actual anti-stall solenoid current. Analyzer diagrams also show joystick settings and calibration screens; available screens depend on machine configuration.
Engine diagnostics: Cummins tables list fault codes, SPN/FMI identifiers and warning lamps. Perkins coverage explains warning and shutdown indicators, while John Deere engine electrical troubleshooting is referred to a separate manual.
Joystick DTC tables address machine-control faults on the later G9-43A/G10-43A configurations, including affected functions and calibration-related faults.
A Sample of Boom Clearance and Chain Wear Limits
Wear-pad setup specifies total boom-section clearance of 0.070–0.130 in in both horizontal and vertical directions for the covered models.
Boom-chain inspection uses a replacement limit of 3% elongation against normal chain length. The measurement applies to the section traveling over the sheaves; the less-flexed chain ends can give misleading results.
