2003–2007 JLG SkyTrak 8042, 10042, 10054 Legacy Telehandler Service Manual (P/N 8990396 C)

JLG publication 8990396 C, issued February 2007, covers the 2003–2007 SkyTrak 8042, 10042, and 10054 Legacy-series telescopic material handlers in open and optional enclosed cab configurations.

• Boom repair: Boom-section removal and installation, chain inspection and tension adjustment, wear-pad replacement, and quick attach assembly service.

• Cab and controls: Cab removal and installation, steering-column and joystick replacement, throttle controls, and optional heater, defroster, and wiper components.

• Cummins engine service: Separate sections for the 4BT3.9/4BTA3.9 and QSB4.5T, covering routine maintenance, engine replacement, cooling, fuel systems, and troubleshooting.

• ZF drivetrain and brakes: Transmission and axle removal and installation, drive-shaft service, wet-disc brake gap inspections, and drivetrain troubleshooting charts.

• Hydraulic diagnosis: Model-specific pressure and flowmeter test charts, pump testing, valve service, hydraulic cylinder repair, and the Four-Wheel Steer Indexing procedure.

• Electrical fault tracing: Serial-specific wiring diagrams, connector and wire-code legends, starting and charging circuits, and forward/reverse gear-selection troubleshooting.

• Stabil-TRAK and interlocks: System tests, relay and solenoid diagnosis, hydraulic operating-mode diagrams, and 10054 boom/outrigger interlock troubleshooting.

Written for service technicians, this manual serves experienced mechanics and provides step-by-step procedures for less experienced technicians; appropriate training and machine-operation knowledge remain necessary.

Boom Sections, Chains, and Wear Pads

Separate procedures follow the three-section booms on the 8042 and 10042 and the four-section assembly on the 10054. The latter has dedicated inner and intermediate chain tension adjustments and hose carrier assembly replacement instructions.

Chain inspection addresses elongation, cracked plates, and damaged pins. Component views show wear-pad and shim locations, with separate removal and installation procedures for the quick attach assembly.

Engine Cooling and Fuel-System Service

The Cummins sections cover thermostat replacement, radiator and oil-cooler service, fuel lift-pump testing, fuel-system venting, and fuel injector operation and replacement. Engine coupler procedures accompany engine removal and installation.

Engine repair scope: These sections cover routine maintenance, replacement, and troubleshooting. Internal engine disassembly and overhaul require the separate Cummins engine service documentation.

ZF Transmission, Axles, and Brakes

The ZF 4 WG-98 TC section provides maintenance, removal and installation, common-fault charts, and checks after transmission replacement. Internal transmission repair and detailed internal schematics are referred to separate ZF publications.

Axle coverage explains the planetary wheel ends and internal wet-disc brakes, with brake disk gap inspections and axle replacement procedures. Internal axle, differential, and wheel-end overhaul instructions are in separate ZF axle manuals.

The transmission section flags oil-cooler contamination after a failure and warns that excessive back-flushing pressure can damage the cooler or radiator.

Hydraulic Tests and Cylinder Repair

Model-specific test charts identify test ports, gauge requirements, operating conditions, and pressure readings. The diagnostic equipment includes pressure test kit 7133413 and hydraulic flowmeter kit 1321107.

Cylinder sections cover disassembly, seal inspection, and assembly for boom, frame-sway, and Stabil-TRAK cylinders. Steering diagnosis includes the Four-Wheel Steer Indexing procedure.

Counterbalance-valve warnings explain why cartridges disabled for emergency boom lowering or subjected to unauthorized adjustment require replacement: altered holding characteristics can compromise load control.

Review the manual’s raised-boom support, hydraulic-pressure relief, and lifting precautions before service.

Serial-Specific Wiring and Stabil-TRAK Tests

Named drawings include the 8042 Cab Harness & Engine Harness Electrical Schematic and 10054 Logic Harness & Boom Extend Interlock Harness Electrical Schematic. Separate Wiper/Washer & Heater Harness schematics address cab options.

For the 10054 interlock, diagnosis distinguishes S/N 13198–17984 from 17985–19987 and 0160002332 & After. These serial-specific drawings help technicians select the correct relay circuit before tracing a boom-extension fault.

Stabil-TRAK hydraulic drawings distinguish FREE PIVOT, SLOW PIVOT, and LOCKED modes. Extend Interlock Mode diagrams and troubleshooting symptom charts relate outrigger conditions to boom operation.

A Preview of Hydraulic Capacities and Wheel Fastener Data

These figures are a small selection of the capacity and fastener specifications in the manual. Hydraulic system capacity is 57.5 gal for the 8042 and 64 gal for the 10042/10054; reservoir capacity is 32.2 gal. The tables distinguish total system volume from reservoir volume.

Wheel lug nut torque is listed as 430–470 lb-ft (583–637 Nm) for all three models, alongside model-specific tire and wheel specifications.

Searchable Service Text, Bookmarks, and Diagram Detail

Text search and circuit detail: Service text and schematic legends support PDF search, with embedded bookmarks for section and procedure navigation. Small wiring labels require zooming; the final contact back cover has no searchable text.

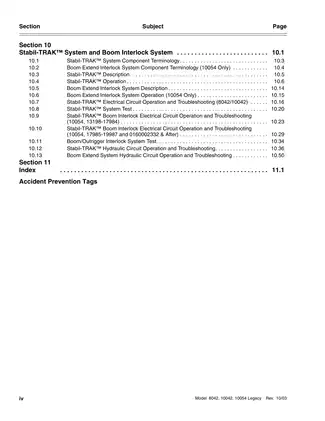

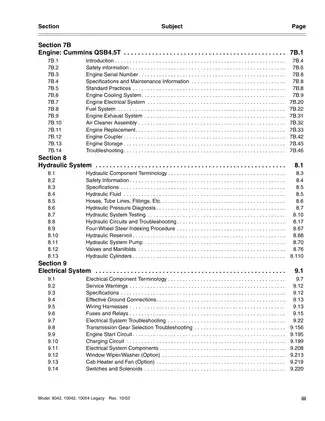

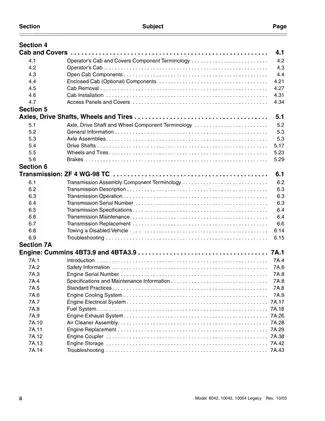

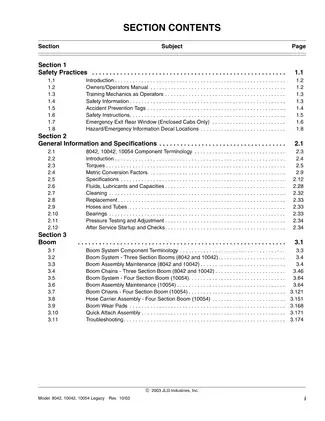

This single, printable, 906-page English PDF contains the front cover (1 page), opening contents (4), service sections (892), index (6), accident-prevention tags (2), and contact back cover (1). The service-section total already includes 27 intentionally blank pages.
