JCB 520-50, 525-50 & 525-50S Loadall Telehandler Service Manual, 2003–2013 (P/N 9803/3620)

JCB Loadall Service Manual P/N 9803/3620, Issue 9 covers the 520-50 (520 North American model) from serial 754001, 525-50 from 789308, and 525-50S from 1037581.

PDF Reading and Schematic Detail

Search, navigation and diagrams: PDF text search and embedded bookmarks are not available. Small wire, terminal and port labels in the electrical and hydraulic schematics require zooming.

One printable PDF contains 282 pages, including one cover page, one introduction page and 22 blank pages.

Drivetrain, Hydraulics and Machine Diagnostics

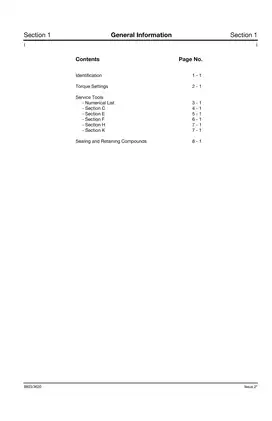

This is a selection of the manual's coverage; further reference material includes electrical connector-repair components and sealing and retaining compounds.

• Syncro Shuttle transmission: Hydraulic and mechanical fault finding, converter and gearbox removal, reverser overhaul, pressure/flow tests, stall testing and parking-brake diagnosis.

• SD40 and SD55 axles: Drive-head and limited-slip differential repair, crown-wheel/pinion adjustment, hub and driveshaft overhaul, propshaft replacement and oil-seal salvage procedures.

• Main hydraulics: Pump and control-valve service, MRV/ARV testing, hydraulic fault isolation, and lift, displacement, extension and tilt ram removal and repair.

• Electrics and load indicators: Electrical schematics, battery and charging tests, starter-circuit diagnosis, alternator and starter repair, plus SLI/LMI calibration and diagnostic charts.

• Brakes: Accumulator venting, bleeding, pressure testing, brake-leak isolation and charge/priority-valve service.

• Steering: Road-wheel realignment, steer-mode-valve checks, hydraulic steering-unit overhaul and system bleeding for the documented steering configurations.

• Boom, cab and maintenance: Cab removal, direct glazing, tank removal, boom wear-pad replacement, inner/outer boom removal, shovel alignment, service schedules and hose-burst protection-valve checks.

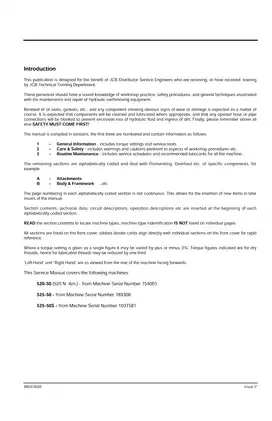

JCB prepared this manual for distributor service engineers receiving or having completed factory technical training; it assumes established workshop skills and experience with hydraulic earthmoving equipment.

Engine Builds and Repair Limits

Engine data distinguishes AA 50550, AR 50690 and RE builds for the 520-50 and 525-50 from the 525-50S's AK 50669 turbocharged, low-emission build. Maintenance instructions separate A-Series and R-Series fuel, lubrication and electrical arrangements.

Engine-speed setting and the 525-50S radiator fan-speed procedure are included. Internal engine and injection-system repair require separate engine manuals: 9806/0100 for AA builds, 9806/2140 for AR/AK builds, and 9806/2250 for RE builds.

Electrical Schematics and SLI/LMI Diagnosis

Relay/fuse identification and wire/harness numbering support the electrical tests. Circuit drawings distinguish permanent all-wheel steer, the 3-mode steer option and Type R engine builds.

Model-specific load charts, fault codes and diagnostic flowcharts accompany display-box tests, transducer tests, harness continuity/short-circuit checks and transducer replacement. Together, these references let a technician isolate load-indicator faults among the display, axle transducer and machine harness. North American machines normally have neither indicator; the later LMI display cannot replace an earlier SLI display.

Transmission Testing and Axle Adjustment

Transmission test-point references distinguish mainline, forward/reverse clutch, converter inlet/outlet, pump, cooler-flow and lubrication checks. Troubleshooting links pressure, flow, overheating, noise and gear-selection symptoms to further inspection.

Step-by-step disassembly and assembly instructions extend into the reverser and axle drive heads. The SD40/SD55 procedures warn that excessive pinion rolling torque distorts the collapsible spacer, making replacement necessary.

Hydraulic Pump, Valve and Ram Service

The pump section separates external-leak resealing from low output that cannot be corrected at the relief valve, for which it specifies pump replacement. Replacing individual gears, bearings or housings is not presented as a lasting repair. Valve-block instructions identify the damage risk from returning half-motor spools to incorrect bores.

Hydraulic schematics distinguish permanent all-wheel steer and 3-mode steer, including Q-Fit carriage locking and optional hitch circuits. The oil cooler, hydraulic cooling fan and fan motor are identified as 525-50S-only equipment.

Brake and Steering Fault Isolation

Residual-pressure diagnosis connects brake drag with hydraulic-tank cap venting and restricted return lines. The tank uses a screw-fitting cap up to serial 789471 and a bayonet-fitting cap after that serial. The foot brake valve is replacement-only, with dismantling prohibited.

Steering documentation explains the 3-mode system's two-wheel, four-wheel and crab-steer circuits. It also covers solenoid checks and Danfoss steering-unit assembly details. There are no standalone Attachments or Controls chapters; attachment coverage appears in maintenance and the hydraulic circuits.

Workshop References and Tool Preparation

Service references provide component/general torque tables, approved fluids and capacities, electrical test values, ram dimensions, hydraulic/transmission pressure and flow data, axle end-float/preload settings, wear limits and SLI/LMI adjustments. Maintenance schedules span the powertrain, hydraulics, brakes, steering, electrics, boom, cab and attachments, and flag jobs reserved for specialists.

Tool references include hydraulic pressure kit 892/00253, SLI test box 892/00905, transmission end-float tool 892/00295, converter alignment bar 892/00893, and 2/4-wheel-drive clutch pressure adapter/clamp 993/59300. Dimensioned drawings for a locally fabricated Syncro Shuttle trolley-jack fixture support preparation for gearbox removal and replacement.

Repair preparation addresses secure machine support, boom safety-strut use, electrical isolation, and discharge of residual hydraulic, tank and brake-accumulator pressure.

Selected Boom Wear-Pad Limits

The front boom side-pad inspection gives a replacement threshold below 5 mm (0.20 in) thickness for pads A and B. The replacement section specifies maximum total front and rear pad clearance of 1.5 mm (0.05 in), measured side to side or top to bottom.
