JCB JS110, JS130, JS150LC Excavator Service Manual 1994–1997 (P/N 9803/6100)

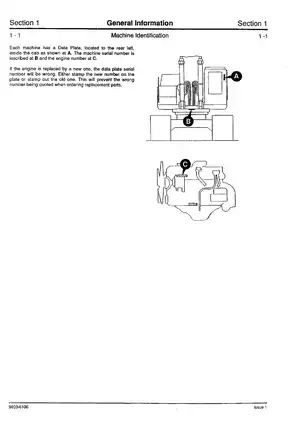

JCB factory Service Manual P/N 9803/6100 covers JS110, JS130, and JS150LC excavators. This edition combines Issue 1 base material with revised sheets marked through Issue 4, including separate hydraulic layouts for earlier and later machine builds.

PDF Search, Navigation and Diagram Detail

Search and diagram access: PDF text search is unavailable. Two file-part bookmarks provide limited navigation rather than chapter-by-chapter access. Small wiring labels require enlargement, and some wire-color codes remain difficult to distinguish.

One printable, English-language 316-page PDF, including the original cover and 14 blank pages within that total.

Hydraulic, Drivetrain and Control-System Work

The following selected coverage highlights outline the main workshop content. Further topics include sealing compounds and coolant-mixture guidance.

• Hydraulic pumps and valves: Pump and regulator teardown, inspection and assembly, two-piece control-valve repair, relief-valve service, fault finding, and pressure-testing procedures.

• Hydraulic actuators: Rotary-coupling repair, model-specific swing-motor overhaul, servo hand-controller service, and boom, dipper, and bucket ram disassembly and seal replacement.

• Track and swing drives: Track-gearbox removal and replacement, track-motor bleeding, model-specific gearbox overhaul, parking-brake inspection, and component wear criteria.

• Undercarriage: Idler/recoil-unit removal and replacement, grease-cylinder repair, drive-sprocket replacement, and top- and bottom-roller overhaul with wear limits.

• Electrical systems: Battery specific-gravity and high-rate discharge tests, Systems Control Monitor circuitry, controller plug-pin connections, monitor/PCB replacement, and wiring diagrams.

• Maintenance and attachments: Lubrication schedules, hydraulic filter and strainer service, track adjustment, gearbox oil service, fuel-system bleeding, rockbreaker flow calibration, and hydraulic-system flushing.

This workshop-level repair reference is suited to experienced technicians and rebuild shops with hydraulic test equipment, electrical measuring instruments, presses, pullers, and suitable lifting equipment.

Hydraulic Diagnosis and Ram Repair

Model-specific test data and inspection limits provide factory baseline parameters for assessing equipment condition. Hydraulic fault-finding tables connect symptoms such as low pump output, abnormal noise, boom or dipper drift, and excessive swing overrun with possible causes and checks.

Pump and regulator procedures include internal inspection and checks after installation. The regulator is performance-matched to the pump; its teardown requires the necessary adjustment and checking equipment.

The ram chapter distinguishes the different boom and dipper arrangements and identifies the revised wiper-seal builds. Unprotected piston-rod threads can damage internal seals during assembly, while interrupted piston-head seal pressing can deform the seal.

Review the manufacturer's pressure-release and heavy-lift warnings before hydraulic teardown or drivetrain disassembly.

Serial-Specific Circuits and Electrical Diagnosis

Earlier machines use mechanical track actuation; later hydraulic layouts add servo track controls. The electrical section identifies corresponding changes to sealed throttle-motor and swing-brake pressure-switch connectors. These distinctions help select the appropriate schematic, connector detail, and seal arrangement.

Electrical reference material explains model-selection inputs, throttle-motor relay control, proportional-solenoid current detection, tachometer input, temperature and fuel sensors, display drivers, buzzer logic, and service indicators.

Illustrations include the SMCU-1 Controller Block Diagram, Monitor Display Block Diagram, Circuit Diagram JS110/130, Circuit Diagram JS150LC, and four early/late hydraulic circuit schematics with component keys.

Gearbox and Undercarriage Scope

The JS150LC track-gearbox chapter describes selective fitting, but its distance-piece and thrust-washer selection procedures are left unfinished. Some illustrated special tools for this gearbox also lack dimensions.

Recoil-unit coverage includes removal and replacement. Internal recoil-unit repair is excluded because the assembly has no serviceable parts.

Workshop Tools and Repair Precautions

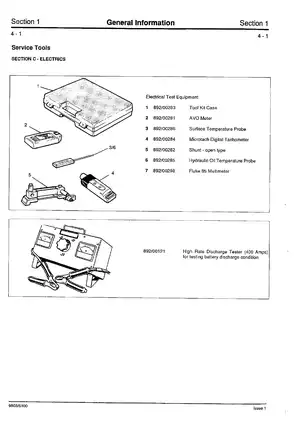

The service-tool section identifies AVO meter 892/00281, Fluke 85 multimeter 892/00298, pressure gauges 892/00279 and 892/00346, hand pump 892/00223, and test probe 892/00706. Ram piston-head nut work uses rig assembly 993/99525.

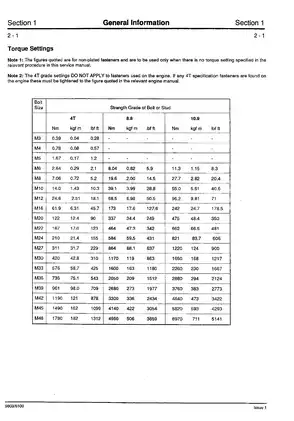

Dimensioned fabrication drawings cover swing-motor seal and bearing tools, rotary-coupling tools, track-brake and gearbox jigs, seal protectors, and ram hardware. Component-specific tables provide torque settings, pump and regulator inspection criteria, approved fluids, capacities, and undercarriage wear limits.

Arc-welding precautions address damage to the control computer and the risk of an incorrect welding return path damaging the slew ring or pivot pins and bushings.

Isuzu Engine Coverage

The Isuzu 4BD1 turbo engine material covers routine maintenance and technical data for the model-specific builds identified above. Internal engine overhaul requires the separate engine service manual, Publication No. 9803/6910, which is not included.

Preview: Sensor Resistance and Swing-Brake Wear Data

The Systems Control Monitor section lists temperature-sensor resistance at 455 ohms at 10°C and 16.5 ohms at 100°C, alongside the associated input circuitry.

For JS150LC swing-motor brake inspection, the friction-plate table gives a standard thickness of 4.0 mm and a recommended renewal value of 3.6 mm.
