JCB Mini CX Backhoe Loader Service Manual 2004–2008 (P/N 9803/9340-8)

JCB Service publication P/N 9803/9340-8, copyrighted 2004, covers Mini CX and Mini CX 4x4 from serial M1042000, with separate material for Series 1 and Series 2 machines.

Text Search, Diagram Detail and PDF Files

Search and diagram navigation: Text search is available in all files, although some electrical circuit and harness labels are not searchable. Each PDF has two basic part bookmarks rather than topic-level navigation. Small electrical and hydraulic schematic labels require zooming.

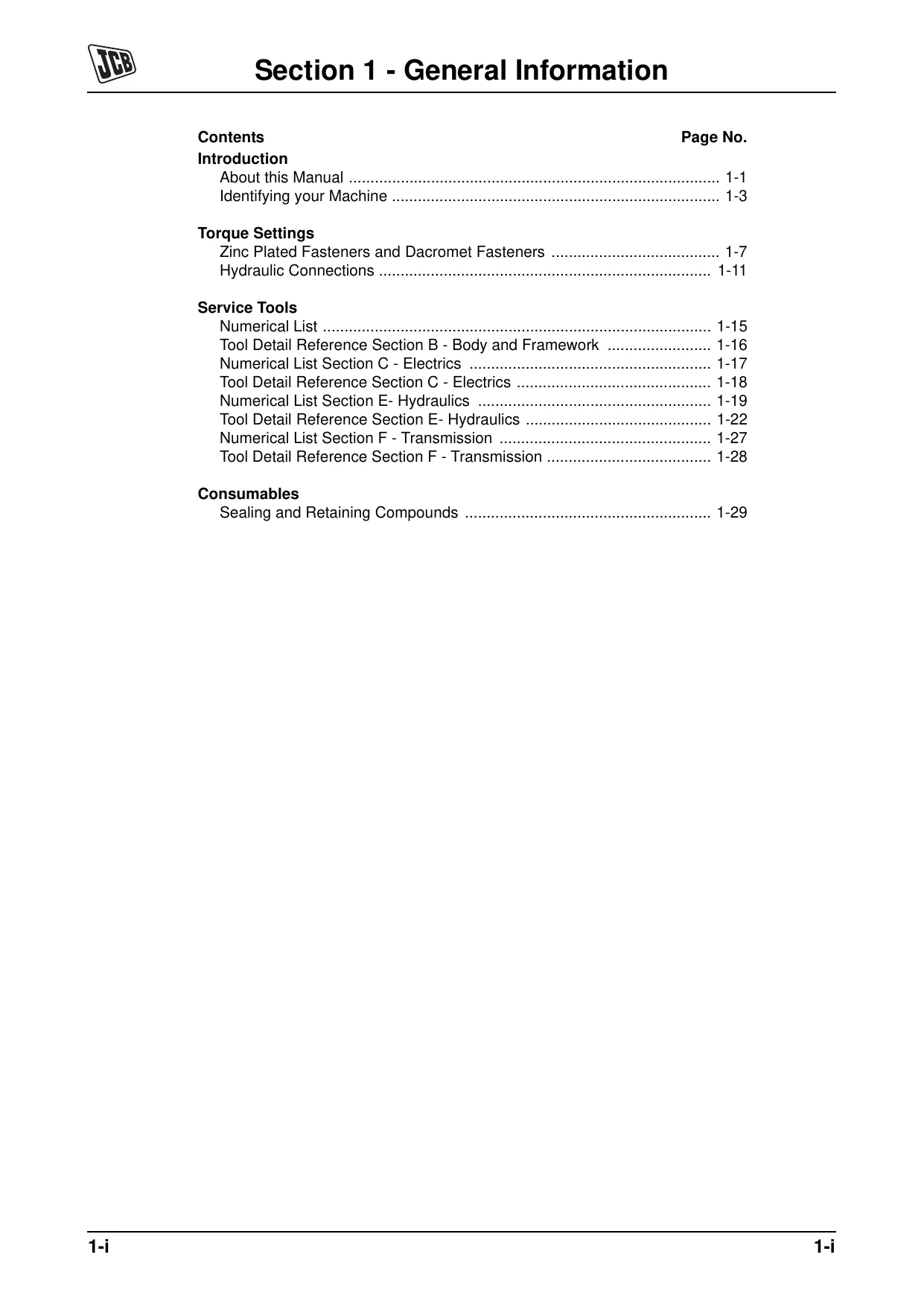

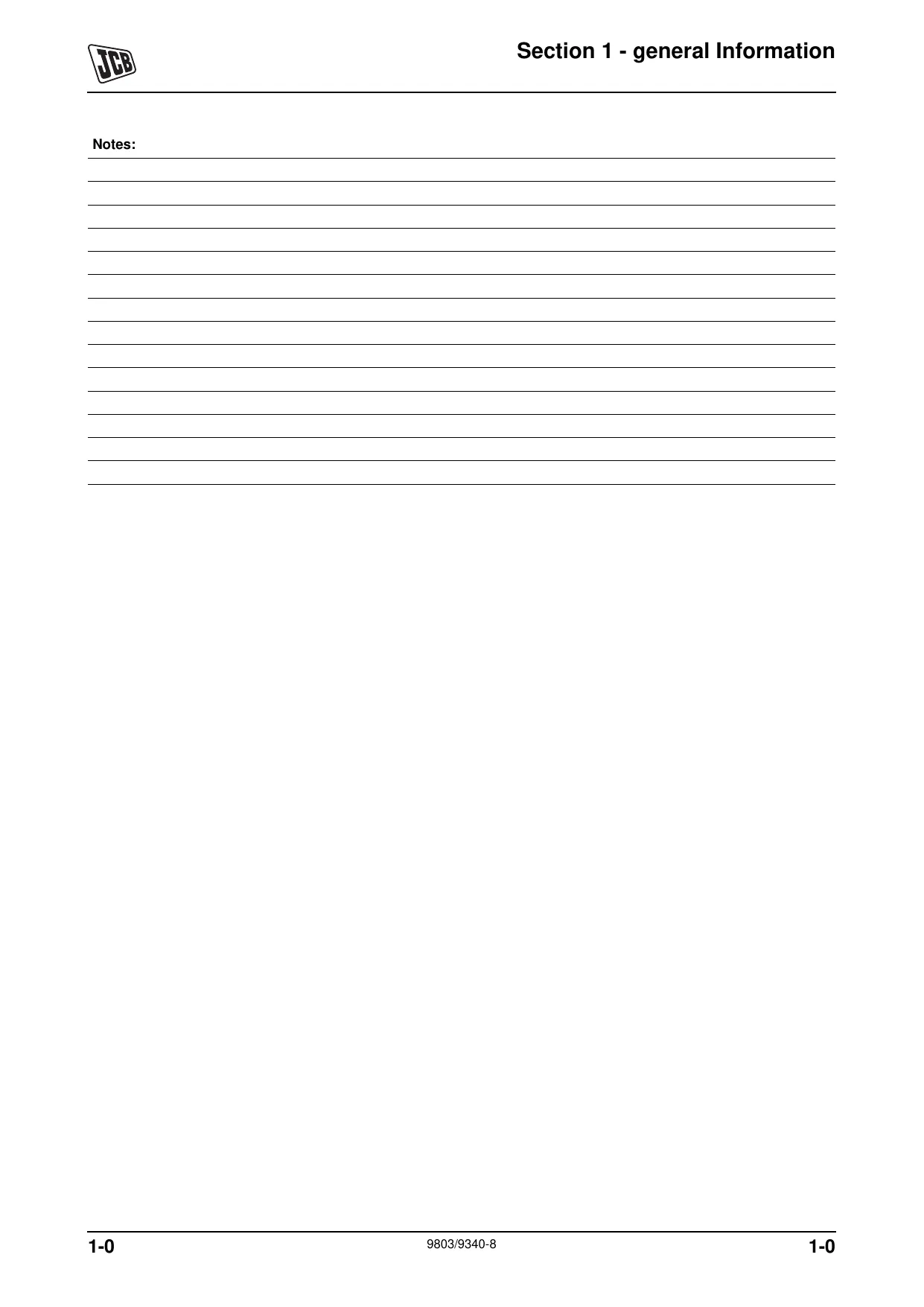

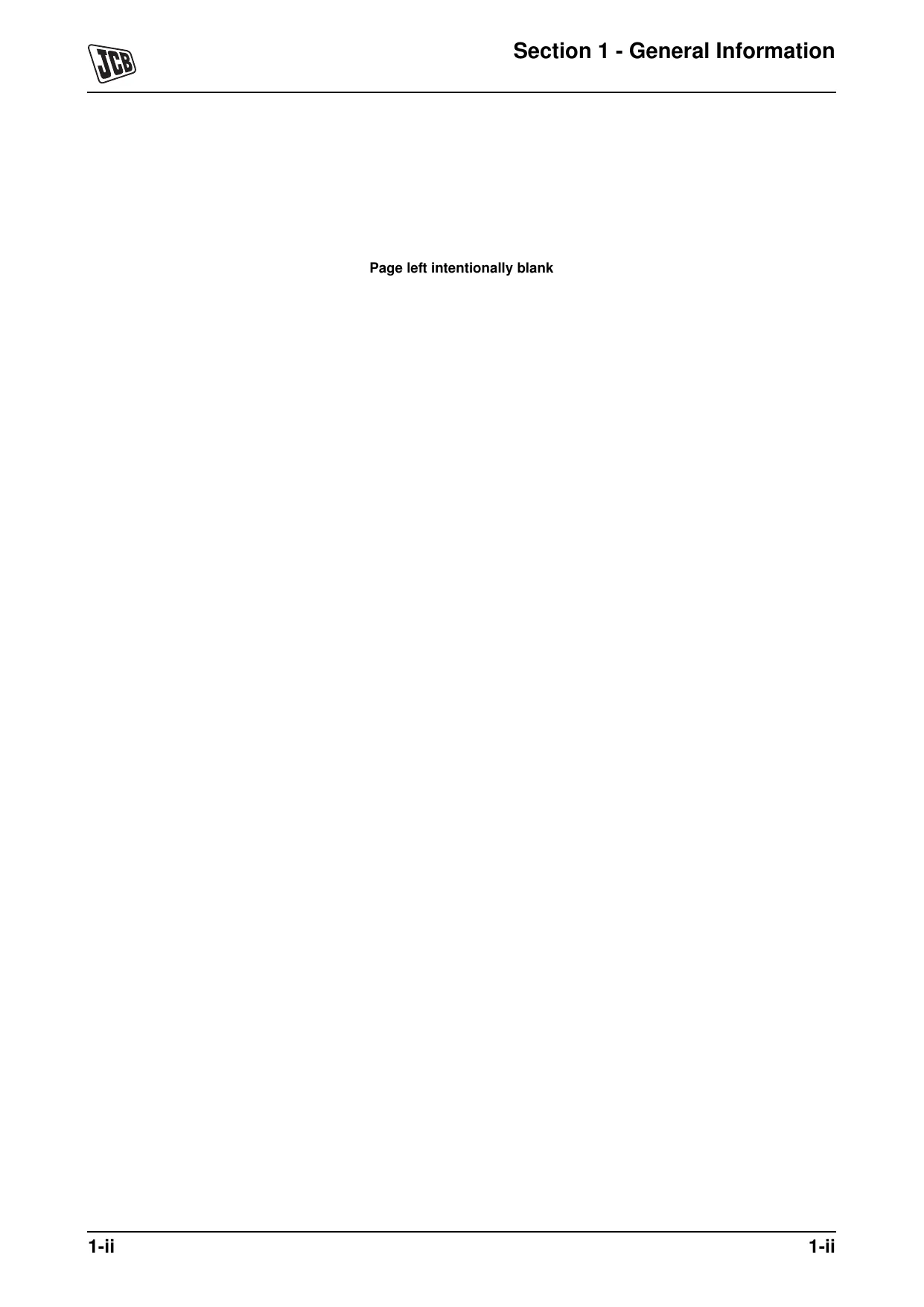

The ZIP contains one 378-page manual divided into 12 printable PDFs: a two-page opening file and 11 section files totaling 376 pages. The total includes 12 cover pages, 12 notes pages, 12 contents pages and 31 pages marked intentionally blank.

Hydrostatic Drive, Working Hydraulics and Chassis Service

The following selected contents outline the main workshop coverage. Additional topics include quick-release coupling care and general-purpose and 4-in-1 shovel maintenance.

• Machine configurations: Series 1 and Series 2 systems, 2WD and 4WD hydrostatic layouts, JCB and ISO backhoe controls, and center-mount and sideshift kingposts.

• Hydrostatic drive: Transmission-pump service and diagnosis, axle-drive motor repair, and wheel-motor brake, bearing-support, roller-block, valve and seal procedures.

• Working hydraulics: Loader and excavator valve repair, spool service, auxiliary valves, relief-pressure testing, steering-priority checks and hydraulic-cylinder resealing.

• Chassis, brakes and steering: Loader arm, dipper, boom and kingpost removal, axle and hub service, parking-brake repair, steering-unit overhaul and power-track-rod repair.

• Electrical diagnosis: Multimeter test methods, model-specific fuse and relay data, harness drawings, and early/later Series 1 and Series 2 circuit diagrams.

• Maintenance and engine data: Service schedules, structural inspections, grease maps, fluid specifications and serial-specific engine reference data; internal engine overhaul requires separate manuals.

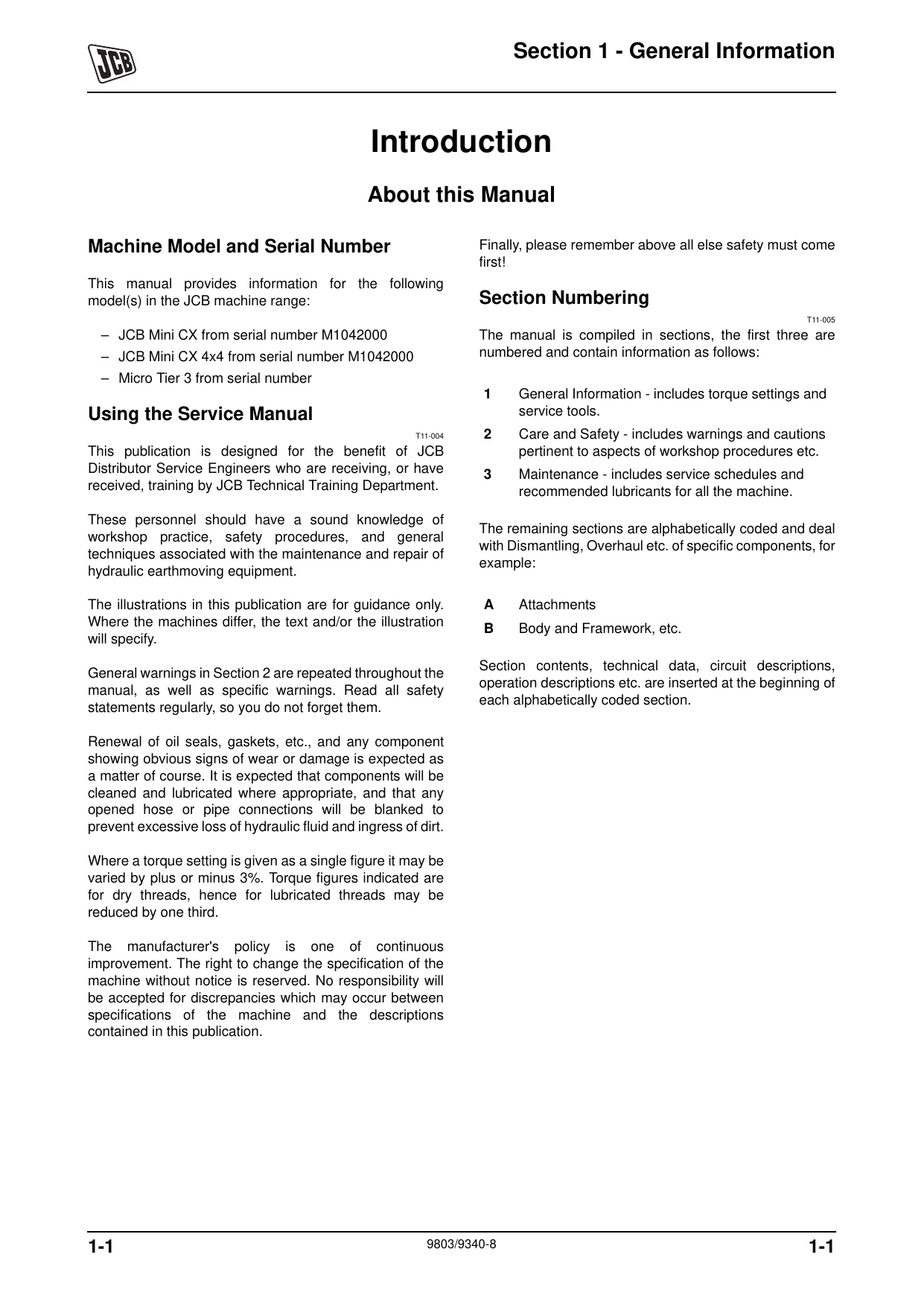

Written for JCB distributor service engineers receiving or having completed JCB technical training, this publication assumes sound workshop practice and experience maintaining and repairing hydraulic earthmoving equipment.

Machine Identification and Routine Maintenance

The identification pages distinguish Standard/High-flow and canopy/cab builds and show separate machine, chassis, engine and hydraulic-pump identifiers. These details help the technician confirm machine and major-unit identity before selecting parts or test data.

Service schedules cover pre-start checks, scheduled service points and final functional inspections. ROPS/FOPS and seat-belt checks, loader-arm safety-strut use and damage inspections are included.

Separate grease maps identify loader, front-axle, backhoe and stabilizer points for Mini CX and Mini CX 4x4. System-specific maintenance covers the engine, cooling, fuel, hydraulics, slew gearbox, rear axle, tires and wheels.

Fluid tables distinguish the engine-oil requirements across the engine build change. Fuel guidance also explains the additional maintenance associated with approved B5 biodiesel use on Tier 3 engines.

Hydrostatic Transmission Diagnosis and Pump Repair

The operating descriptions explain the Series 1 mechanically controlled pump, Series 2 solenoid/hydraulic control, the 2WD axle motor and 4WD wheel motors. Neutral, forward and reverse circuits are separated by configuration.

Troubleshooting connects symptoms such as neutral creep, weak drive and overheating with component checks. Series 1 neutral adjustment, motor-speed and leakage tests, pump pressure points and high-pressure relief testing support fault isolation before major components are dismantled.

Pump procedures: Step-by-step instructions cover Series 1 transmission-pump dismantling and reassembly. Series 2 service addresses drive-shaft and charge-pump seals, control-piston cover seals, relief valves, pressure cut-off and control-unit work. Service-pump repair, drive-coupling checks and separate start-up procedures are also included.

Drawings include Pump Pressure Test Points - Series 2 Machines. The towing/winching section explains how unreleased hydrostatic braking can damage the transmission pumps.

Control Valves and Hydraulic Cylinders

Loader/excavator troubleshooting addresses weak or slow services, sticking spools, cylinder creep and overheating. Valve procedures cover removal, section alignment, matched spools, stabilizer spools and the excavator auxiliary valve.

Pressure-testing material separates in-situ MRV testing from bench ARV testing. Steering-priority and loader change-over valve service accompanies the hydraulic layouts, including Series 2 Machines, ISO (+) pattern controls - 4WD.

Typical and slew-cylinder procedures distinguish their piston retention and sealing arrangements. The manual warns that attempting piston-head removal with the retaining dowel or set screw still fitted can damage both the head and rod.

Structure, Axles, Parking Brake and Steering

Body and framework procedures cover lifting support, pivot-pin work, hose identification and hydraulic bleeding during loader-arm, dipper, boom and kingpost removal and replacement.

Axle coverage includes removal, front-hub bearings and steering swivels. Parking-brake instructions address caliper dismantling, testing and cable adjustment; steering chapters cover the hydraulic steering unit and power track rod.

Raised loader or backhoe structures require positive support and suitable lifting equipment, and trapped hydraulic pressure must be vented before lines or components are opened.

Electrical Tests and Wiring Diagrams

Electrical test methods cover voltage, resistance, continuity, frequency, diode wires and battery condition. Fuse and relay information is separated between Mini CX and Mini CX 4x4.

Representative drawings include Main Harness Series 1 Machines, Canopy Harnesses, Early Series 1 Machines and Series 2 Machines, alongside later Series 1 circuits. Wire-number and harness-identification guidance connects the drawings with the machine wiring.

Workshop Reference Data and Special Tools

Fastener tables cover UNF Grade S, metric grades 8.8, 10.9 and 12.9, rivet-nut hardware and internal-hex cap screws. Hydraulic connection data distinguishes O-ring face seal, SAE, BSP hose, bonded-washer adapter and torque-stop hose systems.

Related tables provide pressure and flow specifications, cylinder data, fluid capacities, tire information, electrical ratings, sealants and inspection limits.

JCB tool references include pressure-test kit 892/00253, A.R.V. test block 892/00252, flow monitoring unit 892/00268, piston-seal assembly tool 892/01027, and rod-seal protection sleeves 892/01017 and 892/01018.

Engine Reference and Overhaul Limits

Engine data distinguishes KD 103-10 through machine 1042315 from 403C-11 from machine 1042316, with general specifications, speeds, fuel timing, cooling, oil-pressure and valve-clearance data.

Internal engine overhaul is outside this publication. Further engine repair information is directed to JCB Engine Service Manual 9806/2100 for the earlier engine and 9806/2190 for the later engine; these separate manuals are not included.

Selected Valve-Clearance and Idle-Speed Data

For both KD 103-10 and 403C-11 engines, the specified cold inlet and exhaust valve clearance is 0.2 mm (0.0078 in).

The 403C-11 idle-speed data distinguishes Series 1 machines at 960 rpm from Series 2 machines at 1050 rpm.
