Komatsu D31/D37/D39 EX/PX-21 Bulldozer Shop Manual, 2007 (P/N SEBM035005)
745 Pages • 1 Printable PDF (English) • Download
Komatsu Models Covered & Key Technical Specifications
Models: D31EX-21, D31PX-21, D37EX-21, D37PX-21, D39EX-21, D39PX-21
Models & Model Codes:
D31EX-21 — EMMS model code: 31; EX specification code: 02
D31PX-21 — EMMS model code: 31; PX specification code: 01
D37EX-21 — EMMS model code: 37; EX specification code: 02
D37PX-21 — EMMS model code: 37; PX specification code: 01
D39EX-21 — EMMS model code: 39; EX specification code: 02
D39PX-21 — EMMS model code: 39; PX specification code: 01
Sub-models / Variants: EX-21, PX-21, 400 mm Single shoe, 600 mm Single shoe, 600 mm Swamp shoe, 460 mm Single shoe, 635 mm Single shoe, 700 mm Swamp shoe
Model Year: 2007
Serial Numbers: D31EX-21 50501 and up, D31PX-21 50501 and up, D37EX-21 5501 and up, D37PX-21 5501 and up, D39EX-21 1501 and up, D39PX-21 1501 and up
-
Engine model: Komatsu SAA4D102E-2-B diesel
-
Number of cylinders: 4
-
Piston displacement: 3.92 liters {3,920 cc}
-
Rated horsepower: 56–71 kW {75–95 HP} at 2,000–2,200 rpm
-
Transmission type: Hydrostatic transmission (HST), HPV63 + 63 tandem piston pump with KMV105 3-speed bent-axis motors (all listed models)
-
Final drive type: Planetary gear, 2-stage reduction, splash lubrication
-
Hydraulic pump type: Fix displacement external-gear type
-
Max. pump pressure: 20.6 MPa {210 kg/cm²}
-
Operating weight range (with power angle tiltdozer + ROPS cab/canopy): 7,130–9,200 kg
-
Travel speed: 0.8–8.5 km/h (variable shift mode); quick shift mode: 3.4/5.6/8.5 km/h forward, 4.1/6.5/8.5 km/h reverse
Komatsu Manual Features & Selected Content Preview
Komatsu shop manual SEBM035005, printed in Japan in November 2007, covers the 2007 D31EX-21, D31PX-21, D37EX-21, D37PX-21, D39EX-21, and D39PX-21 bulldozers with the SAA4D102E-2-B diesel engine.
PDF Search, Bookmarks, and Circuit Detail
Text search and diagram access: The main text is searchable, with embedded bookmarks for chapters and individual topics. Labels within the large circuit sheets are not searchable. Small connector, pin, and wire-code labels on the checked circuit sheets are readable when enlarged.

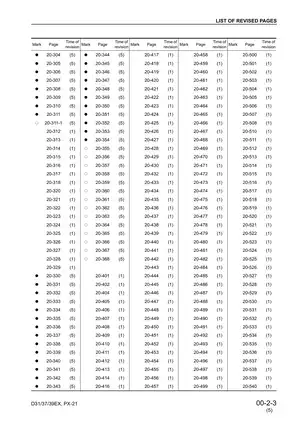

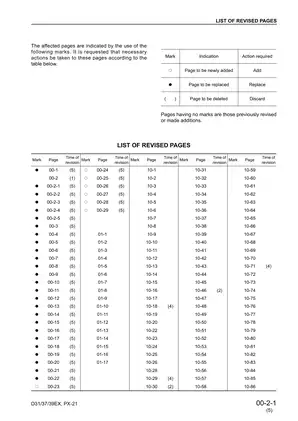

The download is one printable English PDF with 745 pages, including the cover, revision lists, circuit sheets, and seven blank pages.
HST Controls, Fault Diagnosis, and Component Repair

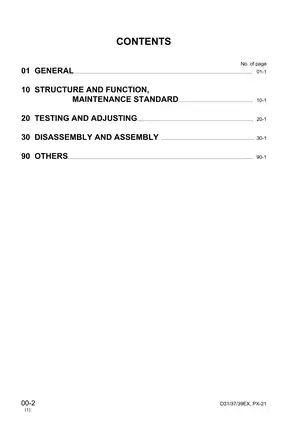

The following are selected contents, rather than a complete table of contents. Other topics include diode testing and emergency parking-brake release.
-
HST and steering: HPV63 + 63 pump and KMV105 motor operation, safety-suction and charge valves, parking-brake controls, pressure tests, solenoid-output checks, and travel-deviation testing.
-
EMMS service functions: Model and EX/PX setup, steering and brake potentiometer settings, HST pump initialization, engine and decelerator settings, fault history, real-time monitoring, and stall-test support.
-
Fault isolation: Displayed error-code diagnosis, electrical E-mode, hydraulic/mechanical H-mode, and engine S-mode, supported by connector locations, pin tables, T-branch adapter data, and circuit-specific test charts.
-
Major repairs: Step-by-step procedures for engine/HST pump unit removal, planetary final-drive overhaul, main control valve service, hydraulic-cylinder rebuilding, and idler, recoil-spring, track-roller, and carrier-roller work.
-
Work equipment and undercarriage: CLSS and PPC controls, blade and optional ripper circuits, pressure and cylinder-leakage tests, hydraulic bleeding, blade center-ball adjustment, track tension, idler clearance, and wear limits.
-
Factory references: Hydraulic and electrical circuit sheets, eight general torque tables, component-specific tightening data, fluid and lubricant charts, assembly weights, standard values, repair limits, and allowable wear criteria.
The repair depth and need for hydraulic test equipment, electrical adapters, lifting gear, and special service tools make this volume suited to professional technicians and experienced heavy-equipment mechanics.
EX/PX Configurations and Hydraulic Differences
The tables separate EX and PX configurations, single-shoe and swamp-shoe undercarriages, standard and narrow blades, and D31/D37 versus D39 component requirements. Optional ripper equipment is identified for EX models; cab and canopy electrical, heater, wiper, and air-conditioning systems are distinguished where applicable.
The work-equipment pump is SAR(2)040 on D31/D37 machines and SAR(2)045 on D39 machines, helping prevent the larger model's pump data from being applied to the wrong machine.
Diagnostic Charts, EMMS Setup, and Wear Assessment
Electrical charts cover no-start and preheat faults, monitor functions, lighting, backup alarms, heaters, air conditioning, and wipers. Hydraulic/mechanical charts address no-travel, one-side travel, failed shifting, travel deviation, blade speed or drift, abnormal HST noise, and overheating. Engine charts cover starting, low power, smoke, oil pressure, cooling, noise, and vibration.
EMMS instructions identify the settings required after controller, pump, EPC valve, or potentiometer replacement. Dual-display monitoring allows left and right motor-speed signals to be compared during speed-sensor checks.
PM-Clinic measuring-point references and model-specific undercarriage inspection sheets support condition assessment. Their new-part dimensions and wear criteria help evaluate tracks, rollers, pins, and bushings before replacement decisions.
Engine, Cooling, and Hydraulic Repair Limits
Engine coverage includes boost, exhaust temperature and smoke, compression, blow-by, oil-pressure, valve-clearance, injection-timing, and fuel-bleeding procedures. Repair work covers injection-pump and cylinder-head removal and installation, front and rear crankshaft seals, and engine/HST pump assembly removal. Radiator, oil-cooler, and charge-air-cooler disassembly and assembly are also documented.
Internal engine overhaul requires the separate 102 Series Engine Shop Manual. Internal HST pump and motor overhaul is outside this volume, although their operation, testing, adjustment, and removal are covered.
Main control valve procedures distinguish serviceable components from assemblies that must remain intact, including the main relief and suction valves. Cylinder rebuilding covers blade lift, angle, and tilt cylinders.
Service Tools, Schematics, and Repair Cautions
Tool references include the 791T-265-1110 HST motor speed-sensor wrench, 791-427-1410 final-drive round-nut wrench, 791-685-8006 recoil-spring compressor, and 790-502-1003 hydraulic-cylinder repair stand. Sketches support local manufacture of idler and track-roller bushing tools.
Visual references include the HST hydraulic-equipment arrangement, HST pump and KMV105 motor section views, two-stage planetary final-drive views, CLSS operation diagrams, and system connector layouts. The circuit section contains two hydraulic sheets, four electrical sheets, and an air-conditioning circuit; fuse maps and AV, AVS, and AEX wire-code conventions support electrical tracing.
Using an impact wrench on the oil-cooler cleaning-cover bolt can break its pin; removing the cooler with that cover installed can let the pin damage the core. During final-drive assembly, an incompletely seated hub bearing can damage the mating floating-seal faces.
Before opening HST or work-equipment circuits, secure the machine and release residual hydraulic pressure. Track, recoil-spring, blade, and powertrain work requires rated lifting or pressing equipment; R134a recovery and charging is reserved for qualified personnel.
Selected Valve-Clearance and Track-Tension Specifications
For the covered SAA4D102E-2 engines, the standard-value tables list intake valve clearance at 0.25 mm and exhaust clearance at 0.51 mm at normal temperature.
The track-tension section specifies 20–30 mm clearance between a straight bar spanning the idler and carrier roller and the shoe grouser, with an illustration defining the measurement.
