1977–1988 Suzuki DT2, DT3.5, DT4, DT5, DT6, DT8, DT9.9, DT15, and DT15C Outboard Motor Service & Repair Manual

This service manual covers the listed 1977–1988 Suzuki DT-series two-stroke outboards. Repair information is organized by model group, with separate coverage for the DT15C's oil-injection system and ignition components.

Text search and wiring detail: An OCR text layer supports searches, although recognition errors affect some technical labels. Five PDF bookmarks open the model sections. Small wiring labels require zooming, and some of the smallest DT4 diagram labels remain difficult to distinguish.

• Power head repair: Removal and reinstallation, crankcase disassembly, piston and cylinder inspection, crankshaft checks, reed valve service, and reassembly.

• Fuel and lubrication: Mikuni carburetor tuning, diaphragm fuel pump service, and DT15C oil-pump bleeding and delivery checks.

• Ignition and charging: Breaker-point adjustment, CDI testing, throttle and spark-advance synchronization, magneto coil checks, and model-specific wiring diagrams.

• Cooling system: Water pump impeller replacement, water-passage inspection, and DT15C thermostat testing.

• Starting systems: Manual rewind starter rebuilding, overhead and gear-type starter variants, neutral-start cable adjustment, and electric starter repair.

• Lower unit: Gearcase overhaul, gear contact and backlash checks, propeller shaft shimming, seal replacement, and shift control linkage adjustment.

The material is suited to mechanics familiar with two-stroke outboard repair and electrical testing; press-together crankshaft disassembly requires experienced service personnel and appropriate shop equipment.

Mikuni Carburetors and DT15C Oil Injection

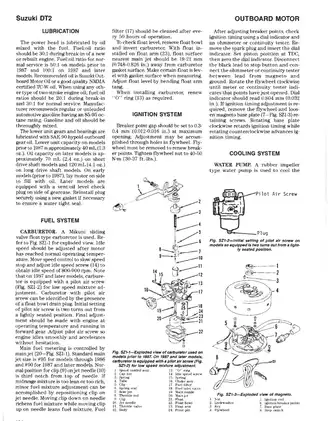

Carburetor coverage distinguishes the DT2's VM-11-10 sliding-valve unit from the BV-series carburetors and the B24-15/B24-18 units used on the larger twins. The DT6 and DT8 sections also distinguish short- and long-shaft jetting. These differences help match the adjustment data to the installed carburetor before tuning.

On DT9.9, DT15, and DT15C models, the diaphragm fuel pump is part of the carburetor assembly, and pump servicing is covered without carburetor removal. Inspection addresses diaphragm condition, damaged components, and airtight connections.

DT15C oil-injection coverage includes filter service, pump bleeding, and an output test using oil measuring gauge 09900-21602. The bleeding procedure addresses air introduced by oil-system removal or storage; inadequate oil delivery puts the power head at risk of damage.

Ignition Diagnosis and Electrical References

DT2 and DT3.5 sections cover breaker-point settings and ignition timing. The DT4 section explains electronically controlled advance, while the twin-cylinder sections address mechanical throttle and spark-advance synchronization.

Coil-resistance checks reference Suzuki pocket tester 09900-25002. DT15C diagnosis also specifies CDI tester 09930-99830 with lead 09930-88910, plus Stevens CD-77 peak-voltage testing and charging-rectifier checks.

Electrical references include the DT4 wiring diagram (Fig. SZ3-3) and the DT15C electric-start diagram with oil-level indication and an optional voltage regulator (Fig. SZ6-14). The DT15C peak-voltage chart (Fig. SZ6-18) identifies test connections and expected outputs.

Fuel-system and high-tension ignition work require suitable precautions and equipment. Work in a ventilated area and consult a marine technician if you lack the necessary diagnostic tools or experience.

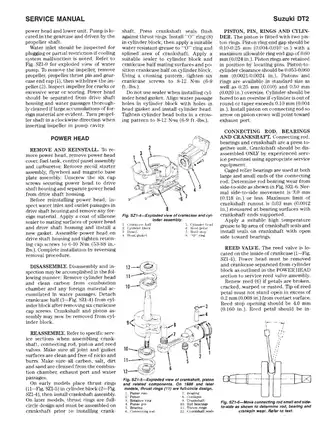

Power Head Inspection and Cooling Service

The engine sections provide component-specific tightening torques, piston clearances, ring wear limits, and connecting-rod and crankshaft inspection data. DT15C piston-to-cylinder clearance specifications are distinguished from those for the DT9.9 and DT15.

Reed-valve access also differs: DT2 and DT4 service involves opening the crankcase, while the other covered models use reed plates behind the intake manifold.

Water pump exploded views, including Fig. SZ6-21, identify the impeller, housing, and water-tube seals. The manual cautions against reverse shaft rotation after pump assembly, which can damage the rubber impeller. DT15C cooling coverage adds thermostat inspection and testing.

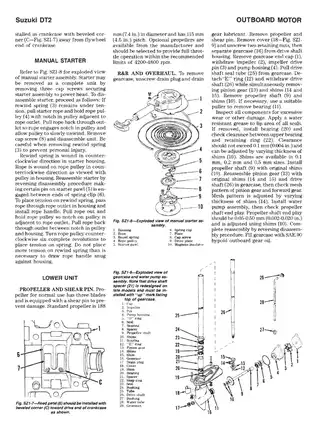

Starter Rebuilding and Gearcase Overhaul

Overhead and gear-type rewind starters have separate rebuilding instructions; the gear-type assembly is illustrated in Fig. SZ4-16. Electric starter coverage addresses commutator wear, brush limits, housing alignment, and bench testing before installation.

The lower-unit exploded view in Fig. SZ6-33 accompanies drive shaft and propeller shaft end-play adjustment. DT9.9/DT15/DT15C instructions include rechecking drive shaft end play after reverse-gear shimming, helping identify an altered gear setting before final assembly. Shift linkage adjustment and neutral-start cable alignment are covered separately.

PDF Sections and Page Count

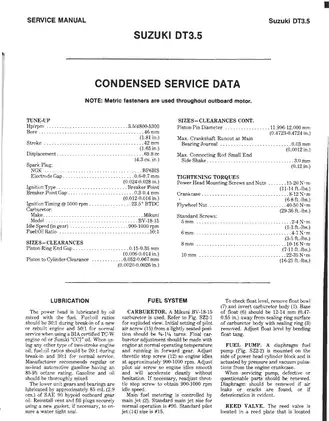

One printable, English-language PDF contains 30 pages total: DT2, 4 pages; DT3.5, 5 pages; DT4, 4 pages; DT5/DT6/DT8, 6 pages; and DT9.9/DT15/DT15C, 11 pages. The model-opening service-data pages are included in this total. There are no separate cover sheets or supplements.
