Suzuki DT75/DT85 2-Stroke Outboard Service Manual (1981–1992)

360 Pages • 1 Printable PDF (English) • Download

4.6starstarstarstarstar_half(5)
$13.48 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Suzuki Models Covered & Key Technical Specifications

Models: DT75, DT85

Models & Model Codes:

DT75 — DT75C, DT75TC, DT75CR, DT75MQ, DT75HQ, DT75CQ, DT75T

DT85 — DT85T, DT85TC, DT85CR, DT85CQ

Sub-models / Variants: DT75 QD, DT85 QD, DT75/85 VH Model, DT75/85 J Model (including U.S. J)

Model Years: 1981–1992 (1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992)

VH engine serial breaks (oil-level switch and Suzuki Monitor): DT75CR/DT75TC: early through engine No. 708058, late from No. 708059. DT85CR/DT85TC: early through engine No. 717214, late from No. 717215.

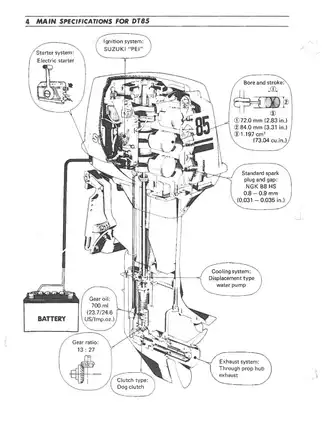

  • Engine displacement: 1197 cc (73.04 cu.in.)

  • Number of cylinders: 3

  • Bore: 84.0 mm (3.31 in.)

  • Stroke: 72.0 mm (2.83 in.)

  • Max power output: DT75: 75 HP (55.2 kW). DT85: 85 HP (62.5 kW).

  • Compression ratio: DT75 QD: 6.0:1. DT85 base and QD, DT85CR/DT85TC VH (Group 17), and J models: 6.5:1. DT75CR/DT75TC VH (Group 17) and VH models in Group 18: 6.0:1 for cylinder 1 and 6.5:1 for cylinders 2–3.

  • Operating RPM range: 4800–5500 RPM

  • Gear ratio: 2.08 (27/13)

  • Fuel type: Base DT85 and QD: 85–95 Octane gasoline. VH and J: unleaded, alcohol-free gasoline with at least 85 pump octane recommended.

  • Thermostat opening temperature: Base DT85, DT85 QD, and DT85 J: 40–44°C (104–111°F). DT75 QD, VH, and DT75 J: 48–52°C (118–126°F).

  • Standard spark plug: NGK B8HS

  • Gear oil capacity: 700 ml

Suzuki Manual Features & Selected Content Preview

This Suzuki service manual for DT75 and DT85 two-stroke outboards combines the DT85-family base chapters with QD, VH, and J supplements. The 1981–1992 listing includes model-specific supplements through the 1988 J models. Use the supplement for your configuration alongside the base chapters.

Finding Procedures and Reading Wiring Diagrams

Text search and diagrams: The PDF has searchable text and bookmarks for the main service groups and model supplements. Search can miss small labels on wiring diagrams. Zooming helps, though some wire and connector codes in the dense J-model diagrams remain hard to read.

The download is one printable English PDF with 360 pages, including the group index, 133 pages of base material, and 226 pages of model supplements.


Outboard Repair and Diagnostic Coverage

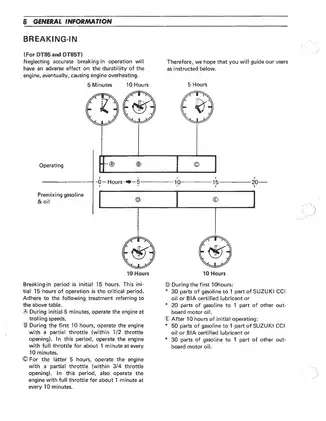

The selected topics below show the scope of the workshop coverage. The manual also includes break-in guidance and propeller selection.

  • Powerhead overhaul: Engine removal and disassembly, decarbonizing, cylinder and crankshaft inspection, piston, ring, and bearing checks, oil-seal replacement, and reassembly.

  • Fuel and oil injection: Mikuni B40-32 setup in the base chapters, three-carburetor synchronization, reed-valve and fuel-pump service, and model-specific oil-pump testing.

  • Cooling and lower unit: Coolant-circuit diagrams, thermostat testing, displacement-type water-pump service, gearcase teardown, gear shimming, tooth-contact and backlash checks, and propeller-shaft housing service.

  • Power trim, tilt, and steering: Swivel and steering disassembly, hydraulic circuit diagrams, pressure tests, bleeding, trim-unit and motor service, and VH tilt-aid coverage where fitted.

  • Ignition and warning systems: Starter and charging checks, PEI/CDI and J-model IC ignition, peak-voltage testing, Suzuki Monitor diagnostics, wire routing, and model-specific wiring diagrams.

  • Outboard setup and adjustments: Motor mounting, remote-control installation, throttle and shift cable setup, clutch push-rod adjustment, and final trim-tab adjustment.

Suzuki wrote the supplements primarily for experienced mechanics. Apprentices and DIY mechanics can also use them after reviewing the full manual. The procedures call for precision measuring tools, electrical testers, pullers, hydraulic gauges, and an outboard test tank where specified.

Choosing the Right Model Supplement

The base chapters cover DT85, DT85T, and DT85TC. The 1983 QD supplements cover DT75, DT75C, and DT75TC in one section and DT85, DT85T, and DT85TC in another. The QD tables flag differences from the DT85 VZ reference data.

The 1987 VH sections cover DT75CR, DT75TC, DT85CR, and DT85TC, with a separate configuration supplement for DT75MQ, DT75HQ, DT75CQ, DT75T, DT85CQ, and DT85T. Match the engine number to the VH serial-break table before selecting an oil-level switch or diagnosing the Suzuki Monitor. The table identifies which switch and monitor design the procedure applies to.

The J section covers DT75CQ, DT75CR, DT75TC, DT85CQ, DT85CR, and DT85TC. A dedicated U.S. section covers DT75TC and DT85TC. The J electrical material distinguishes the early throttle-valve sensor fitted during the first two months of DT75TC/DT85TC production from the later integrated-cam design and provides checks for both.

Workshop Checks, Tools, and Reference Drawings

The J-model integrated-circuit charts cover oil-level, oil-flow, over-rev, and cooling-water warnings. The electrical sections include temperature- and throttle-sensor checks. The general Group 14 troubleshooting attachment listed in the index is separate from this download.

The trim sections cover oil-level checks, the shock-absorber and manual-release circuits, hydraulic pressure tests, and cylinder service. Gear tooth-contact illustrations, exploded service views, and tables of torques, clearances, and wear limits support inspection and reassembly.

Named tools include the 09913-13121 carburetor balancer, 09951-09510 QD gear-adjusting gauge set, 09951-09520 VH/J shimming gauge, 09930-99830 CDI checker, and 09930-89530 J-model throttle-sensor test cord. The trim procedures identify the applicable pressure gauges and cylinder-cap tools.

For live checks, secure the outboard, support raised components, and keep clear of rotating parts. The carburetor chapter specifies a test tank for live tuning to protect the water-pump impeller. The DT85TC oil-injection section warns that damaged delivery hoses can interrupt lubrication and seize the powerhead.

Sample Carburetor, Gearcase, and Ignition Checks

The base DT85-family fuel chapter gives a Mikuni B40-32 float height of 17.5–19.5 mm (0.69–0.77 in.) for carburetor setup and balancing.

The base gearcase procedure specifies 0.05–0.3 mm (0.002–0.012 in.) of pinion-to-forward-gear backlash measured at the tooth heel.

The base electrical chapter lists ignition-coil resistance at 20°C for both windings. The primary range is 0.21–0.29 Ω and the secondary range is 2,130–2,880 Ω.
