1995 Kawasaki JET SKI 900ZXi/750ZXi Factory Service Manual (P/N 99924-1188-01)

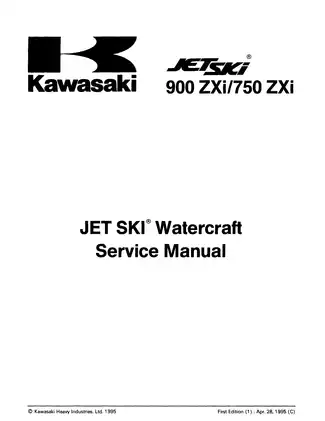

Kawasaki's factory service manual covers the 1995 JET SKI 900ZXi (JH900-A1) and 750ZXi (JH750-C1). This is the first edition, dated April 28, 1995, P/N 99924-1188-01.

Search and wiring detail: An embedded OCR text layer supports searches through the service chapters, but recognition errors and incomplete diagram text limit results. There are no PDF bookmarks. Small wiring labels need zooming, and some crowded wire-color codes remain difficult to distinguish.

• Engine repair: Engine removal and installation, top-end inspection, crankcase separation, and crankshaft measurements, with separate procedures for the three-cylinder and twin-cylinder engines.

• Fuel and oil injection: Keihin carburetor synchronization, fuel-system inspection, reed-valve checks, oil pump bleeding, and oil-delivery testing.

• Jet pump and drive: Pump disassembly and assembly, impeller clearance inspection, drive shaft bearing and seal replacement, and coupling checks.

• Cooling and exhaust: Cooling and bilge system flushing, hose inspection, expansion chamber service, and water box muffler inspection.

• Steering and hull: Steering and trim cable adjustment, handlebar service, hull replacement, and work on engine hood, hatch, bumper, and mirror fittings.

• Electrical diagnosis: Model-specific wiring diagrams, starter repair, charging and ignition tests, sensor checks, and the Electric Trim Nozzle Troubleshooting Guide.

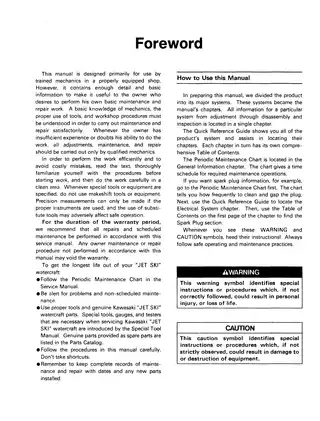

Written primarily for trained mechanics in a properly equipped shop, it also addresses basic owner maintenance and repair for readers who understand mechanics, tool use, and workshop procedures.

Carburetor and Oil Injection Service

Fuel delivery is managed by Keihin carburetors, and the manual documents specific main and pilot jet configurations for both engine variants. The Fuel System Diagram and Cable, Wire and Hose Routing pages distinguish the triple-carburetor layout from the twin-carburetor arrangement.

Oil pump bleeding is split between early models with a capped bleed fitting and later models with a bleed screw. Fuel pump coverage is limited to removal, installation, and unit replacement; internal disassembly is excluded.

Internal Engine Repair and Limits

The engine chapters provide compression testing, cylinder wear and piston-to-cylinder clearance checks, boring and honing guidance, and piston-ring inspection. Component-specific torque tables, fastening sequences, wear limits, and crankshaft assembly dimensions support reassembly.

Crankshaft coverage includes connecting-rod alignment, bearing play, and runout checks. Internal crankshaft disassembly is outside the manual's scope; rebuilding is assigned to a properly equipped shop.

Jet Pump, Steering, and Hull Work

The Pump and Impeller exploded view accompanies bearing and grease-seal assembly details. Named tools include the 57001-1228 impeller wrench and 57001-1393 impeller holder.

Steering coverage extends to trim motor linkage and cable alignment. Hull/Engine Hood sections cover hatch and mirror fittings, bumper removal, and adhesive selection for rubber parts.

Cooling, Exhaust, and Seasonal Storage

Separate cooling and bilge flow diagrams show the two model layouts. The exhaust sections address carbon deposits, corrosion, and heat damage at the water box muffler.

Cooling-system cautions explain how incorrect auxiliary water supply can send water through the exhaust into the engine, causing internal damage. Periodic maintenance and winter storage coverage includes corrosion protection and return-to-service inspections.

Electrical Testing and Fault Isolation

The JH900A and JH750C Wiring Diagrams show ignition, starting, instruments, and trim circuits with wire-color codes and switch-connection charts. Separate CDI resistance tables accompany checks for the pickup and exciter coils, regulator/rectifier, and level and temperature sensors. Spark-plug inspection and gap adjustment are also covered.

The Electric Trim Nozzle Troubleshooting Guide links a nonmoving nozzle to checks of the power supply, control, motor, and sensors. This helps narrow a trim fault before choosing a component to replace.

CDI testing specifies Kawasaki hand tester 57001-983 and warns that unsuitable test equipment can damage the igniter. Follow the manual's precautions for fuel vapors, electrical testing, and running the engine during service.

Printable PDF and Included Pages

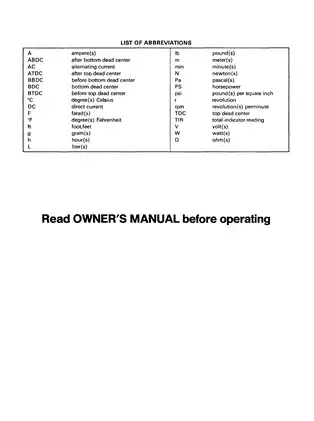

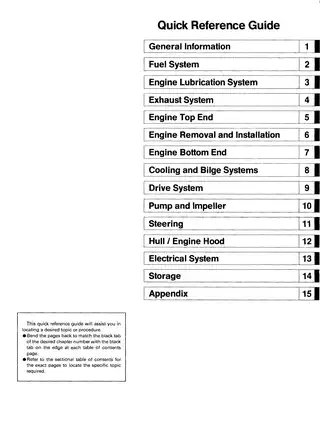

This is one printable English PDF with 216 pages total: 194 main chapter pages, a 7-page appendix covering lubrication, troubleshooting, and unit conversions, 6 cover and introductory pages, 8 blank pages, and 1 rear model-application/publication page. All are included in the total.
