2003–2008 Yamaha Raptor 50 YFM50S ATV Service Manual PDF (P/N LIT-11616-17-13)

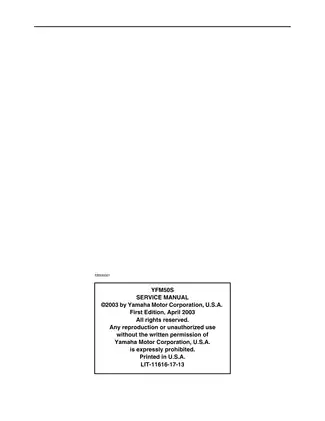

This Yamaha service manual covers the 2003–2008 Raptor 50 (YFM50S) youth ATV, identified as model code 5YF1. The first edition is dated April 2003 and carries document identifiers LIT-11616-17-13 and 5YF-28197-10.

• Engine repair: Engine removal and installation, cylinder-head and valve-train service, piston inspection, crankcase separation, crankshaft checks, and oil-pump inspection.

• Clutch and transmission: Automatic centrifugal clutch removal, plate inspection and assembly, plus shift-shaft, shift-fork, shift-drum, and transmission-gear service.

• Carburetor and intake: Carburetor disassembly, jet and needle-valve inspection, reassembly, fuel-level adjustment, and air-filter servicing.

• Shaft drive: Middle driven gear shim selection, backlash measurement, universal-joint service, and rear axle/final-drive disassembly and inspection.

• Brakes and chassis: Front and rear drum-brake repair, wheel-bearing replacement, steering-knuckle and tie-rod service, toe-in adjustment, and suspension inspection.

• Electrical diagnosis: CDI ignition and charging tests, starting-circuit troubleshooting, starter-motor repair, neutral-indicator checks, and system-specific circuit diagrams.

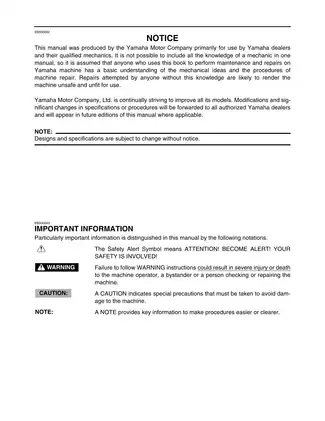

Written primarily for Yamaha dealers and qualified mechanics, this manual assumes a basic understanding of mechanical principles and machine repair procedures.

Engine Internals and Periodic Maintenance

You get detailed engine specifications, periodic maintenance schedules, and procedures for timing-chain tension, valve-clearance adjustment, ignition-timing checks, and compression testing. Exhaust inspection and spark-arrester cleaning are also covered.

Top-end repair extends to valve-guide replacement, valve-seat inspection and lapping, camshaft and rocker-arm checks, and piston-ring measurements. The engine chapter continues into crankcase bearings, crankshaft inspection, and oil-pump clearances.

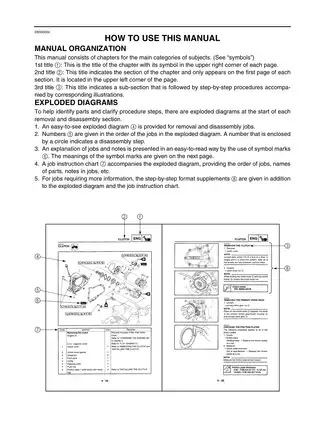

Oil flow diagrams show the lubrication paths through the camshaft, crankshaft, and transmission shafts, with separate identification of the pump and strainer. Exploded assembly views accompany removal and disassembly sections.

Clutch Assembly and Shaft-Drive Service

The clutch section distinguishes the marked friction plates, clutch plates, thrust weight plate, and clutch balls. It includes plate-height adjustment, while the specification tables provide clutch engagement and stall-speed data.

Middle driven gear shim-selection charts accompany the backlash measurement procedure. The required gear lash measurement tool is identified as YM-01467 / 90890-01467, alongside the pinion gear holding equipment.

The shaft-drive troubleshooting section warns that insufficient backlash can destroy gear teeth. Final-drive disassembly also identifies direct hammer blows to the rear axle end as a cause of thread and spline damage.

Mikuni Carburetor Inspection and Adjustment

The Mikuni VM16SH section covers float-chamber servicing, needle-valve condition, jet inspection, and piston-valve movement. Fuel-level measurement and adjustment are supported by illustrations and identification of the fuel level gauge.

Troubleshooting charts address starting difficulty, poor idle, and poor medium- and high-speed performance, separating fuel-system possibilities from ignition and compression faults.

Drum Brakes, Steering and Suspension

Brake assembly drawings show the shoe plates, camshafts, wear indicators, and control cables. Inspection procedures distinguish lining wear from drum wear and cover camshaft indexing during reassembly.

Steering-stem bushings, tie-rod ends, steering knuckles, and toe-in receive dedicated checks. Front and rear swingarm sections cover bushings and pivot components; shock-absorber service consists of removal, inspection, and assembly replacement when damaged or leaking.

Follow the manual’s component-specific torque specifications and brake, steering, and vehicle-support precautions when servicing this youth ATV.

Starting Interlocks and Electrical Fault Tracing

The starting-circuit operation diagram explains the roles of the neutral switch, rear brake switch, and starting circuit cut-off relay. Its test charts help distinguish an interlock fault from a starter-relay or motor fault when the engine will not crank.

Starter-motor inspection includes the commutator, brushes, and armature. Ignition and charging circuit diagrams support coil and wiring tests, while electrical-component location views and cable-routing maps identify the harness, battery leads, and brake-cable paths.

Selected Cylinder-Head and Shaft-Drive Specifications

The cylinder-head torque table distinguishes M6 nuts at 12 Nm (8.7 ft-lb) from M6 bolts at 10 Nm (7.2 ft-lb). The installation section also specifies staged tightening for the nuts.

For the shaft drive, the middle gear backlash specification is 0.17–0.31 mm. The final gear case oil capacity is 0.12 L, with SAE 80 API GL-4 hypoid gear oil specified.

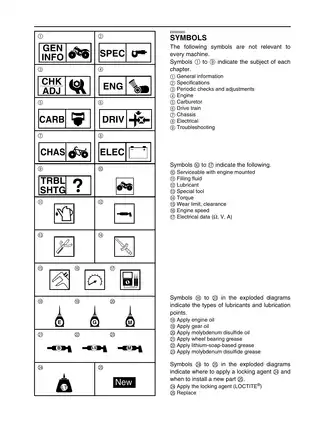

Searchable PDF with Chapter and Wiring Bookmarks

Search and diagram detail: Searchable text and embedded bookmarks cover the main chapters, service sections, and final wiring diagram. Small wire-color and connector labels are best read with zoom. The charging-system diagram crops peripheral wiring at its right edge; the full wiring diagram is on PDF p. 236.

One printable, English-language 236-page PDF, comprising 220 numbered technical pages, 14 cover and front-matter pages, one back-cover page, and one full wiring-diagram page.
