2005 Kawasaki Z750S (ZR750-K1) Service Manual (P/N 99924-1344-01)

Kawasaki’s Service Manual for the 2005 Z750S (ZR750-K1) covers U.S., Canadian, European, and Malaysian market information. This is the first edition, dated November 8, 2004, P/N 99924-1344-01.

• Engine repair: Engine removal and installation, camshaft timing, cylinder-head and valve service, piston inspection, and crankshaft bearing selection.

• DFI fuel injection: Self-diagnosis, service-code interpretation, fuel-pressure and injector tests, throttle-body removal, and engine vacuum synchronization.

• Clutch and transmission: Wet-clutch disassembly, clutch plate assembly adjustment, transmission shaft service, and shift-drum and fork inspection.

• Cooling and lubrication: Cooling-system pressure tests, thermostat and water-pump checks, oil-pump service, and oil-pressure measurement.

• Brakes and chassis: Caliper and master-cylinder rebuilds, brake-line bleeding, front-fork service, Uni-Trak linkage bearings, and steering-stem work.

• Electrical troubleshooting: Wiring diagrams, charging and ignition tests, starter-motor overhaul, and immobilizer diagnosis and key registration on equipped models.

Written primarily for trained mechanics in a properly equipped shop, it also supports owners doing basic maintenance and repair who understand mechanics, tools, and workshop procedures.

Engine, Clutch, and Transmission Repair

The Periodic Maintenance Chart organizes scheduled inspections and replacement items. Separate intake and exhaust Valve Clearance Adjustment Charts support shim selection, while the engine chapters cover camshaft-chain timing, cylinder-head work, and piston/ring inspection.

Cylinder-head installation distinguishes tightening stages and final specifications for new versus reused M10 head bolts. Crankcase and crankshaft coverage includes bearing-insert selection and clearance checks.

The drivetrain sections explain clutch-pack length adjustment, transmission shaft teardown, and inspection of shift forks, grooves, and gear dogs. Connecting-rod instructions identify single-use bolts and plastic-region fastening; excessive bolt stretch can lead to breakage in service.

DFI Diagnosis and Immobilizer Equipment

Diagnostic trouble codes appear as FI-light service codes, supported by a DFI Diagnosis Flow Chart and sensor voltage, resistance, and continuity checks. Separate ECU terminal assignments for immobilizer-equipped models help avoid testing the wrong terminals during fault isolation.

The test sections identify tools such as Throttle Sensor Harness Adapter 57001-1538. The Keihin TTK34 throttle-body instructions warn that disturbing factory-set sensors or linkage can cause poor performance and require throttle-body replacement.

On equipped models, immobilizer coverage includes key registration and component replacement. New user-key registration depends on the master key; the manual also addresses loss of all coded keys.

Work on the pressurized fuel system and electrical circuits requires proper shop equipment and the manual’s safety precautions.

Cooling, Emissions, and Chassis Service

The Coolant Flow Chart accompanies radiator pressure testing, thermostat checks, and water-pump mechanical-seal inspection. California EVAP coverage includes canister inspection and liquid/vapor separator operation tests.

The KLEEN section explains this model’s catalyst arrangement and refers to a separate ZX900E Service Manual for additional theory, maintenance, and handling information.

Brake procedures cover internal caliper and master-cylinder inspection, fluid replacement, and bleeding. Front-fork work includes oil changes, seal replacement, and disassembly.

Rear suspension coverage addresses rebound and preload adjustment, shock removal and inspection, and swingarm, Uni-Trak tie-rod, and rocker-arm bearing service.

Charging, Ignition, and Wiring

Charging-system tests distinguish alternator and regulator/rectifier faults. Regional wiring diagrams cover U.S./Canada, Malaysia, and other-market circuits, with cable, wire, and hose routing views for reassembly.

Starter-motor overhaul, side-stand ignition-interlock checks, and meter/indicator tests extend the electrical coverage beyond DFI diagnostics.

A Preview of Charging, Ignition, and Coolant Data

The three-phase AC alternator is rated at 24 A/14 V at 5,000 rpm. Ignition specifications list a 0.7–0.8 mm spark-plug gap for NGK CR9EK or ND U27ETR plugs.

Coolant specifications give a 2.9 L total for the radiator and engine with the reserve tank at its full-level mark.

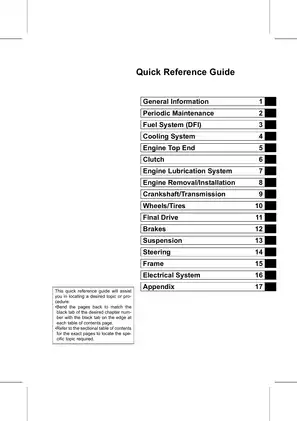

Searchable Text, Bookmarks, and PDF Contents

Text search and diagram detail: Body text is searchable, with embedded bookmarks for procedures and reference sections. Labels inside the main wiring diagrams are outside the searchable text; small wire-color and connector markings require zooming.

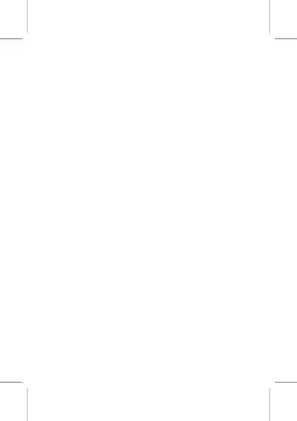

Supplied as one printable English 571-page PDF. The total includes eight pages of cover and introductory material, the model-application back page, and 15 blank pages.
