Yamaha RS Viking Professional VK10D Supplementary Service Manual Snowmobile 2013
Product Gallery

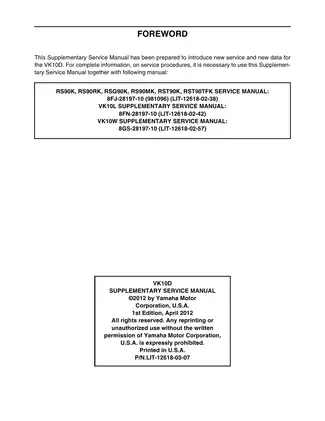

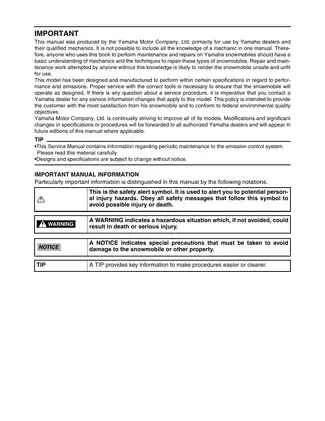

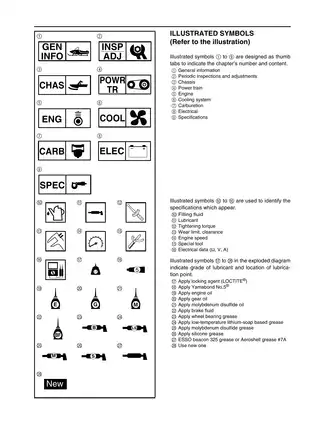

Sample pages from the Yamaha RS Viking Professional VK10D Supplementary Service Manual Snowmobile 2013 manual
Purchase Information
Technical Specifications
- Document Number / Seller:
- 30683 / Donald Morales
- File Size:
- 3.57 MB
- File Type:
- Language:
- English
- Pages:
- 99
- Printable:
- Yes
- Estimated Download Time:
- 0.07 Minutes
- Delivery Format:
- Digital (PDF) - Instant Access
- Category:
- Snowmobile
- Brand:
- Yamaha
- Reviewed and Approved:
- Jan 2, 2026
Yamaha Models and Parts Covered in this Snowmobile Manual
-
YAMAHA VK10D PROFESSIONAL (8GS-28197-11) — Series: LIT-12618-03-07
-
Full Coverage: VK10D — Viking Professional — 973cc Series — 2013 Supplementary Edition
-
Yamaha 973cc Propulsion Logic: Inline 3-cylinder 4-stroke — Dry sump — 11.3:1 compression — 79.0 x 66.2 mm bore/stroke — 973 cm³
-
Centrifugal Drive & Transmission Architectures: Automatic engagement — 3.8~1.0:1 V-belt — 2.00 Silent chain — 2.67 Low range — 2.46 Reverse
-
Yamaha Frame & Undercarriage Componentry: Monocoque structure — 3260 mm length — 1200 mm width — 394 kg wet mass — 975 mm ski stance
-
SAE Service & Refill Volumes: 3.7L Engine oil (3.0L filter change) — 4.7L Coolant — 0.35L SAE 75W/80W Gear oil — 40L Fuel
-
TCI Ignition & DC Power Circuitry: 14V 30A AC magneto — 12V 18Ah YTX20L-BS battery — 60W/55W Halogen — 30A Main fuse
Complete Manual Information
Yamaha RS Viking Professional VK10D Supplementary Service Manual - 2013
This authoritative service documentation provides critical technical updates and new data required for the maintenance of the VK10D platform. To ensure peak operational uptime, the manual specifies the use of high-quality ethylene glycol antifreeze with specific corrosion inhibitors mixed at a 3:2 ratio for precise thermal regulation.
Technical Applicability & Model Series
- Generation: VK10 Series (2013 MY)
- Model Code: 8JE2 (VK10D USA)
- Chassis Type: Aluminum & Steel Monocoque
- Vehicle Class: Snowmobile (Professional/Utility)
Operational Parameters & Service ROI
- Emission Compliance: Includes dedicated maintenance protocols for the emission control system to meet federal environmental objectives.
- Drivetrain Integrity: Detailed inspection benchmarks for extrovert drive sprockets and slide metal wear limits prevent catastrophic track failure.
- Calibration Precision: High-altitude carburetor setting matrices (Main Jet/Pilot Jet) ensure stoichiometric efficiency across varying elevations.
Documentation Metadata
- Manufacturer: Yamaha Motor Company, Ltd.
- Document ID: LIT-12618-03-07 / 8GS-28197-11
- Edition: 1st Edition, April 2012
- Page Count: 99 Pages
Technical Depth & Factory Benchmarks
Service procedures within this manual prioritize structural and mechanical longevity through exact measurement tolerances. The inline 3-cylinder, 973 cm³ engine requires a standard compression pressure of 450 kPa at 400 r/min. Critical clearances, such as the intake valve-to-guide gap (limit: 0.08 mm), are defined to maintain factory performance standards and prevent power loss.
System Architecture & Navigation
- Primary Drive: V-Belt automatic centrifugal engagement system with specified sheave offset (13.5–16.5 mm).
- Secondary Drive: Silent chain reduction housed in an oil bath, utilizing SAE 75W or 80W API GL-3 gear oil.
- Suspension Geometry: Independent double wishbone front suspension and slide rail rear suspension with nitrogen-charged shock absorbers.
Table of Contents
- General Information: Model identification and technical symbols.
- Periodic Inspections: Maintenance charts and lubrication schedules.
- Chassis: Steering systems, ski alignment, and front/rear suspension.
- Power Train: Shift lever assembly, drive chain housing, and secondary shaft.
- Engine: Crankcase, lubrication system, and oil replacement steps.
- Cooling System: Thermostat specs and pump overhaul.
- Specifications: Tightening torques and high-altitude settings.
Operational Limits & Specifications
- Engine Torque: Cylinder head M10 bolts (Angle tighten to 180°), Oil gallery bolt (20 Nm).
- Drive System Torque: Primary sheave spider (200 Nm), Secondary sheave (64 Nm).
- Chassis Torque: Ski mounting bolt (48 Nm), Slide rail mounting bolt (72 Nm).
- Fluid Capacities: Engine Oil (3.0L with filter), Drive Chain Housing (0.35L), Coolant (4.7L).
