1998–2006 Takeuchi TB014 & TB016 Mini Excavator Operator's Manual PDF (P/N AC4E020)

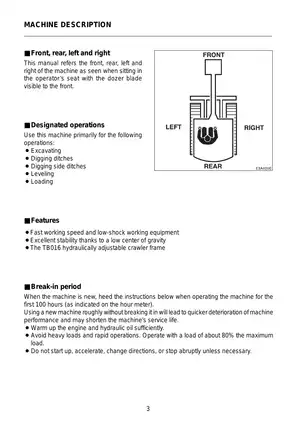

Takeuchi’s operator’s manual, Book No. AC4E020, covers 1998–2006 TB014 and TB016 mini excavators in cab and canopy configurations. It addresses operation, inspection and maintenance, including the TB016’s hydraulically adjustable crawler frame.

Text Search, Bookmarks and Illustrated References

Search and navigation: The main text is searchable, with embedded PDF bookmarks for chapters and many individual procedures. Some dimension and chart labels are outside the searchable text. Small figures in the lifting-capacity charts require magnification, and some chart lines are faint.

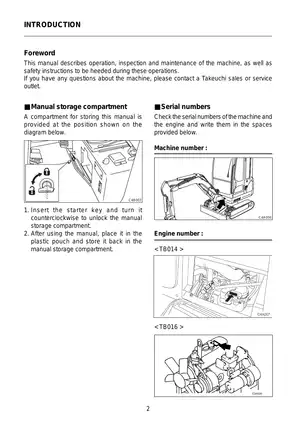

One printable, 214-page PDF in English: two unnumbered opening pages, 210 numbered pages—including seven near-blank pages—one publication page and one final warning page.

Excavator Controls, Scheduled Service and Fault Checks

The selected topics below are supplemented by long-term storage guidance and adjustments for the optional high-back seat.

• Controls and operation: ISO and JCB lever patterns, engine starting and stopping, auxiliary hydraulic controls, and TB016 crawler-width adjustment.

• Engine and cooling maintenance: Engine oil and filter replacement, fan-belt inspection and adjustment, air-cleaner service, and radiator and cooling-system cleaning.

• Fuel-system service: Water-separator cleaning, fuel-filter service, tank draining, and step-by-step procedures for bleeding air from the fuel system.

• Hydraulics and undercarriage: Hydraulic return-filter replacement, suction-strainer cleaning, travel motor gear-oil changes, crawler-tension adjustment, and rubber-crawler replacement.

• Bucket and attachment care: Bucket removal and installation, tooth replacement, three-hole bucket linkage changes, telescopic-arm precautions, and hydraulic-breaker maintenance requirements.

• Troubleshooting and reference charts: Warning-lamp responses, fuse and fusible-link checks, overheating guidance, rated lift capacity charts, machine dimensions, and operating-range drawings.

This manual is for trained, qualified personnel responsible for operating, inspecting and maintaining these excavators.

Operator Controls and Machine Setup

The operating explanations use the ISO lever pattern; the JCB layout and optional A-G selector procedure are also covered. Throttle and travel controls are explained alongside seat and belt adjustments, cab heating, defroster operation and radio controls, including the EU radio.

Auxiliary-hydraulic instructions distinguish one-way breaker operation from reversible attachments such as crushers. They cover attachment-line connections, air purging and auxiliary-pedal stroke adjustment.

For the TB016, crawler-width and dozer-blade width changes have their own instructions. The manual warns that changing crawler width without unloading the frame can damage the travel frame and span cylinder.

Maintenance Planning and Service Limits

The maintenance chart separates initial break-in service from recurring inspections. Daily checklists cover fluid levels, hydraulic leaks, crawler components and safety equipment, giving operators a reference for planning routine maintenance.

The temperature-based lubricant chart includes API-GL-4 travel-reduction gear oil and ISO VG46 hydraulic oil. Service data also provide filter part numbers, model-specific filter wrenches and a general fastener torque table.

Engine valve-clearance adjustment, cylinder-head bolt retightening and fuel-injection checks are assigned to a Takeuchi service outlet rather than presented as detailed engine repair procedures.

Troubleshooting and Emergency Procedures

The symptom/cause/action tables help narrow down starting problems, weak digging force, poor tracking and overheating before deciding whether service-outlet assistance is needed. Separate guidance distinguishes normal hydraulic behavior from faults.

Warning-lamp instructions account for the TB016’s engine-emergency alarm and automatic shutdown behavior. Battery jump-starting, fuse replacement and fusible-link inspection are covered; emergency boom lowering is documented but expressly assigned to an experienced Takeuchi service outlet.

Attachments, Hydraulic Oil and Operating Precautions

The Attachment Combination Table identifies permitted bucket and arm combinations. Telescopic-arm coverage includes lubrication, looseness checks and TB016 canopy operating-range drawings; hydraulic-breaker guidance refers users to the breaker’s separate manual for breaker-specific handling.

Breaker use changes the hydraulic-oil and return-filter replacement schedule. Mixing mineral and biodegradable oils reduces hydraulic-oil performance, while unsuitable biodegradable oils can damage O-rings, packings and seals. Conversion flushing is assigned to a Takeuchi service outlet.

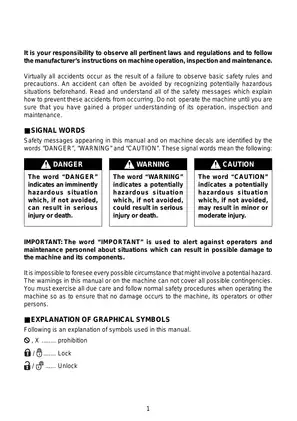

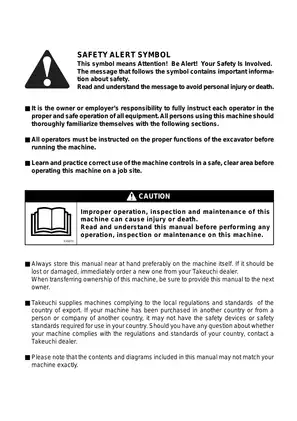

Safety coverage includes warning-decal locations and precautions for slopes, water, load handling and transport. Track-adjuster warnings address the risk of the grease discharge valve being expelled under pressure.

Working on heavy machinery involves inherent risks, so always verify safety procedures and ensure your workspace is secure before beginning any physical repair.

A Preview of Oil Capacities and Belt Inspection Data

The engine-oil chart lists upper-limit capacities of 3.0 L for the TB014 and 2.8 L for the TB016, alongside separate lower-limit figures and dipstick inspection instructions.

Fan-belt inspection data distinguish the two engines: specified belt slack is 5–7 mm for the TB014 and 7–10 mm for the TB016 under approximately 98 N of force applied between the fan and alternator pulleys. The accompanying illustrations identify the inspection point and adjustment hardware.
