Yamaha FZS10V/FZS10VC Service Manual, 2006 (P/N LIT-11616-19-79)
414 Pages • 1 Printable PDF (English) • Download
Yamaha Models Covered & Key Technical Specifications
Models & Model Codes: FZS10V (3C34, U.S.A.), FZS10VC (3C35, California)
Model Year: 2006
-
Engine displacement: 998.0 cm³
-
Engine type: Liquid cooled 4-stroke, DOHC
-
Compression ratio: 11.50:1
-
Fuel tank capacity: 18.0 L
-
Standard valve clearance (intake): 0.11–0.20 mm
-
Standard valve clearance (exhaust): 0.21–0.25 mm
-
Spark plug gap: 0.6–0.7 mm
-
Transmission: 6-speed constant mesh
Yamaha Manual Features & Selected Content Preview

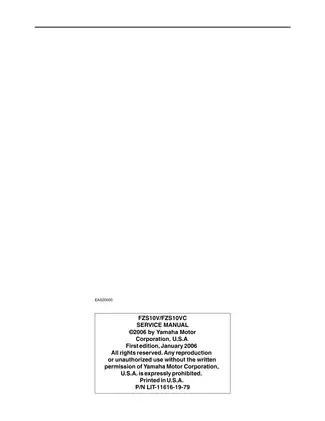

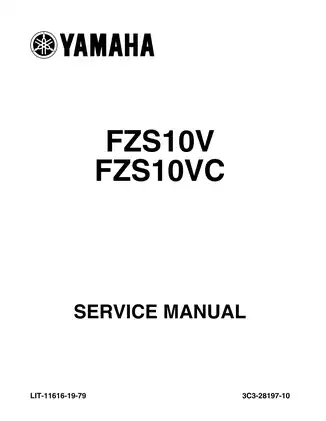

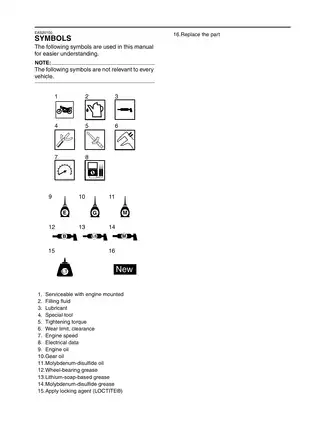

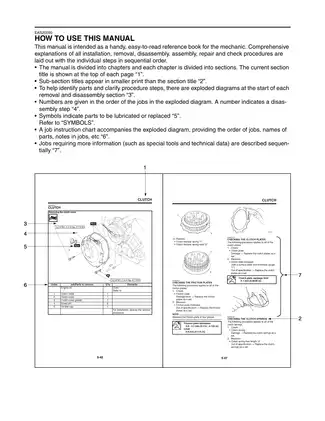

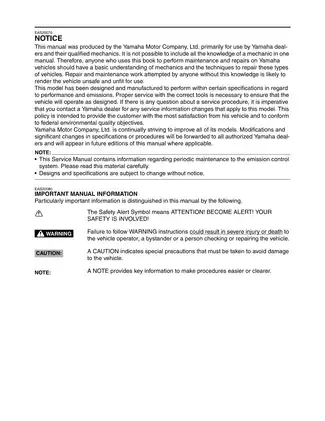

Yamaha Service Manual P/N LIT-11616-19-79, first edition, January 2006, covers the 2006 FZS10V and FZS10VC. The original cover also carries identifier 3C3-28197-10. Scheduled maintenance is followed by mechanical repair, fuel-system service, and electrical diagnosis.
PDF Search, Bookmarks, and Diagram Detail
Text navigation and wiring detail: Body text is searchable, with PDF bookmarks for chapters and major sections. Some wiring-diagram lettering is graphical rather than searchable. Small circuit labels and connector details require enlargement.
The download contains one printable, 414-page English PDF, including both cover pages and the wiring-diagram sheets.
Engine, Chassis, and Fuel-Injection Service
The following is a selected content overview, rather than a complete contents list. Other topics include instrument-display functions and sealed-battery charging checks.
-
Engine repair: Engine removal, camshaft timing, cylinder-head and valve-guide service, crankcase separation, and piston, connecting-rod, and crankshaft inspection.
-
Clutch and transmission: Wet multi-disc clutch repair, shift-shaft service, transmission disassembly, gear and shaft inspection, and shift-drum and shift-fork checks.
-
Fuel system and EXUP: Fuel-pump service, injector checks, throttle-body synchronization, throttle-position and sub-throttle sensor adjustment, thermo-wax adjustment, and EXUP cable and servo checks.
-
Wheels and brakes: Wheel removal and static balancing, brake-pad replacement, master-cylinder and caliper repair, disc inspection, and hydraulic bleeding.
-
Suspension and final drive: Fork disassembly and assembly, steering-head service, rear-shock removal and inspection, swingarm and linkage work, and drive-chain inspection.
-
Cooling system: Radiator and oil-cooler removal, radiator-cap pressure testing, thermostat checks, water-pump disassembly, and seal installation.
-
Electrical diagnosis: ECU self-diagnosis, meter-displayed fault codes, diagnostic-mode sensor and actuator checks, component tests, circuit troubleshooting, and wiring diagrams.
Written primarily for Yamaha dealers and qualified mechanics, the manual assumes mechanical knowledge and familiarity with motorcycle repair, supported by the specified measuring equipment and special tools.
U.S. and California Build Details
The U.S. specification uses Mikuni throttle-body type SE 45EIDW-B10/1, ID mark 2D11 00; the California specification uses SE 45EIDW-B13/1, ID mark 3C35 00.
California-specific material covers evaporative-emission control inspection and routing for the roll-over valve, balance pipe, canister, and associated hoses. These distinctions help keep build-specific parts and routing information straight before repair work begins.
Internal Engine and Drivetrain Detail
The forward-inclined DOHC four-cylinder has step-by-step procedures for internal inspection and reassembly. Starter-clutch and generator work, oil-pump inspection, and starter-motor disassembly supplement the main engine sections.
Component tables supply tightening torques, lubrication requirements, fluid capacities, pressure-test specifications, clearances, wear limits, and bearing-selection data.
The crankshaft chapter cautions against mixing big-end or journal bearings between their original positions because incorrect clearance can damage the engine. Camshaft-cap identification and even tightening also matter: incorrect installation can damage the cylinder head, caps, or camshafts and disturb valve timing.
Fuel-Injection Fault Isolation
The ECU tables connect fault codes with symptoms, starting and driving status, probable causes, diagnostic checks, and reinstatement actions. Sensor monitoring and actuator tests support fault isolation beyond simply reading a warning code.
Separate troubleshooting sections address ignition, electric starting, charging, lighting, signaling, cooling-fan control, and fuel-pump circuits. Starting-interlock coverage explains the relationship between the neutral, clutch, and sidestand switches.
Symptom guides also address poor starting, unstable idle, weak high-speed performance, shifting and clutch faults, overheating, braking problems, fork faults, and unstable handling.
Fork, Rear-Shock, and Cooling Work
The fork procedures distinguish the right rebound-damping leg from the left compression-damping leg, including their different damper assemblies. Oil-level measurement conditions and damper-rod assembly details accompany reassembly.
Rear-shock coverage concerns removal, inspection, installation, and linkage service. Yamaha warns against opening the nitrogen-charged shock absorber.
The cooling chapter includes water-pump impeller, bearing, oil-seal, and mechanical-seal work. Thermostat testing and radiator-cap checks provide separate ways to investigate cooling faults.
Factory Tools and Workshop Illustrations
Special-tool references pair Yamaha 90890 numbers with U.S./Canada equivalents. Examples include the vacuum gauge 90890-03094 / YU-44456, camshaft wrench 90890-04143 / YM-04143, fork spring compressor 90890-01441 / YM-01441, and water-pump seal installer 90890-04078 / YM-33221-A.
Illustrations include the Engine Oil Lubrication Chart, Cooling System Diagrams, and California-specific Cable Routing plates. The Electric Starting System and Fuel Injection System circuit diagrams accompany their diagnostic sections.
The FZS10V/FZS10VC Wiring Diagram is supplied in monochrome and color, with connector views and a component and wire-color legend. Exploded assembly views and job charts identify parts and organize removal and disassembly work.
Fuel-system service, brake hydraulics, engine removal, and suspension work require secure vehicle support, fire-safe handling, the specified tools, and Yamaha’s factory safety precautions.
Selected Fuel-System and Cooling Test Values
Fuel-pressure testing specifies 324 kPa with the engine running. The throttle-position sensor adjustment section specifies 0.63–0.73 V, with correct engine idle adjustment required beforehand.
For radiator-cap testing, the specified opening-pressure range is 93.3–122.7 kPa. The cooling chapter pairs this specification with a pressure-retention check.
