Mercury Outboard Engine 45HP-220HP Manual (1977-1989) - Comprehensive Outboard Service & Repair Procedures
Product Gallery

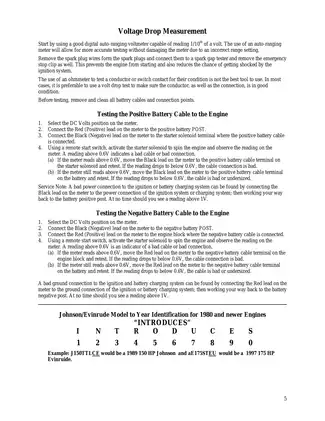

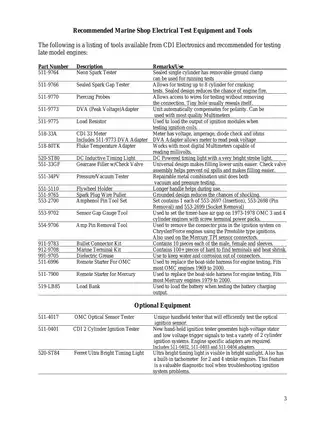

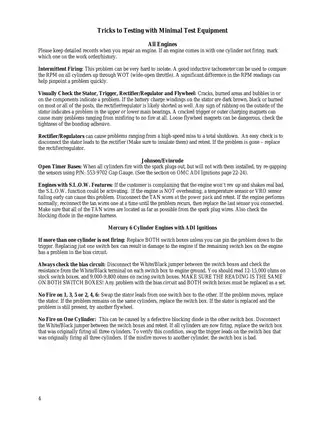

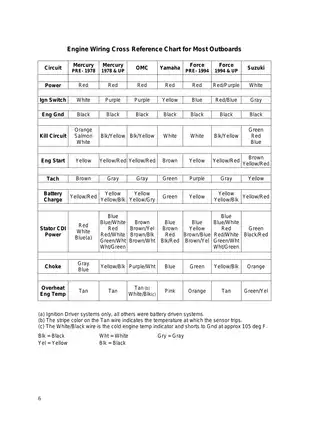

Sample pages from the Mercury Outboard Engine 45HP-220HP Manual (1977-1989) - Comprehensive Outboard Service & Repair Procedures manual
Purchase Information
1977-1989 Mercury Outboard Engine 45HP-220HP Service Manual - Technical Specifications
- Document Number / Seller:
- 30712 / Laura Williams
- File Size:
- 35.38 MB
- File Type:
- Language:
- English
- Printable:
- Yes
- Estimated Download Time:
- 0.72 Minutes
- Delivery Format:
- Digital (PDF) - Instant Access
- Category:
- Outboard Motor
- Brand:
- Mercury
Mercury Models and Parts Covered in this Outboard Motor Manual
- 45HP-220HP (1977-1989)
Complete Manual Information
Mercury Outboard Engine Service Manual (1977-1989) | 45 HP - 220 HP
This comprehensive workshop manual is the essential reference for the maintenance, repair, and troubleshooting of all common Mercury and Mariner outboard engines ranging from 45 HP to 220 HP for the model years 1977 through 1989.
Whether you are an experienced marine mechanic or an ambitious boat owner, this manual provides detailed, illustrated instructions to keep your engine in top condition.
Covered Models and Horsepower Classes (Selection)
The manual covers a wide range of 2-stroke engine configurations, including:
| Year(s) | Horsepower (HP) | Cylinder Configuration |
|---|---|---|
| 1986-1989 | 45 HP | 4-Cylinder |
| 1986-1989 | 50 HP | 3-Cylinder |
| 1978-1983 | 80 HP | 4-Cylinder |
| 1987-1989 | 90 HP | 3-Cylinder |
| 1979-1986 | 90 HP | 6-Cylinder |
| 1978-1988 | 115 HP | 6-Cylinder |
| 1986-1989 | 135 HP | V6 |
| 1985-1989 | 175 HP | V6 |
| 1980-1989 | 200 HP | V6 |
| 1987-1988 | 220 HP | V6 EFI (Electronic Fuel Injection) |
(Please note: The manual covers the complete model range within the specified HP range. The types listed here serve as examples.)
Key Contents and Chapters
This manual, which is over 600 pages, is divided into clear chapters and contains all the information necessary for professional repair:
- Safety and General Information
- Maintenance and Seasonal Storage
- Fuel System and Carburetor/EFI (including synchronization, adjustment, and overhaul)
- Ignition System (testing spark coils, power packs, CDI units, and components, often utilizing specialized tools like DVA Adapters – see the provided list of CDI tools)
- Electrical Systems (wiring diagrams, testing the alternator, starter, and solenoid)
- Timing and Adjustment (Ignition timing and throttle synchronization)
- Powerhead (Engine Block) (Removal, disassembly, inspection, and assembly, including specifications for cylinders, pistons, and crankshaft)
- Gearcase (Lower Unit) (Disassembly, inspection, assembly, shimming, and gear backlash adjustment)
- Trim and Tilt System
- Cooling System (Maintenance and water pump replacement)
- Specifications and Torque Values (Comprehensive tables of all relevant tightening torques and technical data)
Your Benefit
With this workshop manual, you receive the precise instructions and diagrams needed to avoid costly shop visits. It allows you to perform all common service tasks yourself – from minor inspection to complete engine overhaul – and maximize the reliability of your classic Mercury outboard.
(Note: The test equipment recommended by CDI Electronics in the image, such as the 511-9773 DVA Adapter, are typical tools required to perform the electrical diagnostic procedures described in this manual.)
