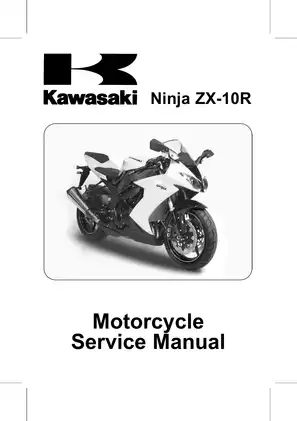

2006–2007 Kawasaki Ninja ZX-10R Service Manual (P/N 99924-1388-01)
694 Pages • 14.71 MB • Instant, Printable PDF
Kawasaki Models Covered & Key Technical Specifications
Models: Ninja ZX-10R
Sub-models / Variants: ZX1000E8F, US Model, CA Model, EUR Model, MY Model, SEA Model, WVTA (Full Power), WVTA (78.2 H)
Model Year: 2006–2007
Serial Numbers: ZX1000E8F (Frame and Engine number ranges vary by market)
-
Engine: 4-stroke, DOHC, 4-cylinder, liquid-cooled
-
Displacement: 998 cm³ (60.9 cu in)
-
Bore x Stroke: 76.0 × 55.0 mm (3.0 × 2.2 in.)
-
Compression Ratio: 12.9:1
-
Transmission: 6-speed, constant mesh, return shift
-
Wheelbase: 1 415 mm (55.7 in.)
-
Fuel Tank Capacity: 17 L (4.5 US gal)
-
Dry Mass: 179 kg (395 lb)
-
Spark Plug: NGK CR9EIA-9

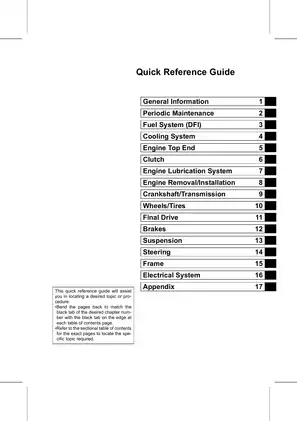

Kawasaki Manual Features & Content Preview
This factory service manual covers the 2008 Kawasaki Ninja ZX-10R, model ZX1000E8F, built around the liquid-cooled 998 cc DOHC inline-four, digital fuel injection, and Kawasaki Ignition Management System (KIMS). Kawasaki states that the manual was written primarily for trained mechanics in a properly equipped shop. Owners with basic mechanical knowledge, correct tools, and workshop experience can also use it for basic maintenance and repair; internal-engine, DFI, brake, and suspension work assumes suitable instruments and a higher level of skill.
-

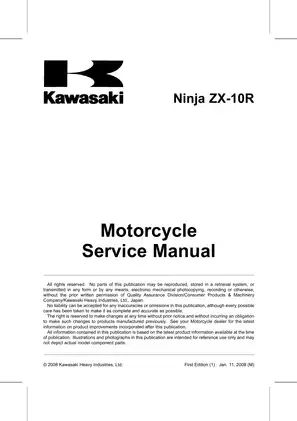

Edition and application: A 694-page PDF of the Kawasaki Heavy Industries Motorcycle Service Manual, P/N 99924-1388-01, First Edition (1), dated January 11, 2008. Coverage is limited to the 2008 ZX1000E8F, not the 2006-2007 models.
-
Frame and market identification: Lists beginning frame numbers JKAZXCE1x8A000001 (x is the variable digit), JKAZXT00EEA000001, and ZXT00E-000001, with region-specific material for the US, California, Canada, Europe, Australia, Malaysia, Southeast Asia, and equipped-model and WVTA variations.
-
Engine and drivetrain repair: Covers engine removal and installation, camshaft and timing-chain service, cylinder-head and valve work, crankcase splitting, crankshaft/connecting-rod/piston inspection, clutch repair, transmission shaft and shift-mechanism service, starter clutch, and chain final drive.
-
DFI and engine management: Provides self-diagnosis and service-code procedures, ECU and power-source checks, sensor voltage, resistance, and peak-voltage tests, fuel-pressure and flow testing, primary and secondary injector service, throttle-body synchronization, plus subthrottle and exhaust-butterfly actuator diagnosis.
-
Chassis and brake work: Details wheel and tire service, brake-caliper and master-cylinder disassembly, brake-line bleeding, upside-down front-fork oil change and disassembly, steering-stem service, swingarm bearings, and Uni-Trak tie-rod and rocker-arm repair.
-
Electrical and reference content: Includes charging, ignition, starter, lighting, meter, relay, switch, and immobilizer key-registration procedures; regional wiring diagrams; component torque and locking-agent tables; service limits; fluid and adjustment data; exploded views; and cable, wire, and hose routing.
Factory Procedures and Diagnostic Depth
The repair coverage goes beyond scheduled service. Cooling-system chapters address pressure testing, flushing, water-pump and radiator work, thermostat checks, and coolant replacement. The lubrication section covers the oil pan, relief valve, oil pump, cooler, and oil-pressure measurement. Top-end procedures extend through compression testing, cylinder-head removal, valve-guide work, and valve-seat repair. Bottom-end material covers bearing selection and clearance checks, pistons, transmission gears, shift forks, and shift-drum inspection.
Regional differences are identified where they affect the work: California and Southeast Asia evaporative-emission equipment, oxygen sensors and immobilizer hardware on equipped models, full-power and restricted WVTA specifications, and separate electrical layouts for different markets. The appendix adds symptom-based troubleshooting for starting, poor running, overheating, clutch and shifting faults, engine and chassis noise, oil-pressure warnings, brake performance, handling, and battery problems.
Diagrams, Tools, and Specifications
Named visual references include the DFI System Wiring Diagram, DFI Diagnosis Flow Chart, Self-Diagnosis Flow Chart, Coolant Flow Chart, Engine Oil Flow Chart, and the regional wiring-diagram set for US/CAL/CA, other-than-US/CA/AU/MY, and AU/MY machines. Chapter-opening exploded views mark assembly notes, replacement items, lubricants, sealants, locking agent, and tightening requirements.
Factory tool callouts are tied to the procedures, including the Hand Tester 57001-1394, Vacuum Gauge 57001-1369, Key Registration Unit 57001-1582, Fork Oil Level Gauge 57001-1290, Engine Mount Nut Wrench 57001-1450, and Swingarm Pivot Nut Wrench 57001-1597.
Repair Cautions and Scope Limits
The manual flags a non-return camshaft-chain tensioner: loosening its mounting bolts only partway and then retightening can damage the tensioner and chain, while turning the crankshaft with the tensioner removed can upset valve timing and damage the valves. It also warns that reused piston-pin snap rings can come loose and score the cylinder wall.
The rear-shock section covers adjustment, removal, installation, inspection, and disposal, but not internal shock disassembly or rebuilding. Spare-parts listings belong to a separate Parts Catalog, so this PDF is not a parts book.
Fuel-system tests and tank service involve gasoline, while brake hydraulic work and engine removal affect machine control and stability. Follow Kawasaki's safety warnings, support the motorcycle as specified, and use the named service tools and test equipment.
