Yamaha Models Covered & Key Technical Specifications

Models: YZ250(K)/LC, YZ250LC, YZ250K1

Sub-models / Variants: USA: YZ250K1 (5DJ1); Canada (CDN), South Africa (ZA): YZ250(K) (5DJ1); Australia (AUS), New Zealand (NZ): YZ250(K) (5DJ4); Europe: YZ250LC (5DJ2)

Trade Names: YZ250

Model Year: 1998


  • Engine displacement: 249 cm³

  • Engine type: Liquid-cooled 2-stroke

  • Compression ratio: 8.7–10.6:1

  • Transmission: Constant mesh 5-speed

  • Fuel type: Premium unleaded (95 RON or higher), except AUS; AUS: unleaded fuel only

  • Lubrication: Premix 30:1 (Yamalube 2-R or Castrol A747)

  • Coolant capacity: 1.14 L (1.20 US qt)

  • Spark plug: BR8EG (NGK)

  • Ignition system: CDI magneto

Yamaha Manual Features & Selected Content Preview

Yamaha’s Owner’s Service Manual, P/N 5DJ-28199-30, covers the 1998 YZ250(K)/LC, including YZ250LC, YZ250K1, and regional YZ250(K) versions. It combines operating information and race maintenance with engine, chassis, and ignition repair procedures.

Searchable Text, Chapter Bookmarks and PDF Contents

Search and diagram detail: OCR text search and embedded bookmarks for all seven chapters are available. Recognition errors can affect individual searches, and small wiring-diagram labels require enlargement for comfortable reading.

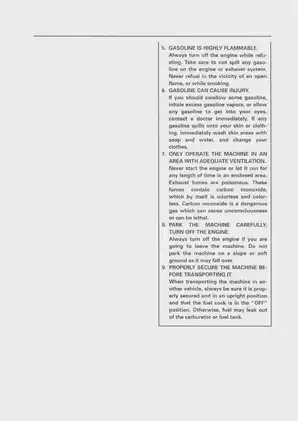

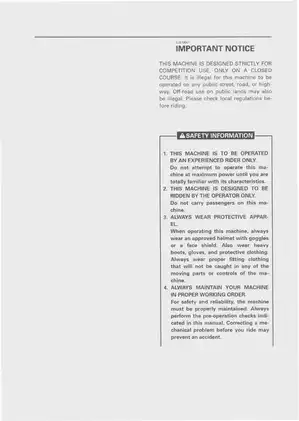

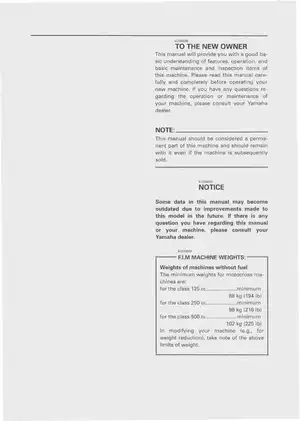

One printable, English-language PDF contains 244 pages, including 12 pages of cover and front matter, one blank numbered page, and one memo page. These pages are already included in the total.


Engine Repair, Chassis Service and Race Tuning

These selected service topics illustrate the manual’s coverage; further subjects include silencer-fiber replacement and storage preparation.

  • Engine internals: Step-by-step procedures for cylinder-head, cylinder, piston, and power-valve service, engine removal, crankcase separation, and crankshaft inspection and replacement.

  • Clutch and transmission: Wet multiple-disc clutch inspection, primary-drive service, kickstarter repair, and transmission, shift-cam, and shift-fork disassembly and reassembly.

  • Carburetor and intake: Keihin PWM38 disassembly, float-height checks, reed-valve inspection, and tuning guidance for jets, needles, air-screw settings, and operating conditions.

  • Cooling system: Radiator removal and inspection, coolant replacement and flushing, pressure testing, and water-pump bearing, seal, and impeller-shaft service.

  • Brakes and running gear: Front and rear caliper and master-cylinder repair, brake bleeding, wheel-bearing replacement, drive-chain inspection, and steering-head service.

  • Suspension: Front-fork disassembly and seal replacement, swingarm and linkage service, plus rear-shock removal, spring replacement, bearing service, and damping adjustments.

  • Ignition diagnosis: Wiring diagrams, component-location illustrations, an ignition fault-finding chart, spark-gap testing, and ignition-coil and CDI-magneto resistance checks.

The repair sections suit mechanically experienced owners and technicians equipped for component measurement and special-tool work; Yamaha recommends dealer maintenance for the front fork.

Engine Reassembly and Bench Inspection

Maintenance specification tables provide factory tolerances for bench inspection. Exploded views, job instruction charts, sectional illustrations, and chapter symbols identify the parts and operations involved in removal and reassembly.

Top-end coverage includes piston-pin clip precautions and a piston-to-cylinder matching chart with size marks and piston color identification. The YPVS governor section covers disassembly, bearing and washer inspection, and reassembly.

The YPVS push-rod warning identifies a piston-to-valve collision risk during bolt removal if the specified locating-pin precaution is ignored.

Crankshaft procedures identify the required separating and installing tools and specifically prohibit driving the crankshaft with a hammer. Transmission inspection covers gear dogs, shift-fork grooves, bearings, and operating checks after assembly.

Fuel Settings and Cooling-System Checks

Carburetor tuning connects throttle opening with the pilot circuit, jet needle, and main jet. Charts relate atmospheric conditions and running symptoms to setting choices, while setting-parts tables identify alternative jets and needles. The main nozzle is press-fitted and is not replaceable.

Water-pump disassembly notes address excessive coolant-level changes, coolant discoloration, and milky transmission oil. The service section covers seal orientation and impeller-shaft installation precautions alongside radiator and cooling-system checks.

Fork Service and Rear-Suspension Limits

Front-fork instructions cover damper-rod and base-valve removal, oil distribution and bleeding, oil-level measurement, and reassembly. Listed tools include the damper rod holder YM-1423/90890-01423 and fork seal driver YM-01442/90890-01442.

The fork assembly warning explains that a dropped damper rod can damage the internal valve.

Steering and swingarm sections include bearing inspection, lubrication, and swingarm side-clearance adjustment. Chassis tuning adds sprocket selection, spring options, rider-sag measurement, and symptom-based suspension-setting charts.

Rear-shock scope: Instructions cover removal, spring and bearing replacement, preload, and external damping adjustments. They do not provide an internal damper rebuild procedure; Yamaha warns against disassembling the nitrogen-filled cylinder or reservoir.

Tracing Ignition Faults

The ignition inspection chart supports fault isolation when the spark plug will not spark. Component tests distinguish connection faults, stop-switch problems, coil faults, and CDI-magneto faults before CDI-unit replacement is considered.

The electrical section pairs its wiring diagram and connector wire-color layout with component illustrations and tester connections. Separate cable-routing diagrams show hose, cable, and harness placement.

Examples of Fastener and Reed-Valve Specifications

Engine torque tables list cylinder-head nuts at 28 Nm and the spark plug at 20 Nm, with separate entries for cylinder-head studs. Fastener data is presented in Nm and ft-lb.

Reed-valve inspection specifies a bending limit of 0.2 mm and includes illustrations for assessing the reed and its stopper.
