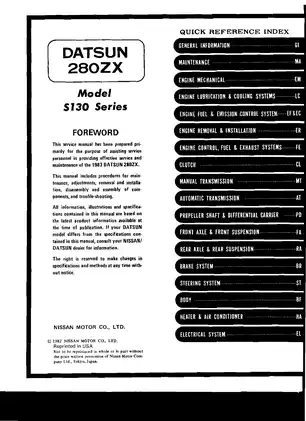

1983 Datsun 280ZX Service Manual (P/N SM3E-S130U0)

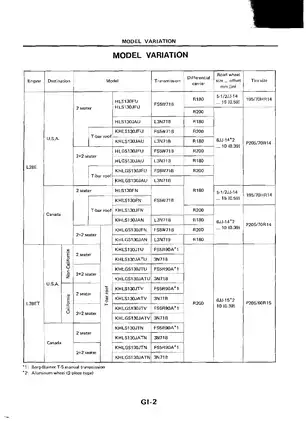

This Nissan factory service manual covers the 1983 Datsun 280ZX S130 series in U.S. and Canadian configurations, including 2-seater and 2+2 bodies with naturally aspirated L28E or turbocharged L28ET engines. Publication No. SM3E-S130U0 identifies the August 1982 edition, reprinted in August 1986.

Bookmarks, Wiring Detail and PDF Contents

Section access and diagram detail: PDF text search is not available. Embedded bookmarks provide access to the service sections and separate harness-diagram groups. Small connector numbers and wire-color codes on the checked harness sheets require zooming.

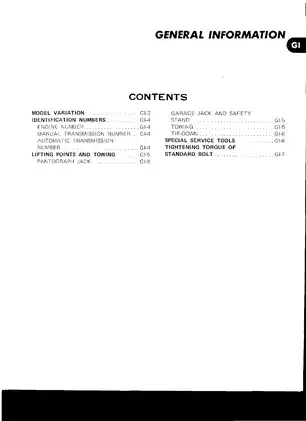

One printable PDF contains 714 pages: front cover and introductory material (3), service sections (689), harness diagrams (20), and rear-cover reference tables (2). All of these pages are included in the total.

• Engine repair: Engine removal, cylinder-head and piston disassembly, internal inspection, timing-chain installation, camshaft checks, and lubrication and cooling-system service.

• Fuel and emissions: Separate E.F.I. and E.C.C.S. diagnostic procedures, sensor and injector tests, fuel-pressure checks, and turbocharger inspection.

• Transmission and clutch: FS5W71B and Borg-Warner T-5/FS5R90A overhaul procedures, automatic-transmission diagnosis and overhaul, and hydraulic clutch service.

• Chassis and brakes: R180/R200 differential adjustment, front and rear suspension repair, wheel-bearing service, disc-brake overhaul, and manual and power-steering procedures.

• Electrical troubleshooting: Starting, charging and ignition tests, body-circuit diagnosis, component-location views, and separate turbo and non-turbo harness diagrams.

• Heating and air conditioning: Heater-unit service, manual and automatic temperature-control diagnosis, refrigerant-system testing, and Hitachi MJ-167 compressor repair.

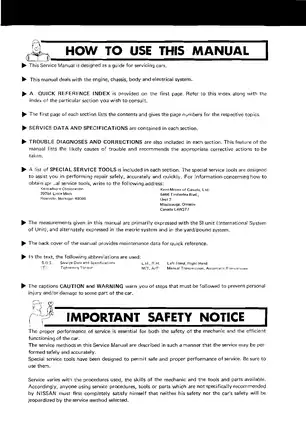

Written primarily for service personnel, this manual assumes workshop knowledge and access to the measuring equipment and special tools specified for the job.

Engine Repair and Maintenance

Step-by-step instructions cover valve-clearance adjustment, ignition timing and front wheel-bearing service. Normal and severe-use maintenance schedules distinguish routine checks from work requiring shorter service intervals.

Internal engine coverage extends to valve guides and seats, piston rings, crankshaft bearings, cylinder inspection and camshaft alignment. The turbo engine receives separate valve-rocker oil-pivot checks. Compression-pressure specifications distinguish turbo and non-turbo engines.

Timing-chain illustrations show alignment marks and the chain-support tool KV10105800 used during cylinder-head removal. The assembly cautions address valve-to-piston contact that can result from rotating the crankshaft and camshaft independently.

Oil-pump inspection, turbocharger oil-cooler plumbing, thermostat testing and cooling-system pressure checks have their own procedures. General M6–M14 bolt-torque tables accompany component-specific tightening data.

Before undertaking heavy mechanical work or lifting the vehicle, always verify proper jack points and review standard workshop safety procedures to prevent severe injury or component damage.

E.F.I., E.C.C.S. and Turbocharger Diagnosis

Separate diagnostic paths help match the tests to the installed fuel-management system before components are condemned. Driveability, rough-idle, starting and stalling charts connect symptoms with air-leak checks, ignition tests and fuel-system inspection.

Electrical inspection sections identify the E.F.I. analyzer J-25400 and E.C.C.S. analyzer J-28835. For E.C.C.S., the manual also provides individual component checks when the analyzer is unavailable.

The turbocharger section covers removal, installation, shaft-play inspection and bypass-controller testing. The turbocharger is not to be disassembled; the manual directs replacement of a faulty assembly. Crankcase ventilation, E.G.R., evaporative emissions and catalytic-converter operation are also documented.

Transmission, Differential and Chassis Service

Manual-transmission chapters cover gears, shafts, synchronizers, bearings and oil seals. Automatic-transmission material distinguishes L3N71B and 3N71B specifications and includes clutch-pack work, valve-body service, line-pressure testing and road-test symptom charts.

R180 and R200 differential procedures explain pinion-height adjustment, bearing preload, backlash and tooth-contact patterns. Propeller-shaft coverage includes inspection and balance correction; its journal is not designed for disassembly.

Brake instructions distinguish NABCO and TOKICO master cylinders, whose repair kits and components are not interchangeable. Steering coverage includes gear and pump service, while the collapsible steering column is replaced as an assembly rather than dismantled.

Electrical, Body and Climate-Control Details

Ignition diagnosis includes distributor pick-up-coil resistance and output checks. Body procedures cover doors, glass, T-bar roof hardware and interior components.

Illustrated references include the E.F.I. Wiring Diagram, E.C.C.S. Circuit Diagram, automatic-transmission Oil Pressure Circuit Diagram, Engine Lubrication Circuit, and automatic air-conditioner Vacuum Diagram. Exploded component views, diagnostic flowcharts and location drawings support fault tracing and reassembly.

Climate-control chapters distinguish manual controls from automatic temperature control, with blower, compressor-clutch and vacuum-control tests.

Examples of Valve, Ignition and Cooling Specifications

For the non-turbo L28E, the valve-adjustment section specifies hot clearances of 0.25 mm intake and 0.30 mm exhaust. These values accompany the illustrated valve-clearance procedure.

Ignition specifications list a spark-plug gap of 1.0–1.1 mm. Approximate coolant refill capacities distinguish 10.5 liters with the reservoir from 9.7 liters without it, rather than presenting one capacity without its filling condition.
