1994 Honda GL1500 Gold Wing Aspencade SE Interstate Factory Service Manual (P/N 61MAF00)

• Coverage is limited to the 1994 Honda GL1500 Gold Wing in Aspencade (A), SE, and Interstate (I) trim. Most factory procedures use the Aspencade as the base model, with SE and Interstate differences identified where they apply.
• The 761-page PDF combines a 565-page Honda Service Manual with a 196-page Electrical Troubleshooting Manual (ETM). The service portion is organized into 20 sections; the matched Honda/Helm catalog number is 61MAF00.
• Engine repair coverage includes removal and installation, timing-belt service, camshaft and cylinder-head disassembly, valve-guide and seat work, hydraulic valve-adjuster servicing, piston and connecting-rod work, crankshaft bearing selection, and oil-pump inspection.
• Fuel and cooling procedures cover carburetor removal, separation, inspection, reassembly, synchronization, and pilot-screw adjustment, along with fuel-pump testing, cooling-system pressure checks, radiator and fan service, thermostat and water-pump repair, and temperature-sensor diagnosis.
• Drivetrain and chassis sections address hydraulic clutch bleeding and component repair, crankcase separation, transmission disassembly and inspection, final-drive backlash and tooth-contact checks, fork and shock service, the on-board air compressor, steering, brakes, and wheel removal and installation.
• The ETM supplies model-specific circuit schematics, connector and ground references, component-location photographs, symptom charts, test sequences, and fault-isolation procedures for the GL1500 electrical systems.

Mechanical and Electrical Scope

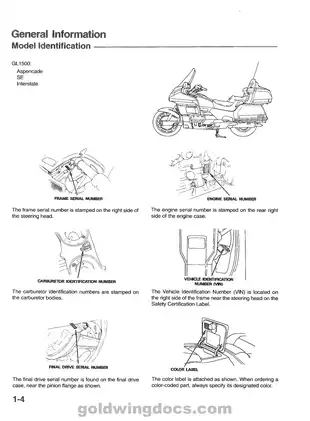

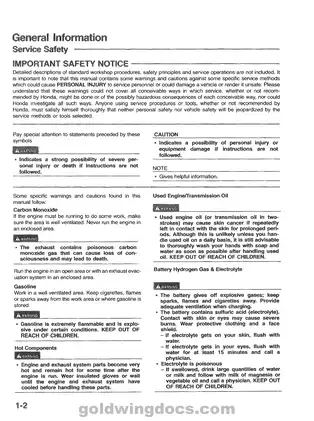

This factory manual set is suited to professional technicians and experienced owners who already understand standard workshop practice. Honda states that routine shop procedures and general safety principles are not taught here, and many of the deeper repairs call for presses, pullers, vacuum and pressure equipment, or electrical test instruments.

The maintenance section provides the factory schedule plus procedures for engine oil and filter service, oil-pressure testing, carburetor synchronization, cylinder-compression checks, cooling-system inspection, brake and clutch checks, reverse operation, suspension pressure, and steering-head bearings. Separate chapters then move into full repair work rather than stopping at periodic service.

Fuel-system coverage extends beyond the dual carburetors. It includes the automatic fuel valve, fuel filter, pump and relay, reserve sensor, engine control module, Intake Air Shot Air system, Carburetor Air Jet control, intake-air-temperature circuit, PAIR system, California evaporative-emissions equipment, and cruise control. The related chapters combine functional descriptions with component tests, vacuum checks, circuit diagrams, adjustment data, and installation routing.

Internal engine and driveline work is documented to factory depth. The manual provides connecting-rod and main-bearing selection data, hydraulic valve-adjuster shim selection and bleeding, clutch master and slave cylinder repair, transmission shaft and gear inspection, and final-drive spacer selection following backlash and gear-tooth contact checks. Fairing, windshield, trunk, saddlebags, fenders, lighting, instruments, radio/cassette equipment, speakers, antenna, and CB components are also covered where fitted.

Electrical Troubleshooting and Model Differences

The ETM treats each circuit as a current path from power source to ground and identifies connectors, splices, grounds, switch positions, and shared branches. Representative schematics include Power and Ground Distribution, Engine Control, Starting and Reverse, Cruise Control, Automatic Level Control, and Radio/Cassette/CB circuits. Component-location photographs and two cross-reference indexes help trace a device from the schematic to its physical position on the motorcycle.

Model-specific material is important on this Gold Wing set. The service text marks Aspencade, SE, and Interstate deviations, while the ETM separates Aspencade/SE and Interstate applications where the wiring differs. It also identifies equipment-specific coverage such as the Aspencade/SE LCD and speed-sensor circuits, SE cornering and spoiler lighting, automatic level control, and the different radio and CB configurations.

Shop Data, Tools, and Service Cautions

Reference material includes component-specific torque drawings, general torque tables, service limits, fluid capacities, pressure and vacuum test specifications, electrical output and resistance checks, wear limits, bearing and shim selection data, and final adjustment specifications. The tool lists name Honda fixtures by number, including hydraulic tappet bleeder 07973-MJ00000, shim selection gauge 07974-MG90000, clutch center holder 07HGB-001000A, and pinion joint holder 07924-ME40000.

The repair cautions are specific to this machine. The timing-belt chapter warns that turning a camshaft after belt removal can bend valves, while oil or cleaning solvent on the tensioners can damage the belts. After front-wheel installation, the manual also requires brake-caliper clearance to be checked because insufficient clearance can damage the disc and reduce braking efficiency.

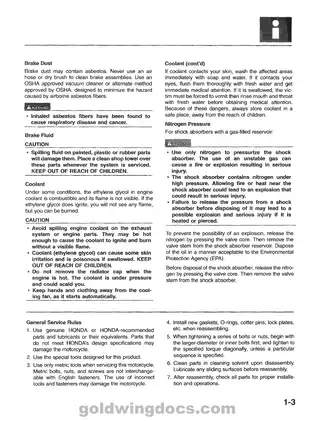

Brake and clutch work involves fluid that can damage painted, plastic, and rubber parts, and the rear shock section addresses stored nitrogen pressure. Follow the manual's system-specific warnings and use the specified workshop equipment before carrying out these repairs.
