1993–2000 Honda TRX300EX / Sportrax 300EX ATV Service Manual

This Honda service manual covers maintenance, diagnosis, and repair of the 1993–2000 TRX300EX sport ATV. Its 20 sections address the air-cooled engine, drivetrain, chassis, and electrical system.

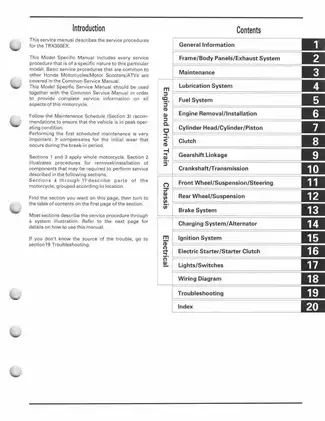

• Engine repair: Engine removal and installation, cylinder-head and piston service, camshaft timing, cam-chain tensioner work, crankcase separation, and crankshaft/balancer-shaft installation.

• Clutch and transmission: Multi-plate wet-clutch removal, primary-drive service, mainshaft and countershaft disassembly, shift-drum work, and reverse-selector linkage procedures.

• Fuel and lubrication: Piston-valve carburetor disassembly, throttle-valve synchronization, U.S. pilot-screw and high-altitude adjustments, and oil-pump removal and assembly.

• Chassis and brakes: Steering-shaft bearings, suspension-arm bearings, shock assemblies, rear axle and swingarm service, brake-pad replacement, and caliper/master-cylinder disassembly.

• Electrical diagnosis: DC-CDI/ICM checks, charging-system tests, starting-interlock fault tracing, starter-motor disassembly, and starter one-way-clutch removal and installation.

• Workshop references: Wiring and system diagrams, cable-routing views, troubleshooting flowcharts, maintenance schedules, torque tables, wear limits, and special-tool references.

This manual suits mechanically qualified users with proper tools and service data; Honda reserves certain steering and wheel maintenance tasks for authorized dealers.

Model-Specific Procedures and Required Companion Manual

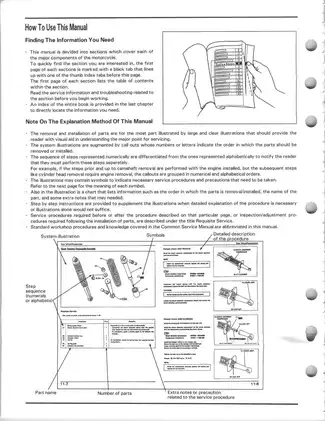

Honda specifies using this publication with the separate Common Service Manual, which is not included. General workshop methods are abbreviated here; oil-pump inspection, valve-guide replacement, wheel alignment, and several electrical-component inspections refer to that companion manual.

Engine, Clutch, and Transmission Work

The engine-removal section distinguishes work possible with the engine in the frame from jobs requiring removal. Cylinder-head, piston, camshaft, clutch, and oil-pump service can be performed in the frame; crankshaft, balancer-shaft, and transmission work requires engine removal.

Camshaft installation includes timing-mark illustrations and tensioner-stopper tool 07NMG-MY90100. Internal drivetrain coverage extends to reverse-idler components, shift forks, bearing replacement references, and crankshaft/balancer alignment.

Reference tables provide cam-lobe heights, valve-spring free lengths, gear ratios, gear/bushing/shaft tolerances, and oil-pump rotor clearances. The oil-filter procedure warns that reversed filter installation can damage the engine.

Carburetor Adjustment and Maintenance

Throttle-valve synchronization concerns the relationship between the butterfly and piston throttle valves in the carburetor. The U.S. adjustment sections cover the pilot-screw idle-drop method and high-altitude jetting; overtightening the pilot screw can damage its seat.

The Lubrication System Diagram traces oil delivery to the engine and transmission. Maintenance coverage includes reverse-lock adjustment, chain and slider checks, steering-shaft holder inspection, and spark-arrester service.

Suspension, Bodywork, and Hydraulic Brakes

Body-panel, fuel-tank, and exhaust-removal instructions support access for other repairs, with separate noise-emission control notes. Suspension procedures cover spherical arm bearings, swingarm pivot bearings, rear axle locknuts, and front and rear shock spring/damper assemblies.

Brake exploded views identify caliper seals, sliding hardware, master-cylinder parts, and the rear parking-brake mechanism. Bleeding is listed as required service, but this file does not provide a standalone bleeding procedure.

Review the manual’s ventilation precautions for engine-running tests and its nitrogen-pressure warnings before shock-absorber work.

Charging, Ignition, and Starting Faults

Charging and ignition system diagrams accompany connector checks and troubleshooting flowcharts. The starting-system charts relate clutch, neutral, and reverse-switch states to starter operation, helping distinguish an interlock fault from a motor or relay fault.

The Wiring Diagram includes wire-color codes and switch-continuity tables. Cable & Harness Routing and System Location views support component identification; spark-plug selections, battery charging specifications, and electrical resistance tables supply the related reference data. Ignition timing is checked rather than adjusted.

A Sample of Valve, Fastener, and Charging Specifications

These examples are a small selection of the manual’s adjustment, fastening, and electrical test data.

Intake and exhaust valve clearance is 0.10 ± 0.02 mm with the engine below 35°C/95°F. Cylinder-head flange cap nuts are specified at 40 N·m with oil on the threads and flange surfaces.

The primary drive gear lock nut is specified at 70 N·m with oiled threads and flange surfaces; its notes identify left-hand threads and staking. Alternator charging-coil resistance is 0.2–0.6 Ω at 20°C/68°F.

Bookmarked PDF and Page Breakdown

Search, navigation, and diagram detail: PDF text search is unavailable. Embedded bookmarks cover the contents and all 20 sections. Small wire-color labels and switch-table details in the main wiring diagram are readable when enlarged.

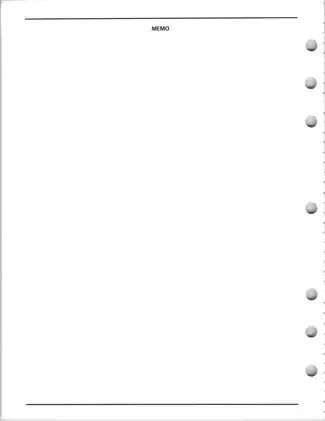

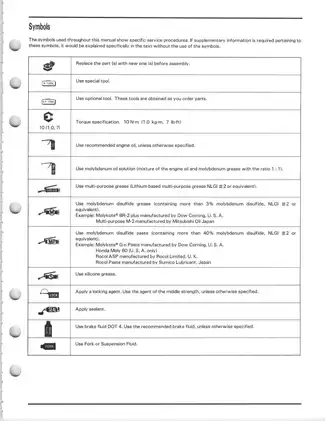

The download contains one printable English PDF with 209 pages: 195 technical/reference pages, three introductory pages, one cover, and ten memo pages. All are included in the stated total.
