Honda TRX200SX FourTrax ATV Service Manual (1986–1988)

211 Pages • Printable PDF • 28.71 MB • Download

5.0starstarstarstarstar(1)
$18.49 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Honda Models Covered & Key Technical Specifications

Models: TRX 200SX FourTrax

Model Years: 1986–1988 (1986, 1987, 1988)


  • Engine displacement: 199.1 cm³ (12.15 cu in)

  • Engine type: Air-cooled 4-stroke, single cylinder

  • Transmission: 5-speed constant mesh with reverse, wet multi-plate semi-automatic clutch

  • Compression pressure: 1,300 ± 100 kPa (184 ± 14 psi)

  • Engine oil capacity: 1.9 liters (2.0 US qt) at disassembly

  • Centrifugal clutch lock nut torque: 86–94 Nm (62–68 ft-lb)

  • Fuel tank capacity: 8.5 liters (2.2 US gal)

  • Tire pressure (Front): 3.0 psi (21 kPa)

  • Electrical fuse: 15 A

Honda Manual Features & Selected Content Preview

Honda factory service manual for the 1986–1988 TRX200SX FourTrax, covering maintenance, diagnosis, and component repair for this chain-driven ATV.

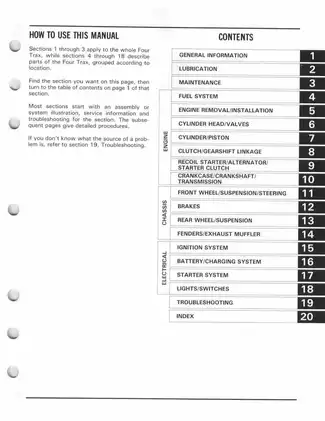

PDF Bookmarks and Wiring Detail

Search, navigation, and diagrams: PDF text search is unavailable. Embedded bookmarks provide access to the contents, service chapters, wiring diagram, and index. Small wire-color codes and switch-table labels in the full wiring diagram require zooming for comfortable reading.

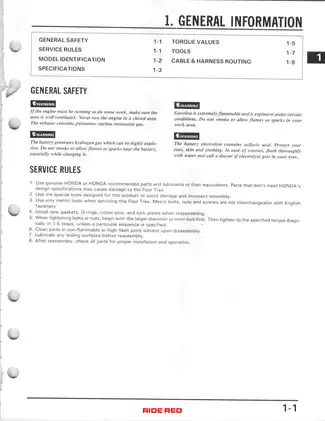

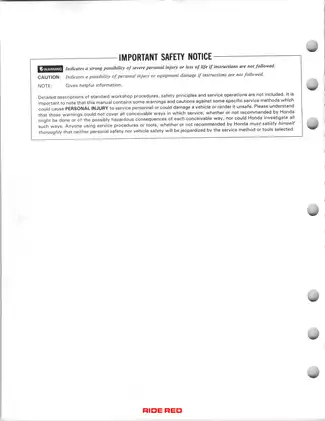

One printable English-language PDF contains 211 pages, including the cover, safety notice, contents page, and nine memo pages.


Engine Rebuilds, Drum Brakes, and Electrical Diagnosis

These selected service topics outline the repair coverage rather than reproduce the full contents. Other included subjects range from fuel-strainer cleaning to spark-arrester maintenance.

  • Engine repair: Step-by-step procedures for engine removal and installation, cylinder-head disassembly, valve-guide replacement, valve-seat refacing, camshaft timing, and cylinder/piston inspection.

  • Fuel and lubrication: Carburetor removal and overhaul, high-altitude jetting, lubrication-system troubleshooting, oil-filter rotor and screen cleaning, and oil-pump inspection.

  • Clutches and transmission: Centrifugal, manual multi-plate, and one-way clutch service; gearshift and reverse linkage repair; transmission disassembly and internal reassembly.

  • Steering and suspension: Tie-rod adjustment, front-arm service, front and rear shock disassembly, rear-axle repair, and swingarm pivot-bushing replacement.

  • Drum brakes: Front hydraulic and rear mechanical brake repair, front brake-fluid draining, filling and bleeding, plus rear brake and parking-brake adjustment.

  • Electrical diagnosis: Ignition, charging, starter, lighting, and switch tests, supported by system schematics, component inspection charts, and the complete vehicle wiring diagram.

The manual suits mechanically qualified users with proper workshop tools; Honda recommends authorized-dealer service for wheel and steering work.

Top-End Repair and Carburetor Setup

Service access: Cylinder-head work can be performed with the engine installed. The top-end chapters cover camshaft and decompressor service, rocker-arm inspection, cylinder measurement, piston and ring checks, and final assembly.

Valve-seat inspection and refacing are documented separately from valve replacement: burned or badly worn valve faces are not treated as candidates for grinding. Piston illustrations identify ring-mark orientation, end-gap spacing, and piston direction, addressing assembly errors that can damage the piston or rings during cylinder installation.

Carburetor detail: The fuel-system chapter identifies the PD63A dual-valve carburetor and covers throttle-valve service, float-level inspection, air-screw and idle adjustment, and fuel-tank and air-cleaner removal. Standard and high-altitude settings are distinguished.

Clutches, Crankshaft, and Starting Drives

The centrifugal-clutch lock nut has left-hand threads and is staked after tightening; forcing it in the wrong direction can damage the crankshaft threads.

Transmission assembly drawings identify oil-hole alignment in the C1, C2, and CR gear bushings and the orientation marks on the shift forks. These references support checking lubrication passages and gear-selection components during reassembly.

Crankshaft and transmission repair require engine removal and crankcase separation. Coverage continues through transmission-bearing replacement, crankshaft inspection, and crankcase assembly.

A separate drive-side chapter documents recoil-starter rope and spring service, flywheel removal, alternator/stator replacement, starter-clutch inspection, and neutral/reverse switch replacement.

Steering, Suspension, and Brake Components

Chassis coverage extends to the handlebar and throttle housing, kingpins and knuckles, steering shaft and bearings, and rear-axle bearings. Tire removal, repair and mounting procedures accompany circumference checks and toe-in inspection.

Brake inspection goes beyond shoe replacement. The manual covers front master-cylinder and wheel-cylinder inspection, drum and lining measurements, front drum-bearing replacement, and rear brake-pedal and cable service.

Front and rear fender removal, exhaust-pipe removal, and muffler installation are also illustrated.

Ignition, Charging, and Fault Tracing

Ignition checks: Tests cover the ignition coil, alternator exciter coil, CDI unit, and pulse generator. Separate SHINDENGEN and OKI CDI inspection tables specify the required testers. Ignition timing is checked rather than adjusted.

Charging and starting: Battery inspection and charging are followed by a battery leak-down voltage check, charging-output tests, regulator/rectifier checks, and alternator charging-coil inspection. Starter-motor disassembly includes brush, commutator, armature, and case checks, followed by starter-relay testing.

Headlight, taillight, indicator-lamp, neutral/reverse-switch, ignition-switch, and handlebar-switch procedures include continuity information. The final troubleshooting charts connect hard starting, power loss, poor low- or high-speed performance, and handling symptoms with diagnostic checks and probable causes, helping organize fault tracing across systems.

Illustrated References and Workshop Tools

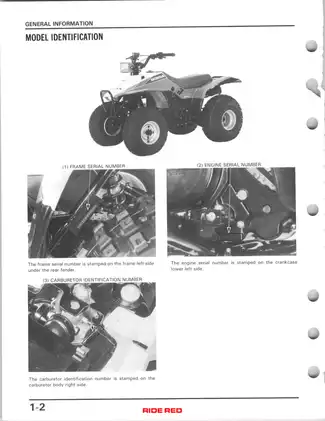

General Information illustrates frame, engine, and carburetor identification locations. Maintenance schedules, torque tables, fluid capacities, clearances, service limits, adjustment data, and electrical test specifications support the repair chapters.

Illustrations include Cable & Harness Routing maps, the lubrication section view and Lubrication Points diagram, clutch/gearshift and crankcase/crankshaft/transmission exploded assemblies, and ignition, charging, and starter schematics.

Tool references include clutch holder 07GMB-HB30100, clutch puller 07GMC-HB30100, steering lock-nut wrench adapter 07GMA-HA70200, and shock-absorber compressor 07959-3290001, plus valve-guide, valve-seat, bearing, flywheel, and tire-service tools.

ATV repair involves fuel, brake fluid, electrical circuits, spring-loaded assemblies, brake dust, and a machine that must be securely supported. The manual includes precautions for battery isolation, compatible brake fluid, brake-dust control, and the holding or compression tools required for clutches, recoil starters, shocks, and valves.

Valve-Clearance and Float-Level Examples

Intake and exhaust valve clearance is specified as 0.08 mm (0.003 in) with the engine cold, below 35°C/95°F.

The carburetor section specifies a float level of 14 ± 1 mm (0.55 ± 0.04 in), with the float valve seated and the float arm just touching the valve.
