Yamaha YZF-R1 (14B) 2009–2013 Service Manual (P/N LIT-11616-22-78)
526 Pages • 1 Printable PDF (English) • Download
Yamaha Models Covered & Key Technical Specifications
Models & Model Codes: YZF-R1, YZF-R1Y (14B4/14B7, USA), YZF-R1YC (14B5/14B8, California)
Model Years: 2009–2013 (2009, 2010, 2011, 2012, 2013)
-
Engine: Liquid-cooled 4-stroke, DOHC, 998 cc, forward-inclined parallel 4-cylinder
-
Transmission: Constant mesh 6-speed
-
Fuel System: Electronic fuel injection (FI) with YCC-T and YCC-I
-
Compression Ratio: 12.70:1
-
Idle Speed: 1150–1250 r/min
-
Engine Oil Capacity (with filter): 3.93 L (4.15 US qt, 3.46 Imp.qt)
-
Spark Plug Type: NGK LMAR9E-J
Yamaha Manual Features & Selected Content Preview

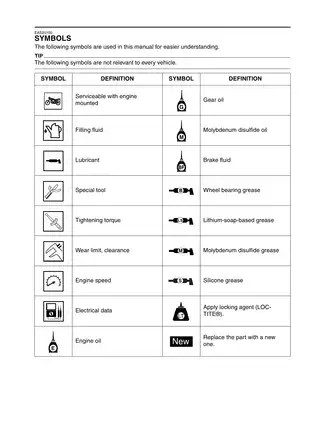

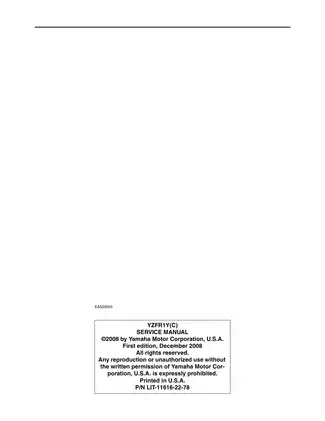

Yamaha's service manual for the 2009–2013 YZF-R1 covers the YZF-R1Y and YZF-R1YC, with USA and California specifications. This is the first edition, December 2008, P/N LIT-11616-22-78, with cover identifier 14B-28197-10.
English PDF, Bookmarks and Wiring Sheets
Text search and diagram navigation: The service text is searchable, with embedded bookmarks for the main chapters and major sections. Many drawing labels are not searchable; small wiring and connector markings require zooming.
Supplied as one printable English file: a 526-page PDF comprising 524 pages of the main manual, including its covers and blank pages, plus two appended YZFR1Y(C) wiring-diagram sheets. One sheet is monochrome and the other is in color; both are already included in the total.
Engine Rebuilding, YCC-T/YCC-I and Electrical Diagnosis
The following selected sections highlight the repair and diagnostic coverage rather than reproduce the full contents. Other topics include air-induction reed-valve checks and starter-motor brush and commutator inspection.
-
Engine repair: Engine removal, valve clearance adjustments, camshaft timing, crankcase disassembly, crankshaft and balancer inspection, and connecting-rod/piston service.
-
Clutch and transmission: Clutch replacement, plate inspection and stack checks, shift-fork and gear inspection, and transmission shaft assembly.
-
Fuel and intake: Throttle body synchronization, primary and secondary injector testing, fuel-pressure checks, and YCC-T/YCC-I operation and component checks.
-
Brakes and chassis: Front fork disassembly, hydraulic brake bleeding, steering head adjustment, wheel service, and drive chain slack adjustments.
-
Electrical diagnostics: ECU self-diagnostic function, fault code references, sensor and actuator checks, stator coil testing, and ignition, starting and charging troubleshooting.
-
Cooling and lubrication: Radiator pressure testing, thermostat inspection, water-pump seal service, oil-pump repair, and engine oil-pressure checks.

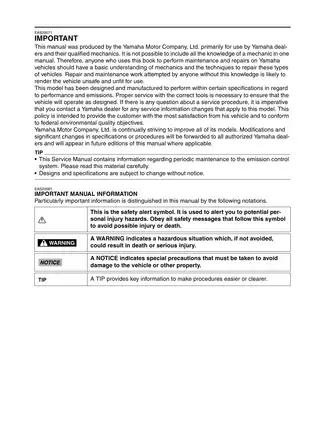

Written primarily for Yamaha dealers and qualified mechanics, this manual assumes a working knowledge of mechanical repair and access to the specified service tools.
Engine and Drivetrain Repair
The engine section follows the DOHC four-cylinder through removal, internal inspection and assembly with step-by-step procedures. Bearing-selection tables, Plastigauge clearance checks, balancer timing and connecting-rod bolt angle-tightening procedures support engine rebuilding.
Compression-test interpretation links test results to possible piston-ring wear or faults involving the pistons, valves or cylinder-head gasket.
Valve-service instructions distinguish titanium intake valves from exhaust valves and explain their different lapping and replacement requirements. The manual warns that mixing up connecting rods and big-end bearings can alter running clearances and damage the engine.
Exploded clutch and transmission views identify assembly order, lubrication points and parts requiring replacement. Clutch repair includes plate-stack measurements and selection of replacement plates.
YCC-T, YCC-I and Fuel Injection
Fuel-system procedures distinguish primary injectors in the throttle bodies from secondary injectors in the air filter case. Coverage includes intake-funnel operation, throttle and accelerator position sensor adjustment, and the California rollover valve.
Synchronization guidance identifies the reference throttle body and the separate vacuum requirement for cylinder No. 2, helping avoid an incorrect equal-vacuum adjustment. Referenced tools include the YU-44456 synchronizer and YM-03176 fuel-pressure adapter.
Instrument instructions explain selection and operation of the STD, A and B D-mode settings.
Suspension, Steering and Brakes
The chassis section details rebound and compression damping settings for the front telescopic forks and the link-type rear shock, including separate left/right fork functions. Front fork rebuild notes identify cap-bolt collar projections that can break when an unsuitable tool is used during disassembly.
Rear shock coverage includes removal, inspection, replacement and linkage service, with handling precautions for the nitrogen charge. Internal shock rebuilding is outside this manual's scope.
Brake sections cover caliper and master-cylinder repair. Steering procedures cover bearing inspection and adjustment.
Electrical Fault Tracing
The manual explains how to read ECU fault codes directly from the multi-function meter and use diagnostic mode for sensor and actuator checks. Fault-code tables link symptoms with wiring checks and reinstatement methods, helping distinguish a connector or harness fault from a failed component before replacement.
Ignition System, Electric Starting System, Charging System and Fuel Injection System circuit diagrams support the test procedures. Steering-damper solenoid checks and ECU-to-meter communication faults are also covered.
Cooling, Maintenance and Service Data
Radiator-cap testing, thermostat checks and water-pump seal replacement are supported by Cooling System Diagrams. The Engine Oil Lubrication Chart traces oil supply to serviced components.
Technical references include tightening values for engine components and chassis fasteners. Periodic maintenance charts, fluid-capacity tables, spark-plug gap data and wear limits support routine service and inspection. Electrical references include sensor voltage and resistance specifications.
Engine, brake and suspension work requires strict adherence to factory specifications and the use of proper shop safety gear to prevent component failure or personal injury.
Examples of Valve-Clearance and Injector Test Data
The valve-adjustment section specifies cold clearances of 0.11–0.20 mm for the intake valves and 0.21–0.25 mm for the exhaust valves, with valve-pad selection tables for correcting out-of-range measurements.
For both primary and secondary injectors, the electrical inspection section specifies 12.0 Ω at 20 °C (68 °F). The injector test includes terminal identification and tester connections alongside the resistance specification.
