Yamaha Models Covered & Key Technical Specifications

Models & Model Codes: F350TR (6AW), LF350TR (6AX)

Sub-models / Variants: 4 stroke regular rotation (F), 4 stroke counter rotation (LF), 25 inch transom (X / UL), 30 inch transom (U / SUL), power trim and tilt (T), remote control (R)

Model Year: 2007

Serial Numbers: 1000001–

Serial Breaks (starting and accessory battery fuses): F350TR: 1000001–1001013 (80 A), 1001014– (60 A); LF350TR: 1000001–1000439 (80 A), 1000440– (60 A)


  • Engine type: 4-stroke, DOHC, 60° V8, 32-valve

  • Total displacement: 5,330 cm³ (325.2 cu. in)

  • Maximum output: 257.4 kW (350 HP) at 5,500 r/min

  • Compression ratio: 9.6 : 1

  • Firing order: 1–8–4–3–6–5–7–2

  • Engine idle speed: 600–700 r/min

  • Maximum generator output: 50 A

  • Engine oil capacity (with filter): 8.0 L (8.45 US qt)

  • Fuel type: Premium unleaded gasoline (minimum 94 RON / 89 PON)

  • Gear ratio: 1.73 (26/15)

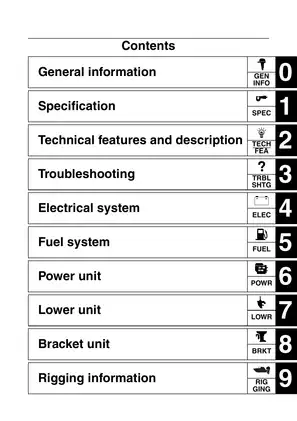

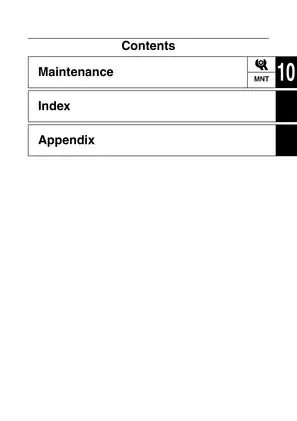

Yamaha Manual Features & Selected Content Preview

Yamaha’s F350 and LF350 outboard service manual, P/N LIT-18616-03-02, is the first edition issued in July 2007. It covers maintenance, diagnosis, and repair for the regular-rotation F350 (6AW) and counter-rotation LF350 (6AX).

Searchable PDF and Foldout Wiring Reference

Search, bookmarks, and diagram detail: The manual text is searchable, with embedded chapter and section bookmarks. The wiring bookmark opens the legend. The wide color diagram is on PDF p. 543, where small connector labels and pin numbers are readable when zoomed in.

The download is one printable English PDF with 549 pages, including the covers, front matter, four blank pages, and four memo pages. The total also includes the color wiring diagram and six pages of lower-unit shim-selection tables.


Outboard Diagnostics, Repair, and Rigging

These are selected service topics. The manual also covers propeller selection and procedures for storing the outboard.

  • Power unit: Removal and installation, cylinder-head and crankcase disassembly, valve-guide replacement, valve-seat refacing, timing-belt replacement, and valve-clearance adjustment.

  • Fuel system: Fuel-pressure and regulator tests, vapor-separator servicing, low-pressure pump disassembly, injector checks, and fuel-rail installation.

  • Electronic diagnosis: YDIS troubleshooting, ECM and sensor circuit checks, ignition and charging tests, starter-motor overhaul, and Digital Electronic Control fault tracing.

  • Lower unit: Separate regular- and counter-rotation procedures for gears, bearings, propeller shafts, and water pumps, with backlash measurement and shim selection.

  • Bracket and power trim and tilt: Steering-arm and bracket service, hydraulic-pressure checks, pump and cylinder disassembly, motor inspection, and bleeding on or off the outboard.

  • Rigging and maintenance: Outboard mounting, single- and twin-engine network layouts, battery wiring, tilt-limiter setup, predelivery checks, and periodic service schedules.

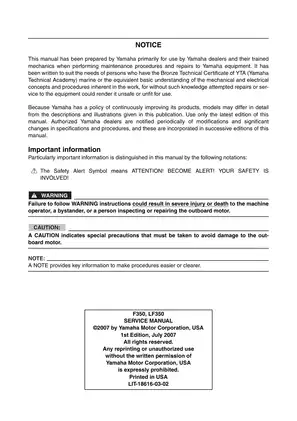

Yamaha wrote this manual primarily for dealers and trained mechanics with Yamaha Technical Academy Marine Bronze-level knowledge or an equivalent mechanical and electrical background.

Powerhead Repair and Timing

The manual includes piston, camshaft, and valve inspection criteria, crankpin and main-bearing selection tables, and factory tightening sequences. Power-unit removal specifies engine lifting eye 90890-06820 and balance hanger 90890-06822.

Timing coverage includes Variable Camshaft Timing, oil-control valves, belt alignment, and flywheel installation with new bolts. The manual warns about piston-to-valve contact if the crankshaft or driven sprockets turn with the belt removed, and about impeller damage from counterclockwise flywheel rotation during inspection.

Fuel Delivery and Cooling

Fuel-system coverage includes the pressure regulator, fuel cooler, vapor separator, canister, and vapor shut-off valve, with separate routing views for fuel, vapor, and cooling hoses. Thermostat testing and cooling-passage checks accompany the explanation of water-wall cooling around the muffler.

Follow the manual’s pressure-release precautions for fuel-line and vapor-separator service. Use its specified lifting provisions when handling heavy engine assemblies.

YDIS and Control-System Fault Tracing

The troubleshooting charts link fault codes and symptoms to circuit and component checks, including faults that do not set a code. That helps a technician distinguish wiring or sensor faults from mechanical causes before choosing the next test.

The manual explains electronic fuel injection control, ignition timing, and knock detection through the Ionic Current Detection Module. Circuit diagrams, ECM coupler layouts, and the foldout color wiring diagram support connector and harness tracing.

YDIS functions include stationary and active tests, recorded-data review, Digital Electronic Control reset, and tilt-limiter setup. The diagnostic procedures call for YDIS 1.30 or later and identify connecting kit 60V-85300-04-00. The manual refers to the separate YDIS instruction manual for details on its displays and graphs.

Gearcase, Bracket, and Rigging Work

The regular- and counter-rotation gearcases use different gear and shim assignments. The LF350 section also covers propeller-shaft shim T4. The appendix provides separate pinion calculations and shim-adjustment tables for the two configurations.

Power trim and tilt hydraulic diagrams show ram operation. The repair sections cover the gear pump, relief valves, and trim and tilt cylinders. Bracket service covers the upper case, steering arm, clamp bracket, and swivel bracket.

The digital network diagrams show single- and twin-engine configurations. Battery diagrams cover layouts with and without a house battery. Command Link gauge installation is covered in a separate setup manual.

A Preview of Engine Clearances and Fuel-Pressure Data

For both models, the cylinder head warpage limit is 0.08 mm. Intake valve clearance is 0.20 ± 0.03 mm with the engine cold.

Crankshaft journal oil clearance varies by position: 0.026–0.051 mm at J1 and J3, 0.038–0.063 mm at J2 and J4, and 0.032–0.057 mm at J5. The overhaul section pairs these checks with main-bearing selection tables.

For fuel-pressure diagnosis, the manual gives 260 kPa as reference data with the engine warmed up and idling steadily.
