Jeep Cherokee XJ 1997 Factory Service & Repair Manual

Factory service and repair information for the 1997 Jeep Cherokee XJ covers 2WD and 4WD configurations, with 2.5L and 4.0L gasoline engine chapters and integrated 2.5L VM turbo-diesel supplemental sections. LHD and RHD distinctions are included where service procedures differ.

Searchable PDF with Detailed Bookmarks

Text search and diagram detail: Embedded text search and PDF bookmarks provide access to service topics and diesel supplemental material. Small wiring-diagram labels are best read with zooming.

The ZIP download contains one printable, English-language PDF. Its 1,724 pages include 38 blank separator and end pages. The Introduction is positioned after the engine chapters at the end of the file.

Engine, Drivetrain and Vehicle-System Service

These highlights show a selection of the manual’s contents, rather than a complete table of contents. Further topics include clutch hydraulic-linkage replacement and instrument-panel diagnosis.

• Gasoline engine repair: Step-by-step engine removal, cylinder-head and valve work, timing-chain and camshaft service, piston and bearing fitting, oil-pump service, and rear-main-seal replacement.

• Transmission and four-wheel drive: AX5 and AX15 manuals, 30RH and AW-4 automatics, and NV231 Command-Trac/NV242 Selec-Trac transfer cases, with internal repair, linkage adjustment, band adjustment, and cooler flushing.

• Driveline, chassis and brakes: Propeller-shaft vibration and angle checks, differential setup, wheel alignment, suspension repair, steering pump/gear/column service, base-brake bleeding and machining, and ABS service.

• Fuel, emissions and diesel systems: Gasoline fuel-pressure and injector testing, PCM inputs/outputs, EVAP and DTC information, plus diesel injection-pump timing, fuel-system bleeding, glow-plug checks, and turbocharger service.

• Electrical troubleshooting: Starting, charging, power distribution, grounds, transmission control, ABS, HVAC, airbags, lighting, and power accessories, supported by wiring diagrams and connector references.

• Body and climate control: Stationary glass, doors, liftgate, seats and trim, water-leak and wind-noise diagnosis, A/C performance testing, refrigerant service, and heater-A/C housing repair.

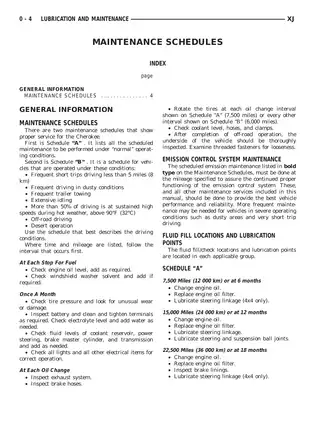

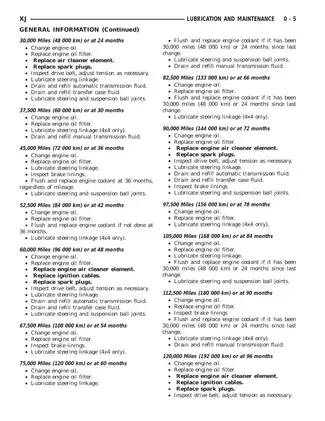

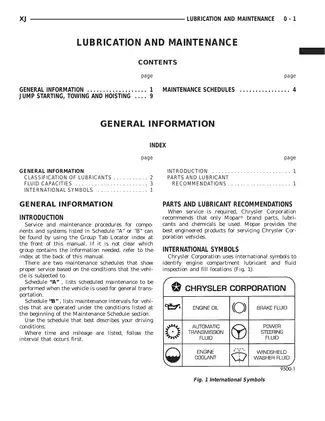

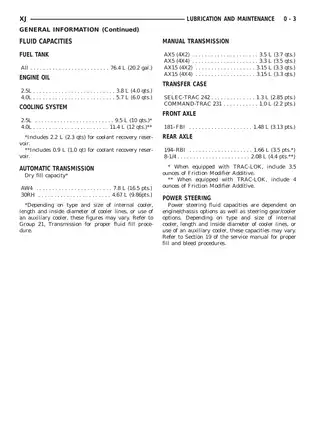

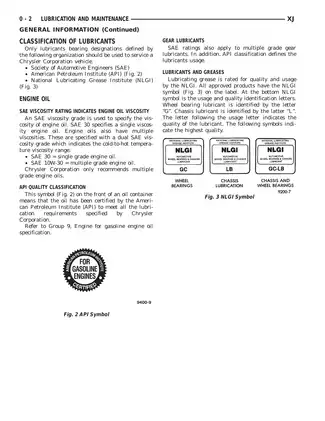

• Maintenance and cooling: Normal- and severe-duty schedules, fluid specifications, cooling-system leak and pressure tests, radiator and water-pump replacement, thermostat service, and accessory-drive-belt procedures.

Suited to technicians and experienced owners comfortable with vehicle disassembly and electrical testing, with a DRBIII scan tool required for the covered PCM/MSA diagnostic work.

Gasoline Engine Diagnosis and Repair Data

Performance and mechanical diagnostic charts are supported by compression, combustion-leakage, oil-pressure, head-gasket, and intake-leak tests. These help connect symptoms with the appropriate inspection or repair section.

Component inspection limits, torque tables, bearing-selection information, and dimensional specifications accompany the repair procedures. Timing-cover work identifies alignment and seal-installation tool 6139; gasoline fuel-system service specifies locknut spanner 6856 and fuel-pressure test kit 5069.

Transmission and Axle Fault Isolation

An AW-4 complaint can be traced through cable adjustment, solenoid checks, hydraulic-pressure testing, and engagement time-lag testing to the relevant internal repair sections. The manual-shifting test helps distinguish electrical control faults from mechanical problems before further testing.

Internal coverage includes clutch packs, planetary assemblies, the oil pump, and valve body. Tool references include AW-4 oil-pump puller 7536 and dial indicator set C-3339.

The 181 FBI front axle and 194 RBI/8 1/4 rear-axle sections cover runout and bearing diagnosis, pinion depth, preload, backlash, gear-contact patterns, and Trac-Lok differential service.

Transmission removal cautions address torque-converter positioning to prevent driveplate, pump-bushing, and front-seal damage; rear-axle procedures explain why excessive pinion preload cannot be corrected by backing off the nut after over-compressing the collapsible spacer.

Diesel Supplement and Diagnostic Limits

The XJ-specific diesel material covers filter and water-separator service, fuel-restriction checks, injector and needle-movement-sensor tests, high-pressure lines, injection-pump removal and timing, glow-plug controls, and boost sensing. It also includes diesel exhaust/turbocharger work, LHD/RHD power-steering pump procedures, and AX15/NV231 service information.

Diesel overhaul and control-system diagnosis: A full internal diesel-engine overhaul chapter is not included. For PCM/MSA fault diagnosis and the fuel-shutdown-solenoid test, the text refers to the separate 1997 ZJ/ZG 2.5L Diesel Powertrain Diagnostic Procedures manual, which is not part of this download.

The injection-pump section warns that rotating the engine with the gear puller installed can damage the engine, while premature removal of the retaining tools can disturb pump-gear alignment.

Wiring Diagrams and Connector References

Group 8W includes Power Distribution, Charging System, Fuel/Ignition, Transmission Control, and All-Wheel Antilock Brakes diagrams. Sections 8W-80, 8W-90, and 8W-95 add connector pin-outs, connector-location drawings, and splice locations for gasoline and diesel configurations.

Terminal-service procedures identify tools 6932 and 6934. Mechanical chapters add exploded assembly views, hydraulic schematics, diagnostic charts, and special-tool illustrations.

Body Dimensions and Heater-A/C Service

Body references include sealing locations, weld locations, structural-adhesive locations, opening dimensions, and gap/flush measurements. These accompany component removal, installation, and adjustment information.

Climate-control coverage extends to leak diagnosis, refrigerant recovery, evacuation and charging, heater-A/C housing disassembly, and airflow-door service.

Fuel-pressure work, brake and ABS repair, refrigerant handling, airbag service, hoisting, and heavy drivetrain removal should be performed with the factory safety precautions, proper support equipment, and specified service tools.

A Preview of Compression and Crankshaft Specifications

The 4.0L gasoline engine’s compression specifications list 827–1,034 kPa (120–150 psi), with a maximum difference of 206 kPa (30 psi) between cylinders. The engine-diagnosis section provides the corresponding compression-test procedure.

For crankshaft inspection, the same engine’s specification table gives an end-play range of 0.038–0.165 mm (0.0015–0.0065 in.), alongside journal dimensions, bearing clearances, and wear limits.
