1999 Yamaha YZF-R6L / YZF-R6CL Service & Repair Manual (P/N LIT-11616-12-62)

This 1999–2002 Yamaha YZF-R6L / YZF-R6CL service manual covers maintenance, diagnosis, and repair of the liquid-cooled DOHC parallel-four platform. Yamaha publication identifiers are LIT-11616-12-62 and 5GV-28197-E0.

Supplied as one 394-page PDF. Chapters 2–9 are included; Chapter 1, General Information, is missing from this file.

• Engine repair: Engine removal, cylinder-head and valve service, camshaft installation, crankcase separation, and piston, connecting-rod, and crankshaft inspection.

• Clutch and transmission: Wet-clutch disassembly, friction-plate inspection, transmission teardown, shift-fork checks, and shift-drum inspection.

• Fuel delivery: Keihin CVRD37 carburetor overhaul, fuel-level adjustment, throttle position sensor testing, fuel-pump checks, and air induction system inspection.

• Cooling system: Radiator-cap pressure testing, thermostat checks, oil-cooler service, and water-pump disassembly, inspection, and seal installation.

• Brakes and chassis: Hydraulic brake bleeding, caliper and master-cylinder repair, front-fork overhaul, steering-head tension checks and adjustment, and rear-suspension inspection.

• Electrical diagnosis: C.D.I. ignition, starting, charging, lighting, signaling, and fuel-pump troubleshooting, with circuit diagrams and sensor self-diagnosis.

• Periodic maintenance: Emission-control and lubrication charts, valve-clearance adjustment, carburetor synchronization, compression testing, clutch-cable adjustment, and drive-chain alignment.

Written as a reference for mechanics, this manual includes workshop measurements and special-tool procedures that require the corresponding technical skills and equipment.

Model Variants and Carburetor Service

The specification tables distinguish 5GV1 (U.S.), 5GV2 (California), and 5GV3 (Canada). California-specific entries identify differences in carburetor settings, spark plugs, and ignition data, helping mechanics match the reference specifications to the machine before selecting parts or evaluating test results.

Carburetor repair extends to piston-valve diaphragms, jet needles, floats, and needle valves. Throttle position sensor coverage includes resistance checks and adjustment using the tachometer display. Air induction system diagrams show the reed valves and air cutoff valve, with separate flow and no-flow views.

Engine Overhaul and Transmission Inspection

Cylinder-head procedures cover valve-seat sealing checks, valve-guide replacement, and camshaft-journal inspection. Valve pad selection tables support clearance adjustment. The camshaft section warns that incorrect handling of the cap bolts can damage the cylinder head, camshafts, or caps.

Crankshaft and connecting-rod bearing selection uses stamped identification numbers and bearing color codes, together with Plastigauge clearance checks. The constant-mesh six-speed transmission section covers the main and drive axle assemblies, gear dogs, and gear engagement.

Lubrication coverage includes the trochoidal oil pump, relief valve, strainer, and oil-delivery passages. Oil flow diagrams, exploded assembly views, and job instruction charts accompany the procedures; specification tables provide tightening torques, fluid capacities, clearance specifications, and wear limits.

Cooling, Brakes, and Suspension

Thermostat testing distinguishes California and other configurations. Water-pump assembly instructions address the mechanical seal and impeller-shaft alignment, while coolant flow diagrams trace the cooling circuit and oil-cooler connections.

The brake chapters cover internal master-cylinder and caliper inspection as well as pad replacement. They flag solvent damage to caliper piston seals, which can swell and distort during improper cleaning.

Front-fork work includes bushing and seal replacement, oil-level checks, and spring-preload, rebound, and compression adjustments. Named tools include fork spring compressor 90890-01441 and rod holder 90890-01434. Rear-shock coverage addresses removal, inspection, adjustment, and linkage service; it does not provide an internal shock rebuild procedure.

Proper protective gear and secure motorcycle support are essential during brake, fuel, and suspension work.

Electrical Testing and Fault Isolation

The starting circuit cutoff system diagram explains how the neutral, clutch, and sidestand switches interact. Diagnostic flowcharts cover plug-top ignition coils, the pickup coil, stator, rectifier/regulator, and fuel-pump control, with electrical test specifications and connector illustrations.

The self-diagnosis section explains tachometer condition codes for the throttle position sensor and fuel-level indicator circuit. Cable routing diagrams identify harness, hose, and control-cable locations. Symptom-based troubleshooting also addresses poor idling, clutch slip or drag, gear-selection faults, overheating, and unstable handling.

File Format and Readability

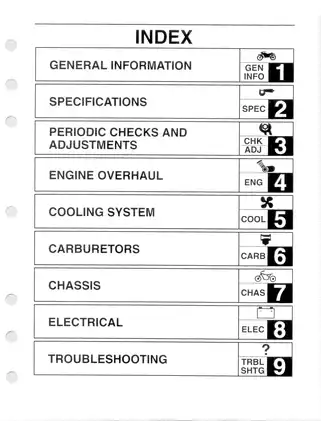

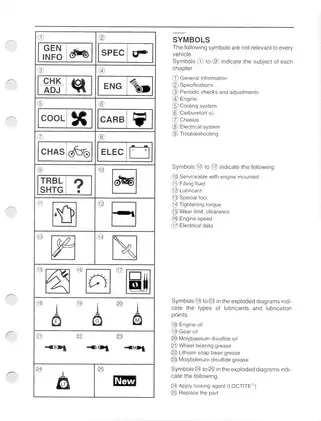

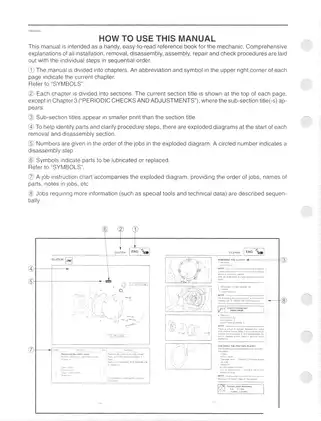

The page total includes four opening pages (cover, how-to-use guide, symbols, and index), 388 pages covering Chapters 2–9, and the final two-page wiring diagram with its component legend and wire-color key. These pages are already included in the stated total.

Text search: PDF text search is not available.

Navigation: Ten embedded bookmarks link to the index, Chapters 2–9, and the final wiring diagram.

Diagram readability: Some small wire and connector labels in the reduced chapter circuit diagrams remain faint or difficult to read when enlarged. The larger wiring diagram on the final two pages is easier to read with zooming.
