2003–2009 Suzuki DR-Z125 & DR-Z125L Service & Repair Manual with Supplements

The 2003–2009 Suzuki DR-Z125 and DR-Z125L service manual covers inspection, maintenance, and repair of the standard-wheel and large-wheel models. Its seven base sections are followed by integrated K4–K9 supplements with revised specifications, service data, and routing information.

PDF Search, Bookmarks and Diagram Detail

Text navigation and wiring labels: Text search works across the main service sections and supplements, but some diagram labels and troubleshooting-chart text are not searchable. Embedded bookmarks provide access to the main chapters and many subsections. Small wiring-diagram labels are easier to read when enlarged.

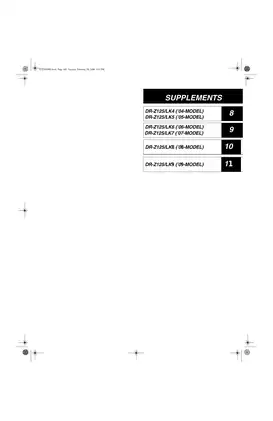

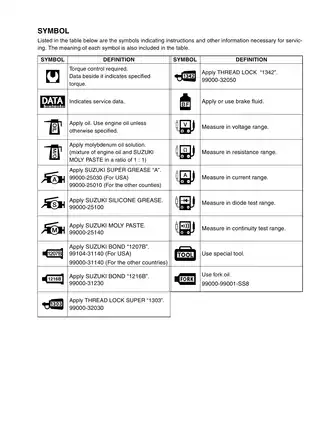

Supplied as one printable, English-language, 232-page PDF: 196 pages of base material and front matter, a 12-page K4/K5 supplement, a 10-page K6/K7 supplement, a 12-page K8 supplement, and a two-page K9 supplement. These totals already include ten blank pages.

Engine Overhaul, Chassis Service and Ignition Diagnosis

The following selected coverage highlights outline the main workshop areas. Other topics include spark-arrester cleaning and side-stand installation.

• Engine repair: Engine removal, crankcase separation, cylinder-head service, valve-guide replacement, valve-seat work, and crankshaft, piston, and bearing inspection.

• Clutch and transmission: Wet multi-plate clutch inspection, transmission disassembly and reassembly, shift-fork checks, gearshift mechanism service, and kick-starter assembly.

• Fuel and lubrication: Mikuni VM20SS carburetor overhaul, needle-valve inspection, float-height adjustment, oil-pressure testing, and lubrication-system diagrams.

• Brakes and wheels: DR-Z125 front drum-brake service, DR-Z125L front caliper and master-cylinder repair, hydraulic bleeding, rear drum-brake service, and wheel-bearing replacement.

• Suspension and steering: Telescopic fork rebuilding, steering-stem bearing service, swingarm and linkage inspection, and rear spring-setting information.

• Electrical diagnosis: CDI ignition troubleshooting, ignition-coil and pick-up-coil testing, stator checks, a wiring diagram, and wire, cable, and hose routing drawings.

This manual is written for people with sufficient Suzuki motorcycle service knowledge, skills, and workshop tools, including the special tools required for the work.

Engine Inspection and Internal Repair

The engine chapter provides step-by-step procedures for removal, disassembly, inspection, and reassembly. Cylinder-head coverage extends to valve-seat correction and guide replacement; lower-end material covers connecting-rod checks, crankshaft runout, crankcase bearings, transmission gears, and clutch components.

Component-specific inspection methods and service limits support wear assessment before replacement decisions are made. Illustrated assembly details show camshaft timing marks, piston-ring orientation, gearshift-fork placement, and lubrication points.

The primary-drive gear nut has left-hand threads; the disassembly notes flag this detail to prevent damage from treating it as a conventional fastener. Tool references include crankcase separator 09920-13120 and crankshaft installer 09910-32812.

Since working on motorcycle drivetrains involves inherent physical risks, mechanics must always employ standard shop safety practices and secure the bike on a stable lift before attempting any heavy teardown.

Carburetor and Lubrication-System Service

Carburetor coverage goes beyond adjustment specifications, with removal, disassembly, circuit cleaning, needle-valve inspection, and reassembly procedures. The needle-valve illustrations distinguish normal and worn profiles, while the Engine Lubrication System Chart traces oil distribution through the engine and transmission.

Brake, Fork and Steering Work

Separate front-brake sections distinguish the DR-Z125 drum system from the DR-Z125L hydraulic disc system. The front drum-brake reassembly notes warn that excess grease on the cam and pin can contaminate the linings and cause brake slippage.

Fork procedures cover internal inspection, seal and sliding-bushing replacement, oil-level setting, and reinstallation. Steering-stem and rear-linkage sections include bearing and spacer inspection. Rear shock coverage addresses removal, inspection, spring settings, and disposal; the shock absorber itself is identified as unserviceable.

Fault-Finding and Supplement Updates

The Ignition System diagram and No Spark or Poor Spark flowchart connect circuit checks with component tests. Separate troubleshooting tables address starting difficulty, poor running, clutch and shifting faults, suspension complaints, and brake problems.

The Wiring Diagram, Front Brake Hose Routing drawing, and K8 Cable Routing illustrations support electrical and chassis reassembly. Use the applicable supplement alongside the base chapters: the K8 material revises axle torques and fuel-tank information, and the K9 section carries forward the K8 service data.

Examples of Valve, Oil and Axle Specifications

Valve-clearance data specify 0.08–0.13 mm for the intake valve with the engine cold. Oil-capacity charts list 950 ml for an oil and filter change.

Rear axle nut torque is 45 N·m in the K3–K7 material and 54 N·m in the K8 supplement; the K9 supplement retains the K8 service data. These model-specific references accompany the related inspection and assembly procedures.
