2007 IVECO C13 ENT M77 Marine Engine Technical & Repair Manual (P/N P3D32C003 E)

IVECO MOTORS-FPT publication P3D32C003 E is the June 2007 Technical and Repair Manual for the 2007–2013 IVECO C13 ENT M77 marine engine, specifically the C13 ENT M77.10 configuration.

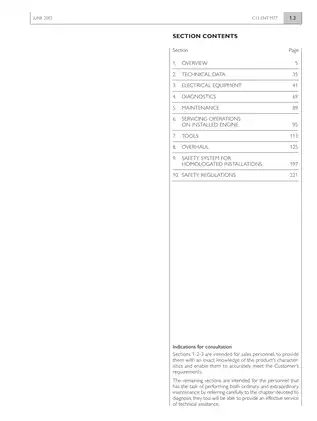

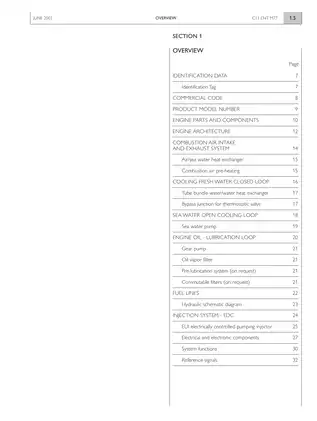

Text search and diagram navigation: Text search is available throughout the main chapters, and 10 embedded bookmarks open the section contents. Some drawing labels are not reliably searchable; small wiring labels require zooming.

• Engine overhaul: Bench disassembly and reassembly, main and big-end bearing shell selection, cylinder liner extraction and protrusion checks, and cylinder-head repair.

• Valve train: Camshaft phase adjustment, phonic-wheel alignment, timing gear inspection, valve clearance adjustment, and EUI pump-position setting.

• Fuel system: Gear-driven feed pump diagnosis, fuel feed loop venting, EUI pumping unit replacement, and injector holder case replacement.

• Cooling and lubrication: Heat exchanger cleaning, centrifugal sea-water pump operation, oil circuit checks, and optional pre-lubrication equipment.

• Electrical diagnosis: EDC7 UC31 fault lists, PT-01 diagnostic operations, sensor test tables, ECU pin assignments, and wiring diagrams.

• Homologated installations: Dedicated safety-system wiring, monitoring sensors, auxiliary EDC equipment, alarm management, and maintenance-counter reset procedures.

Written for maintenance personnel, with extraordinary maintenance assigned to trained IVECO MOTORS-FPT authorized workshop staff.

Engine Architecture and Overhaul

The Cursor engine is an in-line six with an overhead camshaft and four valves per cylinder. Its camshaft operates both the valve train and the EUI injectors.

Internal repair: The overhaul section includes piston and connecting-rod inspection, crankshaft end-float checks, camshaft bushing replacement, and color-coded bearing selection charts for standard and reground journals. Assembly clearances, wear limits, component-specific torque tables, and tightening-order diagrams accompany the procedures.

Timing precautions: The camshaft phasing instructions warn that incorrect initial shaft alignment can cause valve-to-piston contact. Tools identified for this work include TDC positioning pin 99360612 and phonic-wheel alignment tool 99360613.

Fuel, Cooling, and Marine Service

The fuel supply circuit uses a gear-driven pump and EUI pump injectors. The Hydraulic schematic diagram and Cross-section of the fuel pump show the supply and return paths and seal arrangement.

Injector repair limits: The manual covers removal and installation of EUI pumping units and injector holder cases, but the injectors themselves are not internally repairable. Injector replacement requires coordination with IVECO MOTORS-FPT Technical Assistance.

System descriptions trace intake air through the water-cooled turbochargers and air/sea-water heat exchanger, and explain the exhaust arrangement. Separate illustrations follow the lubricating oil circuit, centrifugal sea-water pump, and closed freshwater circuit with its thermostatic valve and tube-bundle heat exchanger.

Scheduled maintenance extends to long-term engine storage preparation and recommissioning after prolonged inactivity. Marine-component removal and engine disembarkation are included; installation and re-embarkation checks refer to the separate C13 ENT M77 Installation Directive.

EDC7 UC31 and Electrical Diagnosis

Electrical coverage follows the engine harness through the relay box and analog-to-digital converter module. Connector views accompany the EDC and Main analog instrument panel wiring diagrams.

Sensor test tables cover resistance checks for intake-air, coolant, fuel, and lubricating-oil temperature sensors, plus voltage signals from the flywheel and camshaft position sensors.

PT-01 coverage includes ECU identification, fault memory decoding, and live parameter reading. Fault lists cover CAN-BUS interfaces and individual injector circuits; the PT-01 active-diagnostics function is marked unavailable in this edition.

The manual explains that temperature-related torque reduction can occur without a stored fault or warning light. That distinction helps direct poor-performance diagnosis toward cooling, intake-air, or lubrication conditions when fault memory is clear.

Safety Systems for Homologated Installations

Configuration-specific equipment: This section documents separate monitoring sensors, line-balancing components, the optional insulated-pole electrical system, and an auxiliary EDC unit for single-engine installations requiring this safety system.

The Assembly drawing of the safety system harness supports circuit tracing. Interface instructions cover alarm history, parameter recording, and maintenance-interval resets; supplier-level programming is outside the manual's scope.

For work around pressurized systems and heavy engine components, follow the manual's safety requirements before testing, maintenance, or repair.

English PDF and Included Pages

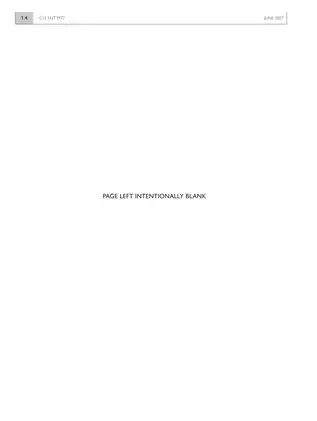

A single, printable 226-page English PDF contains 211 chapter pages, two foreword/contents pages, front and back covers (two pages), and 11 blank or intentionally blank pages. These preliminary and blank pages are already included in the total.
