Chrysler PT Cruiser 2002 Factory Service Manual

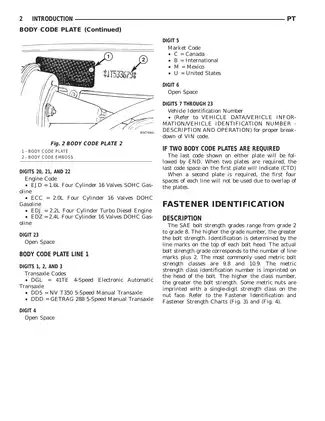

This factory service manual covers the 2002 Chrysler PT Cruiser hatchback in left- and right-hand-drive configurations. It includes U.S., Canadian, Mexican, and international vehicle identification data. Engine mechanical and transaxle repair coverage varies by configuration.

PDF Search and Wiring Diagram Readability

Search, navigation, and page clarity: Service text and many tables are searchable. The wiring section contains 214 pages without searchable text. Small pin numbers, connector IDs, and wire codes were legible when zoomed in on the diagrams checked. The PDF has no embedded bookmarks, and some chapter contents links have broken destinations. Overlapping material obscures parts of the gasket-surface and cylinder-head procedures on PDF pages 979, 993, 1057, and 1072.

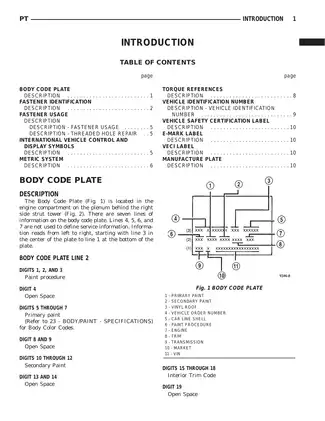

The ZIP contains one printable English PDF with 1,755 pages, including a one-page Group Tab Locator, a 32-page Component and System Index, a two-page service manual feedback form and return mailer, and 32 blank divider pages.

Engine Timing, Transaxle Overhaul, and Circuit Testing

Selected service topics are outlined below. The manual also includes tire-and-wheel match mounting and instrument cluster self-diagnostics.

• Gasoline engine repair: Engine removal and installation, cylinder compression and combustion-leakage tests, cylinder-head and valvetrain service, lubrication diagnosis, and timing-system work.
• Transaxle and driveline: Step-by-step procedures for NV T350 and 41TE disassembly, cleaning, inspection, reassembly, and installation. The driveline section covers half-shafts and inner and outer CV boots.
• Suspension, steering, and brakes: MacPherson struts, the twist-beam rear axle and Watts linkage, curb-height checks, four-wheel alignment, power steering, and Mark 20e ABS and traction control with DRB III-assisted bleeding.
• Electrical troubleshooting: Circuit tests and wire and terminal repair for the PCI bus, power and ground distribution, starting and charging, powertrain and transmission controls, Sentry Key security, lighting, restraints, and power accessories.
• Fuel, cooling, and emissions: Fuel-injection service, cooling-system leak and flow testing, water-pump service, EVAP and ORVR diagnostics, and EGR component replacement.
• Body and climate systems: Water-leak and wind-noise diagnosis, plastic-panel repairs, doors, liftgate, glass, sunroof, seat service, and body opening dimensions and weld locations. HVAC coverage includes performance tests, refrigerant leak checks, recovery, evacuation, and charging.

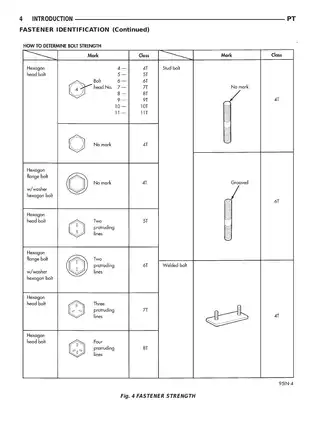

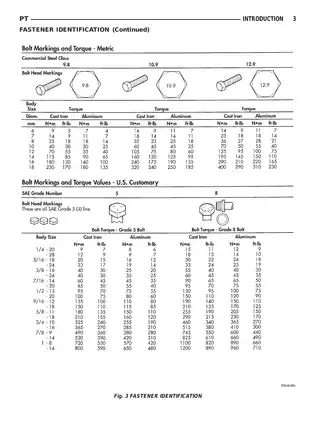

• Factory reference data: Assembly-specific torque tables, fluid and lubricant requirements, wear limits, clearances, pressure and electrical test values, adjustment data, and illustrated special-tool references.

The procedures are written for technicians and experienced repairers who can interpret factory specifications and use equipment such as a DRB III scan tool, a press, spring compressors, refrigerant service equipment, and approved lifting gear.

Gasoline Engine Testing and Timing

The EJD 1.6L SOHC, ECC 2.0L DOHC, and EDZ 2.4L DOHC gasoline chapters cover camshaft and crankshaft inspection, piston and bearing fitting, oil-pump service, and oil-pressure checks. They also cover engine mounts, cylinder-head removal, valve work, and valve-seat service.

Timing procedures cover the 1.6L chain and the 2.0L and 2.4L belts. The 1.6L and 2.0L engines can suffer piston-to-valve contact if timing is lost. The 2.4L has piston-to-valve clearance, but its valves can contact each other if the camshafts are rotated independently.

NV T350 and 41TE Repair

The DD5 NV T350 chapter covers shafts, gears, synchronizers, the differential, seals, and shift cables. The manual specifies different fluids for domestic and export units and warns that the wrong fluid can cause hard shifting and damage to bearings, gears, or synchronizers.

For the DGL 41TE, the manual covers the valve body, input and holding clutch assemblies, oil pump, planetary geartrain, final drive, and differential-bearing preload. It also covers torque converter removal and installation and the TCM Pinion Factor and Quick Learn procedures.

Road-test results, hydraulic pressure readings, and clutch-air tests help narrow a shift complaint to a hydraulic circuit or clutch before disassembly. The 41TE hydraulic schematics show how the related circuits are routed.

Wheel Bearings, Alignment, and Brakes

Chassis procedures include strut disassembly, front wheel-bearing pressing, steering-knuckle replacement, lower control arm and ball joint service, and rear axle and pivot-bushing replacement. Hub and spindle service and front and rear camber and toe adjustments are also covered.

Brake procedures cover hydraulic bleeding, caliper overhaul, drum-brake adjustment, parking brake service, wheel-speed sensors, and the integrated ABS hydraulic and control unit. Safety notes address changes in vehicle balance during engine or rear suspension removal, stored spring energy, brake and refrigerant hazards, and airbag isolation.

Water Pumps, Fuel Delivery, and EVAP

The cooling chapter distinguishes the combined water-pump and power-steering-pump assembly on the 1.6L from the water-pump arrangements on the 2.0L and 2.4L. Fuel and emissions procedures cover injector and throttle-body service, leak detection pump testing, and ORVR diagnosis when the tank will not accept fuel.

Wiring Diagrams and Special Tools

Electrical references include fuel and ignition, transmission control, antilock brake, and occupant restraint diagrams. Connector pinouts and connector, ground, and splice location views help trace a circuit from a component to its control module or ground.

Illustrated references identify rear suspension remover/installer 8405, ball joint press C-4212F, clutch line disconnect tool 6638A, clutch disc alignment tool 6724, and 41TE high-pressure gauge C-3293SP.

Diesel, Getrag, and Diagnostic Coverage

The EDJ 2.2L turbo diesel coverage includes identification, battery service, selected instrument information, and cabin heater testing. The diesel engine mechanical overhaul and DDD Getrag 288 teardown are outside the scope of this manual.

The manual includes diagnostic trouble code lists. Full fault isolation for some codes requires the separate Powertrain, Transmission, Chassis, or Body Diagnostic Procedures manuals. Owner operating instructions and detailed maintenance schedules are in the owner’s manual. New Vehicle Preparation is a separate publication.

Sample Fuel Pressure and 41TE Rebuild Specifications

The gasoline fuel delivery section specifies regulated system pressure of 400 ± 34 kPa (58 ± 5 psi), a reference for fuel pressure checks.

The 41TE rebuild specifications list transfer shaft end play at 0.051–0.102 mm (0.002–0.004 in.) for shim selection. The clutch clearance table also gives a reverse clutch range of 0.89–1.37 mm (0.035–0.054 in.) for selecting the snap ring.
