Malaguti F12 Phantom (Liquid-Cooled) 2002-2004 Service Manual

Factory service manual for the Malaguti F12 Phantom Liquid-Cooled scooter. Covers all maintenance, troubleshooting, and repair procedures. Part number 715.070.00.

4.5starstarstarstarstar_half(4)
★ BEST RATED
visibility Preview Available
Malaguti Malaguti F12 Phantom (Liquid-Cooled) 2002-2004 Service Manual manual page preview - page 1 of 282

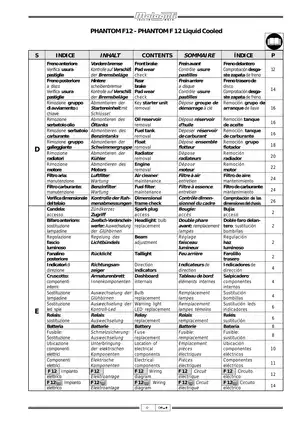

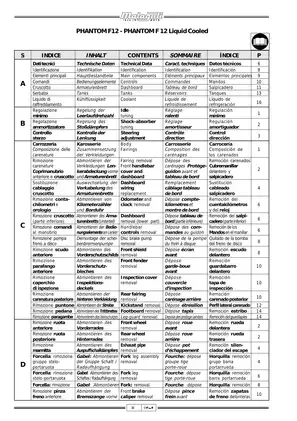

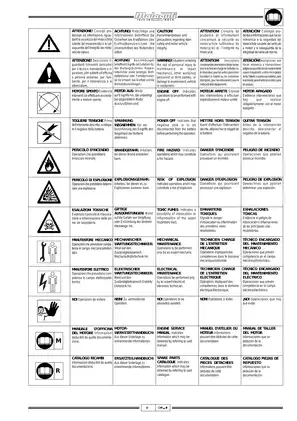

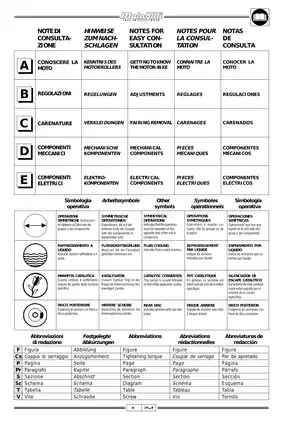

Sample pages from the Malaguti F12 Phantom (Liquid-Cooled) 2002-2004 Service Manual manual

Malaguti Malaguti F12 Phantom (Liquid-Cooled) 2002-2004 Service Manual manual preview page 1 - thumbnail
Malaguti Malaguti F12 Phantom (Liquid-Cooled) 2002-2004 Service Manual manual preview page 4 - thumbnail
Malaguti Malaguti F12 Phantom (Liquid-Cooled) 2002-2004 Service Manual manual preview page 5 - thumbnail
info_outline Click thumbnails to preview different pages
$11.98 (incl. VAT) Original OEM Factory Manuals & Data Instant Download / No Shipping Fees
1 copies sold
OR BUY NOW
verified_user
Lifetime Access
Re-download anytime
flash_on
Instant Download
Get it immediately
lock
Secure Payment
PayPal
Technical Safety Notice
keyboard_arrow_down

This official OEM document is intended for professional technicians and skilled operators. Performing service on mechanical equipment involves inherent risks. By purchasing, you acknowledge that RepairLoader provides original manufacturer data for informational purposes. Always prioritize safety: use correct tools, wear protective gear, and consult a certified professional if you are uncertain of any procedure.

Malaguti Models Covered & Key Technical Specifications

Models: Malaguti F12 Phantom (Liquid-Cooled) (715.070.00)
Build Years: 2002–2004
Technical Data:

  • Engine: Minarelli 8 MY / Minarelli 2 MA
  • Engine type: Single cylinder, liquid-cooled
  • Displacement: 49.3 cc
  • Compression ratio: 12:1
  • Fuel capacity: 8.5 liters
  • Coolant capacity: 1 liter
  • Oil reservoir capacity: 1.4 liters
  • Transmission oil capacity: 0.11 liters
  • Battery: 12V 4A
  • Front suspension: Hydraulic telescopic fork, Ø 32 mm
  • Brakes: Front disc Ø 190 mm, rear drum Ø 110 mm or rear disc Ø 190 mm
Technical Specifications
keyboard_arrow_down
Document Number / Seller:
31077 / Donna Bell
File Size:
6.29 MB
File Type:
PDF
Language:
English
Pages:
282
Printable:
Yes
Category:
Scooter
Last updated / verified
Apr 11, 2026

Malaguti Manual Features & Content Preview

Malaguti F12 Phantom Liquid-Cooled 2002–2004 Technical Reference

  • Covers the 2002–2004 Malaguti F12 Phantom (Liquid-Cooled) model 715.070.00
  • Original OEM publication, first edition 1/98
  • Contains 80+ pages of exploded-view diagrams, electrical schematics, and technical specification tables
  • Delivered as a direct download the moment payment clears
  • Page resolution preserves technical detail for clear on-screen viewing
  • Accessible from your device as soon as the order is placed
  • This 1998 first edition serves as the foundational technical reference for the F12 liquid-cooled series build

Documented Scope and Technical Overview

This Malaguti F12 Phantom 2002–2004 service manual documents maintenance procedures, chassis adjustments, and system specifications. The content includes detailed breakdown of engine mechanical components, electrical diagrams, frame dimensions, and fluid service parameters for the liquid-cooled engine variant. It details carburetor tuning, fork maintenance, and brake system checks.

Specification Highlights

Technical data is provided for critical service operations, including torque settings for cylinder head bolts, chassis fasteners, and brake components. Intake valve clearance and ignition timing values are documented within the technical tables. The manual contains a full electrical wiring schematic for the 12V system. Valve clearance for the intake is listed at 0.11–0.20 mm in the cylinder head specification table. Coolant system capacity for the F12 is documented at 1.0 liters. Magneto pick-up coil resistance is specified in the electrical section. For what an OEM service publication covers, refer to the indexed system breakdown. Always consult a certified technician before performing service on this equipment.

An official 282-page Malaguti OEM service manual covering the 2002–2004 Malaguti F12 Phantom (Liquid-Cooled), documenting engine, chassis, electrical, and cooling system specifications for the liquid-cooled model 715.070.00.
