1997–1999 Aprilia SR 50 Scooter Service Manual (P/N 8140212)

Aprilia service and repair manual P/N 8140212, second edition June 1999, covers 1997–1999 SR 50 scooters with carbureted Minarelli 2-stroke engines. It distinguishes air- and liquid-cooled versions, catalytic configurations, and models with a rear drum brake.

Text search and wiring detail: Body text is searchable, but some headings and labels within wiring diagrams cannot be searched reliably. Two embedded bookmarks mark the two document parts rather than individual chapters. Small labels in the main wiring diagrams require zooming.

• Engine and transmission: Engine removal for air- and liquid-cooled versions, engine connection-link inspection, exhaust silencer removal, and transmission oil checks and changes.

• Fuel and lubrication: Vacuum fuel tap inspection, fuel tank and level sender removal, carburetor idle adjustment, and 2-stroke oil tank bleeding.

• Cooling system: Coolant replacement and bleeding, radiator and expansion tank removal, and additional instructions for versions with a heated carburetor.

• Brakes and wheels: Hydraulic brake bleeding, caliper removal, brake pad replacement, rear drum-brake adjustment, brake shoe replacement, and wheel inspection.

• Steering and suspension: Steering tube bearing adjustment and removal, front fork disassembly, fork oil checks, and rear shock absorber removal.

• Electrical diagnosis: Wiring diagrams and component tests for ignition, charging, starting, fuel and oil level indication, lighting, and coolant temperature indication.

Written for Aprilia dealers and their qualified technicians, this manual assumes mechanical training and familiarity with vehicle repair procedures.

Engine Removal and Fuel-System Service

The engine sections document removal from the frame, including the additional connections on liquid-cooled versions. Internal engine repair requires the separate Engine Service and Repair Manual #921, which is referenced but not included. The removal procedure specifies two operators and chassis support.

Fuel-system specifications identify the Dell’Orto PHBN 12 and alternative TEI KEI TK3AA carburetors. Troubleshooting charts connect hard starting, weak power, and irregular running with fuel delivery, intake leaks, ignition faults, and compression loss.

The lubrication section explains why air left in the 2-stroke oil supply after tank or hose work can seriously damage the engine.

Liquid-Cooled System Service

Heated-carburetor versions have additional coolant connections and bleeding instructions. Cooling-system troubleshooting addresses overheating and failure to reach operating temperature.

Coolant pump and thermistor removal refer to the separate engine manual. Electrical testing of the thermistor and temperature indicator is included here, with temperature-dependent resistance data.

Brake, Steering, and Chassis Repair

The hydraulic brake procedures apply to the front brake on drum-brake versions and to both brakes on models with a rear disc. Rear drum service includes cam-pin lubrication and shoe-wear checks; wheel inspection adds brake-disc wear limits and wheel runout checks.

Fork coverage extends to the tube/wheel-holder assembly, seals, retaining rings, and spring orientation. Engine connection-link inspection includes the silent-block bushings. The steering section warns that excessive force on the bearing adjusting nut can damage the steering bearings.

Follow the manual’s precautions for brake hydraulics, hot coolant, and supporting the vehicle during engine removal.

Circuit Diagrams and Electrical Fault Finding

General wiring diagrams distinguish standard, Automatic Switch-on Device (ASD), and U.S. configurations. Dedicated diagrams cover the Ignition Circuit, Recharge and General Power Supply Circuit, Starting Circuit, Sensor Circuit, and Coolant Temperature Indicator Circuit, supported by component locations and wire-color keys.

Starter troubleshooting separates a slow or inactive starter from one that runs without turning the engine. The related relay, start-button, brake-switch, and mechanical-drive checks help narrow the fault before replacement parts are selected.

Electrical test data also cover the CDI ignition system, pickup and ignition coils, generator, control diode, and fuel-level sensor. Lighting service includes headlight aiming and dashboard bulb replacement.

Service Intervals and Workshop Specifications

Reference tables cover scheduled maintenance, recommended lubricants, bore, stroke, and compression ratio. Standard ISO metric-thread torques and component-specific tightening values are listed in Nm and kgm.

Other specifications include fluid capacities, brake wear limits, tire pressures for solo or passenger use, spark plug gaps, and fuse ratings.

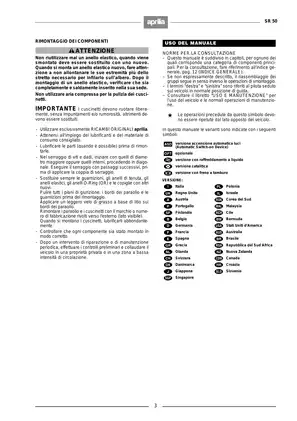

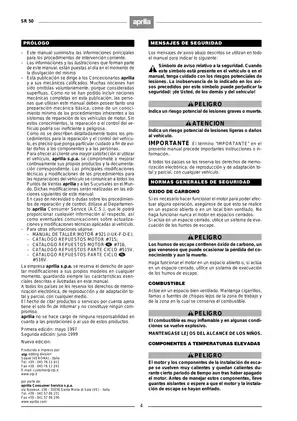

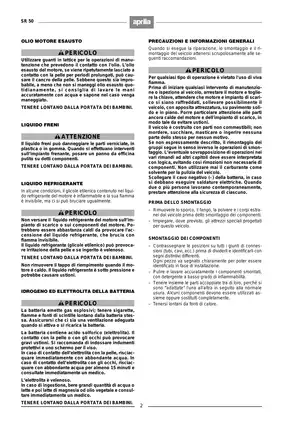

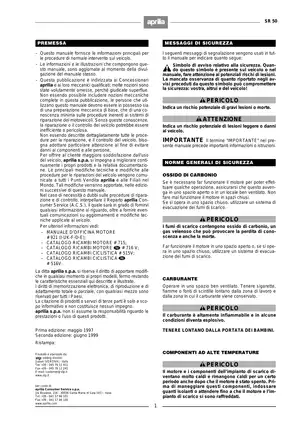

Trilingual PDF and Page Breakdown

One printable PDF contains English, Italian, and Spanish text. The 193-page PDF comprises 189 service and reference pages, one cover, and three notes pages; all are included in the total.
