Iveco Models Covered & Key Technical Specifications

Models & Model Codes: S30 ENT M23 (F1CE0486)

Sub-models / Variants: 1 (Cooled Turbocharged, S30 ENT M23.10, engine type F1CE0486A*A001)

Model Years: 2007–2013 (2007, 2008, 2009, 2010, 2011, 2012, 2013)


  • Engine cycle: 4-Stroke Diesel

  • Engine displacement: 2998 cm3

  • Bore: 95.8 mm

  • Stroke: 104 mm

  • Compression ratio: 18:1

  • Max engine rpm (no load): 4000 rpm

  • Min idling rpm (no load): 780 rpm

  • Max supercharge pressure: 1.9 bar

  • Total coolant quantity: 14 liters

  • Nominal voltage: 12 V dc

Iveco Manual Features & Selected Content Preview

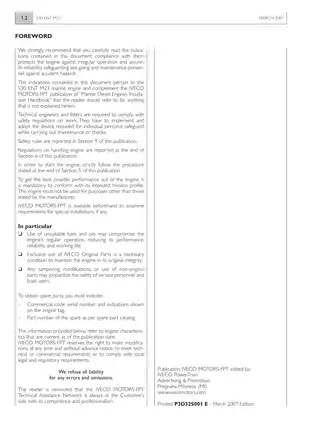

This March 2007 IVECO MOTORS-FPT Technical and Repair Manual covers the Sofim S30 ENT M23 marine diesel engine. It identifies the S30 ENT M23.10 commercial version and the F1CE0486 product model. The edition carries print code P3D32S001 E.

PDF Search, Bookmarks, and Diagrams

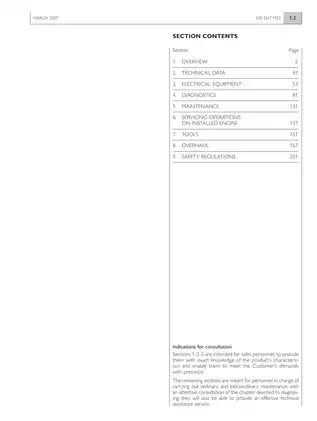

Text search and wiring labels: The manual text is searchable, and bookmarks open all nine sections. Small pin and connector labels in the wiring diagrams are readable when zoomed in. Some drawing labels require visual lookup. The PDF permissions restrict text copying.

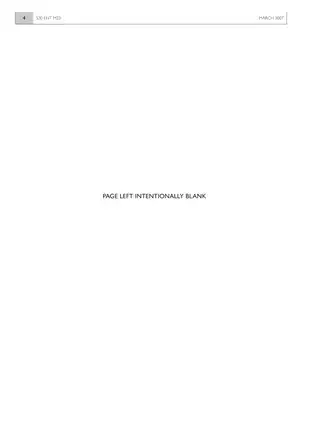

The download contains one printable English PDF with 256 pages, including the original front and back covers and 15 blank or intentionally blank pages.


Common-Rail Diagnosis, Marine Service, and Engine Overhaul

This selection of workshop topics includes both onboard service and bench work. The manual also covers first-start checks and preparation for extended storage.

  • Common-rail fuel system: Bosch EDC16C8 fuel-pressure control, CP3 high-pressure pump, rail, electro-injectors, fuel prefilter and filter, and electric feed pump.
  • EDC troubleshooting: Blink codes, PT-01 fault memory and live data, active tests, DTC/FMI tables, and symptom-based checks for starting and performance faults.
  • Electrical equipment: Engine harness and EDC connector pinouts, relay and fuse assignments, analog instrument-panel schematics, and supplementary battery charging.
  • Marine cooling: Freshwater and seawater circuit diagrams, seawater pump, thermostat, and cleaning procedures for the coolant and charge-air heat exchangers.
  • Installed-engine service: Electro-injector replacement, high- and low-pressure pipe service, low-pressure fuel-loop venting, marine hardware removal, and engine disembarkation.
  • Bench overhaul: Disassembly, inspection, measurement, and reassembly, with torque tables, assembly clearances, wear limits, and special-tool references.

Vessel owners can use the routine check schedule. Iveco assigns periodic maintenance to qualified personnel and extraordinary work to authorized service personnel with the required equipment.

Fuel and Electrical Fault Finding

Starting and performance faults: The manual introduces the IT 2000 and details PT-01 diagnosis through the J1 connector. The DTC/FMI tables pair fault codes with likely causes, test conditions, and expected readings. On a crank-no-start, the symptom guide helps a technician distinguish a fuel-feed restriction or air leak from a fault on the rail side. Preliminary checks cover feed pressure, component resistance, and circuit insulation.

Wiring and controls: The 60-pin EDC A connector covers engine-side components, and the 94-pin EDC B connector covers boat-side connections. The schematics identify sensor, glow-plug, relay, starter, and alternator circuits and show both main and secondary analog instrument panels.

Cooling and Onboard Service

Marine circuits: The belt-driven seawater pump supplies the charge-air cooler and engine-coolant heat exchanger. The closed freshwater loop serves the oil cooler, cooled exhaust manifold, and water-cooled fixed-geometry wastegate turbocharger. Heat-exchanger service covers tube bundles, sealing rings, spacers, and zinc sacrificial anodes.

Injection work and installation scope: Electro-injector service is limited to replacement. Removed common-rail pipes require replacement. The manual warns against venting the high-pressure side, which can reach 1,600 bar, and addresses hot coolant and engine-lifting hazards. For power-supply harness fabrication, further instrument-panel details, and final installation checks, it refers to the separate S30 ENT M23 Installation Directive. Broader installation guidance is in the separate Marine Diesel Engines Installation Handbook.

Bench Overhaul and Special Tools

Engine inspection and assembly: The manual covers the cast-iron block and cylinder head, four-valve layout, twin-chain timing drive, hydraulic tappets, piston-cooling jets, and forced lubrication. Bench procedures cover crankshaft journals and crankpins, bearing clearance and end float, pistons and connecting rods, valve guides and seats, rocker arms, oil and coolant pumps, alternator freewheel replacement, and refitting the marine hardware. It identifies the intake and exhaust camshafts individually and cautions that handling during assembly can damage their support seats.

Tool references: The tool list includes injector puller 99342153, crankshaft seal installers 99346258/99346259, timing tools 99360614/99360615, connecting-rod checking fixture 99395363, and belt-tension tester 99395849. Dimensioned drawings are included for selected tools that repair shops can make.

Sample Fuel-Feed and Main-Bearing Checks

The low-pressure fuel-supply test lists acceptable readings of −50 to 0 kPa at point A and 0 to 20 kPa at point B over the specified engine-speed sweep.

For bench assembly, the manual gives a clearance of 0.032 to 0.102 mm between the crankshaft main journals and their bearing shells, measured with calibrated wire.
