Access Daewoo Matiz (M100, M150) Car Service Manual: PDF (1998-2003)

Complete Car Service Manual for Daewoo Matiz (1998-2003) - M100 & M150 Series

Maintain, diagnose, and repair your vehicle with the definitive factory-level service documentation. This comprehensive manual covers the first generation of the Matiz, including the original M100 (1998-2000) and the facelifted M150 (2000-2003) models. Known globally under various badges such as the Chevrolet Matiz, Pontiac Matiz, and Uz-Daewoo Matiz, this guide is essential for owners of these iconic city cars.

Detailed Model Coverage

The Matiz series is powered by efficient S-TEC engines, and this manual provides specific data for both the 0.8L (796cc) 3-cylinder and the 1.0L (995cc) 4-cylinder variants introduced with the M150 series. Whether you are driving an early Korean-built model or a later international version, the technical specifications and performance curves included here ensure you have the right data for your specific build.

Essential Technical Information

For precise identification and parts ordering, this manual includes critical data on Vehicle Identification Numbers (VIN). Serial numbers and engine codes are located as follows:

• VIN Plate: Located on the firewall of the engine compartment.
• Engine Number: Stamped on the cylinder block.
• Chassis Number: Stamped on the floor panel under the rear seat or on the firewall.

Comprehensive Service Topics

This manual is organized for quick navigation, allowing you to move from basic maintenance to complex diagnostics easily:

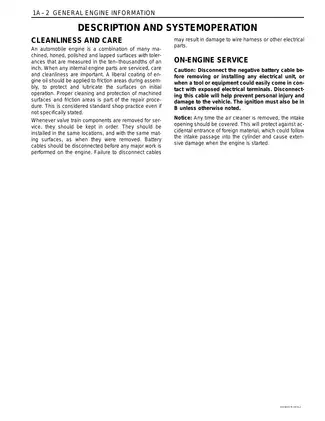

General Information & Safety Understand the core architecture of your Matiz and follow professional safety protocols to prevent injury or vehicle damage during maintenance.

General Engine Service Step-by-step instructions for the M100 and M150 engines, covering:

• On-Engine Service: Timing belt inspections, spark plug replacement, and air cleaner maintenance.
• Fluid Management: Correct procedures for oil and filter changes, including specific viscosity and capacity requirements.
• Belt Adjustments: Checking and tensioning the accessory and timing belts to prevent engine failure.

Advanced Diagnostic Procedures Troubleshoot like a professional technician with dedicated sections on:

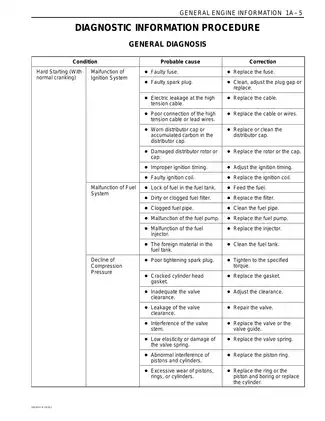

• Hard Starting: Detailed flows for ignition system malfunctions, fuel delivery issues, and compression loss.

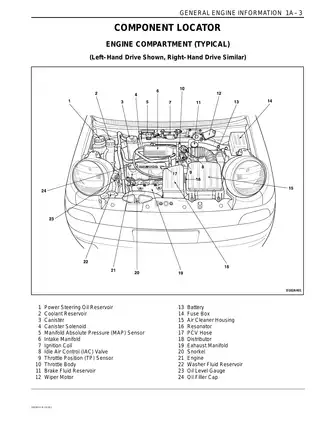

• Component Locator: Detailed maps of the engine compartment identifying the MAP sensor, Idle Air Control (IAC) valve, and the complex intake air ducting system.

Specifications and Performance Access factory-spec performance curves and general specifications to ensure your vehicle operates within its designed parameters. This section is vital for verifying that replacement parts meet original equipment manufacturer (OEM) standards.

Why This Manual is Necessary

The Daewoo Matiz is a precision-engineered compact vehicle where components like the Throttle Body, Intake Air Resonator, and Canister system must work in perfect harmony. This manual provides the clear, illustrated instructions needed to handle everything from a
