2009 Yamaha YZF-R6Y(C) Factory Service Manual (P/N LIT-11616-22-51)

434 Pages • 18.32 MB • Instant, Printable PDF

4.5starstarstarstarstar_half(2)
$18.40 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Yamaha Models Covered & Key Technical Specifications

Model: YZF-R6Y(C)

Sub-models / Variants: USA (13SE, 13SH), California (13SF, 13SJ)

Model Year: 2009


  • Engine displacement: 599 cc

  • Engine type: Liquid-cooled 4-stroke, DOHC, forward-inclined parallel 4-cylinder

  • Compression ratio: 13.1:1

  • Transmission type: Constant mesh 6-speed

  • Fuel system: Electronically controlled fuel injection (FI) with YCC-T and YCC-I

  • Starting system: Electric starter

  • Lubrication system: Wet sump

Yamaha Manual Features & Selected Content Preview

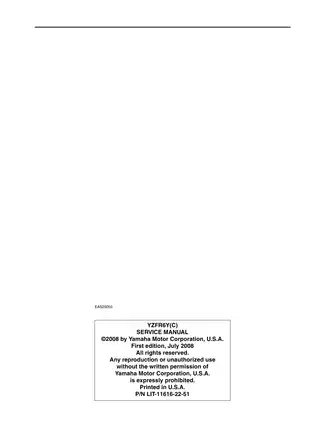

Yamaha publication P/N LIT-11616-22-51 (first edition, July 2008) covers the 2009 YZF-R6Y(C), including 13SE/13SH (USA) and 13SF/13SJ (California). The cover also carries document code 13S-28197-11. Vehicle identification and model-label locations are illustrated.

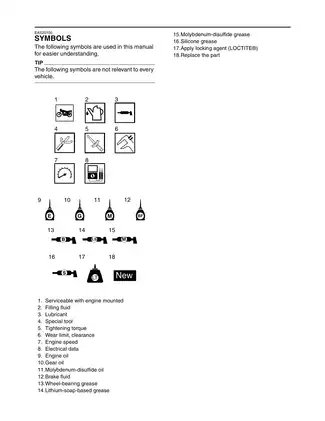

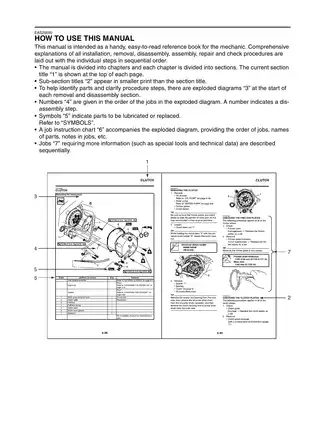

Text Search, Bookmarks and Wiring Detail

Search and diagram detail: Manual text is searchable, but some circuit-diagram lettering and graphical labels are not. Embedded bookmarks cover all nine chapters, major sections and the wiring diagram; “Back to Main” targets a separate Main.pdf file. Small wire-color codes and connector details require zooming for close inspection.

Supplied as one printable English PDF with 434 pages total, including the front and rear covers, seven blank or separator pages, and two large-format wiring-diagram sheets: one monochrome and one color.


Engine, Chassis and Electronic-Control Service

The selected coverage below highlights major workshop topics. Further sections include instrument functions and air-induction reed-valve and solenoid checks.

  • Engine repair: Engine removal, camshaft timing, cylinder-head and valve service, piston inspection, crankshaft bearing selection, and oil-pump inspection.

  • Clutch and transmission: Wet-clutch disassembly, clutch-pack width adjustment, gearbox removal, shift-drum and shift-fork inspection, and shaft assembly.

  • Fuel injection and intake: Throttle-body synchronization, fuel-pressure testing, primary and secondary injector checks, and YCC-T/YCC-I diagnostics.

  • Brakes and chassis: Caliper and master-cylinder repair, hydraulic brake bleeding, front-fork overhaul, steering-head service, and swingarm inspection.

  • Cooling system: Radiator pressure testing, thermostat checks, oil-cooler inspection, and water-pump seal replacement.

  • Electrical diagnosis: ECU fault-code charts, sensor and actuator tests, ignition and charging checks, starting-interlock circuits, and wiring diagrams.

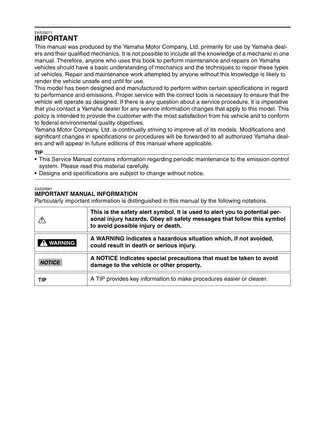

Written primarily for Yamaha dealers and qualified mechanics, this manual assumes a working knowledge of motorcycle mechanics and repair techniques.

Engine Repair and Service Data

Periodic service coverage includes maintenance charts, step-by-step instructions for valve-clearance adjustment and pad selection, compression testing, and engine oil-pressure measurement.

Internal engine procedures pair exploded views and job charts with camshaft lobe dimensions, piston-to-cylinder limits, connecting-rod oil-clearance checks using Plastigauge, and oil-pump rotor clearances.

Separate cylinder-head and crankcase tightening sequences accompany bearing color-code selection charts and fluid-capacity data. The manual explains how mixing up connecting-rod bearings can alter oil clearance and damage the engine.

Clutch and gearbox: Transmission procedures include gear-dog and shaft-runout checks. Clutch plate selection tables identify replacement thickness options by part number for correcting clutch-pack width.

YCC-T, YCC-I and Fuel-System Service

The YCC-T/YCC-I control outline explains electronic throttle and variable intake-funnel operation. Service procedures distinguish the throttle-valve position sensor from the throttle-cable-pulley position sensor, with separate adjustment instructions for each.

Throttle-body checks, cleaning and sensor adjustment are covered, but Yamaha instructs against disassembling the throttle bodies themselves.

Intake-funnel operation checks, EXUP cable adjustment and EXUP servo-motor diagnosis are covered. California-specific sections address the evaporative canister, purge hoses and rollover valve; throttle-body identification marks distinguish the regional assemblies.

Brakes, Suspension and Steering

Brake data includes disc thickness and runout limits, piston-seal inspection and master-cylinder checks. Front-fork procedures cover damper-rod disassembly, seal installation, oil-level setting and air bleeding.

The fork instructions flag the cap-bolt collar projections as vulnerable to breakage during loosening or tightening. Rear suspension coverage includes linkage bearings, swingarm pivots, and rear shock absorber assembly removal, inspection, installation and adjustment.

Follow the factory precautions for hydraulic brake service and the nitrogen-charged rear shock absorber; Yamaha warns against opening the shock body.

Cooling, Lubrication and Special Tools

The engine oil lubrication chart traces the wet-sump circuit, while cooling-system diagrams identify radiator, oil-cooler and water-pump connections. Tool references include fuel-pressure adapter YM-03176 and water-pump seal installer YM-33221-A.

ECU Troubleshooting and Electrical Repair

Ignition and fuel-injection circuit diagrams sit alongside cable-routing drawings and checks for ignition coils, the multi-function meter and starting interlocks. The Self-Diagnostic Function table, Sensor operation table and Actuator operation table support ECU diagnosis and post-repair fault-history clearing.

Fault-code troubleshooting links symptoms to connector checks, harness tests and sensor readings. This helps distinguish a wiring fault from a failed sensor before parts are replaced.

Starter-motor service extends to disassembly, commutator inspection, armature resistance tests, brush inspection and reassembly.

A Preview of Valve, Bearing and Oil-Pump Clearances

The valve-adjustment section specifies clearances on a cold engine at room temperature: 0.12–0.19 mm for intake valves and 0.16–0.23 mm for exhaust valves.

Connecting-rod inspection specifies crankshaft-pin-to-big-end-bearing oil clearance of 0.037–0.061 mm using Plastigauge.

Oil-pump inspection lists standard outer-rotor-to-housing clearance of 0.090–0.150 mm, with a limit of 0.220 mm. The accompanying illustrations identify the measurement locations.
