2009–2010 Kawasaki Vulcan 1700 Nomad / VN1700 Classic Tourer Service Manual (P/N 99924-1414-02)

Kawasaki service manual P/N 99924-1414-02 covers the 2009–2010 Vulcan 1700 Nomad, Nomad ABS, VN1700 Classic Tourer, and Classic Tourer ABS with the 1700cc V-twin. Model-application entries identify VN1700C9F, VN1700CAF, and VN1700DAF.

The English download is a 729-page PDF with searchable service text and embedded bookmarks. Some diagram labels are image-based, and the file includes a maintenance-chart placeholder.

• Engine repair: Engine removal, cylinder-head and piston service, camshaft timing, Hydraulic Lash Adjuster (HLA) bleeding, and Kawasaki Automatic Compression Release (KACR) inspection.

• Clutch and transmission: Hydraulic clutch bleeding and component repair, primary-chain service, crankcase separation, crankshaft inspection, and transmission shaft disassembly.

• DFI and ETV diagnosis: Service-code charts, sensor and actuator tests, fuel-pressure and delivery checks, ECU identification, and throttle-body replacement procedures.

• Brakes and K-ACT ABS: Model-specific caliper repair, hydraulic-unit diagnosis, wheel-sensor checks, service-code reading and clearing, and brake-line bleeding.

• Chassis service: Front-fork disassembly, air-type rear shock adjustment, swingarm and steering bearing service, wheel inspections, and final-drive belt replacement.

• Electrical testing: Charging, ignition, starter-motor, and CAN communication tests, electronic cruise-control switch diagnosis, and separate VN1700C and VN1700D wiring diagrams.

Written primarily for trained mechanics in a properly equipped shop, the manual also supports owners doing basic maintenance and repair who understand mechanics, tool use, and workshop procedures.

Engine Top End and Internal Repair

Top-end coverage includes rocker-arm inspection, valve-guide and valve-seat repair, and piston-ring wear checks. HLA service is described separately; the hydraulic adjusters eliminate routine valve-clearance adjustment.

The manual distinguishes front and rear camshafts and matched cylinder-head/rocker-case assemblies. Its cam-chain precautions explain the risk of valve damage if the crankshaft is turned with a tensioner removed.

Exploded views show assembly details and locking-agent notes. Reference tables provide fastener torques, including cylinder-head nuts and axle hardware, plus fluid capacities, wear limits, and electrical test specifications.

Cooling and Semi-Dry-Sump Lubrication

The Coolant Flow Chart and Engine Oil Flow Chart show circulation through the engine. Procedures cover thermostat and radiator-cap testing, water-pump mechanical-seal replacement, and cooling-system pressure tests.

Lubrication coverage distinguishes the feed and scavenge pumps and the model-specific access to their oil screens. Oil-pressure diagnosis and the semi-dry-sump oil-level inspection procedure are also documented.

Clutch, Transmission, and Belt Drive

Clutch illustrations distinguish VN1700C9F spring and damper components from VN1700CAF/DAF versions. Internal repair coverage extends to connecting-rod bearing selection, balancer-chain installation, shift-drum service, and the positive neutral finder.

The belt section pairs wear-pattern illustrations with pulley inspection and tension-gauge procedures using tool 57001-1585. Handling precautions explain how twisting or sharply bending the belt damages its tensile cords.

DFI, Electronic Throttle, and Electrical Diagnosis

The DFI Diagnosis Flow Chart combines symptom checks with service-code testing. It also addresses fuel-pump, injector, and power-supply faults that self-diagnosis cannot detect, helping trace a no-start or poor-running complaint even when no fault code appears.

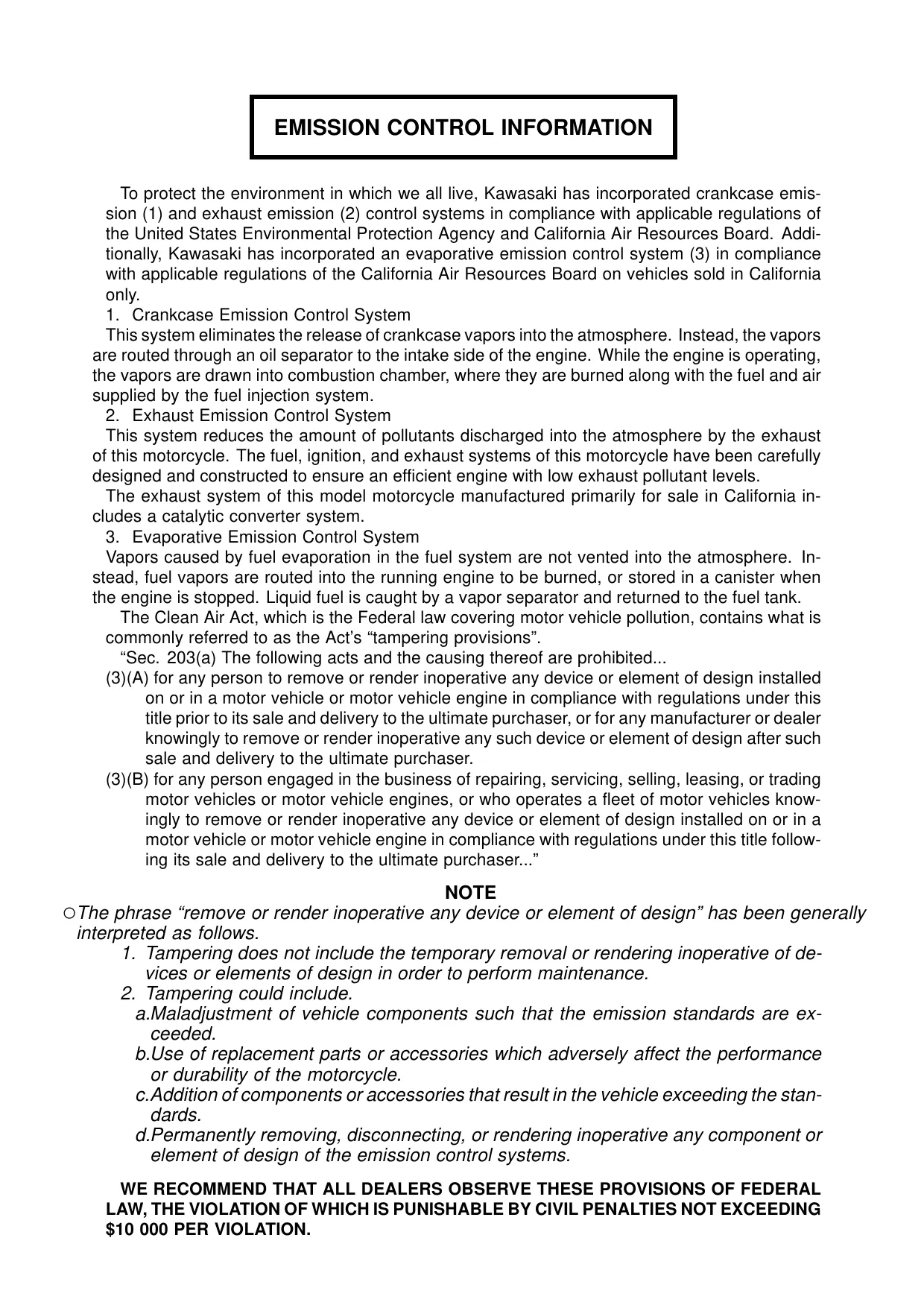

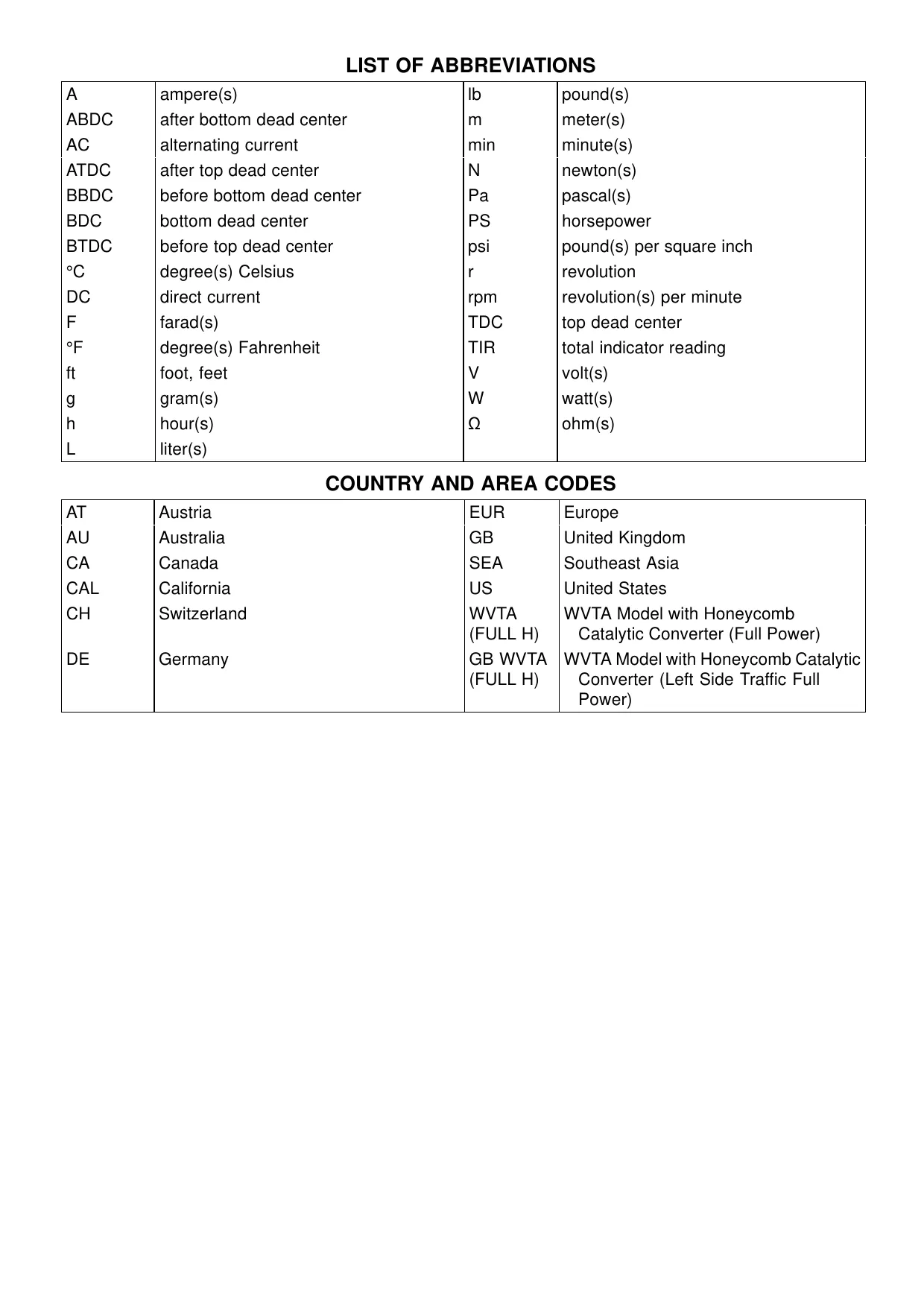

The DFI System Wiring Diagram and ECU terminal maps support circuit tracing. ECU identification tables distinguish market-specific units, while evaporative-emission procedures apply to CAL and SEA models.

Electronic Throttle Valve (ETV) coverage includes ECU learning after ECU or throttle-body replacement. The factory-set throttle-position sensor/ETV actuator and accelerator-position sensor are not independently adjustable.

Electrical sections add NGK ILZKAR7B11 spark-plug inspection, ignition peak-voltage testing, and the cruise-control cancel-switch diagnostic mode.

VN1700C Brakes and VN1700D K-ACT ABS

Separate procedures cover the different front calipers. K-ACT ABS sections provide solenoid, relay, pressure-sensor, and wheel-rotation-sensor fault checks, backed by the K-ACT ABS System Wiring Diagram.

The hydraulic unit is covered for diagnosis and replacement, not internal overhaul. Brake and engine-removal work require the manual’s braking checks and motorcycle-support precautions.

File Format and Readability

Page breakdown: Eight front-matter pages, 720 chapter pages, and one final model-application/P/N page. The chapter count includes the 52-page Appendix, six blank pages, and the one-page “Dummy Page” placeholder; the front matter contains another blank page. The maintenance tables follow the placeholder.

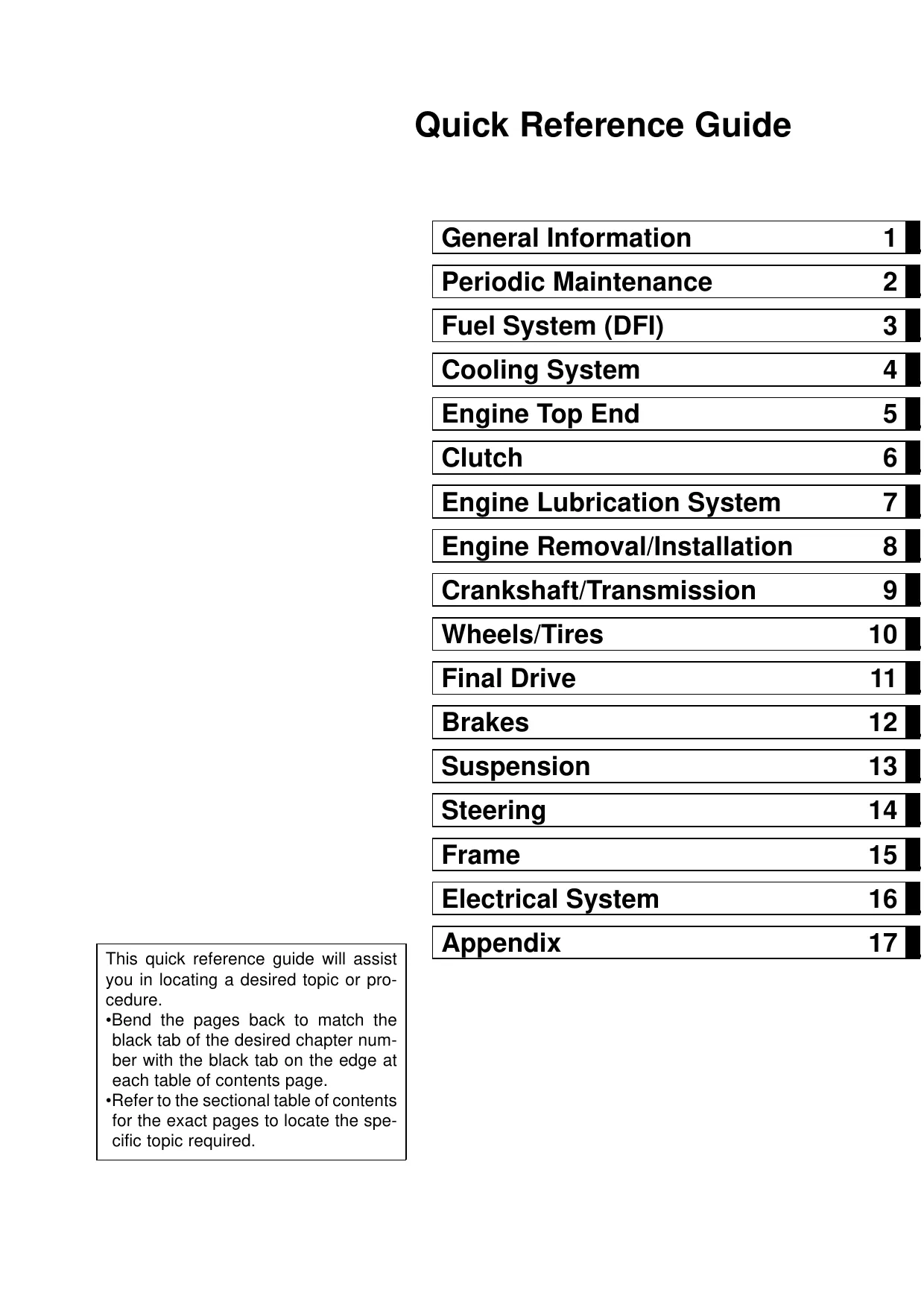

Navigation: Embedded bookmarks cover all 17 chapters and numerous individual procedures.

Wiring diagrams: The VN1700C and VN1700D diagrams span multiple pages. Dense wiring sheets require magnification for small wire-color and connector labels; image-based labels are outside the PDF text search.
