1996–2008 Kawasaki EN500 Vulcan 500 LTD Service Manual (P/N 99924-1194-12)

Kawasaki factory service manual P/N 99924-1194-12 covers the 1996–2008 EN500 Vulcan 500 LTD, including EN500-C1 through EN500-C10 and EN500C6F through EN500C8F models.

• Fuel and emissions: Keihin CVK32 carburetor service, vacuum synchronization, fuel-level adjustment, air-cleaner maintenance, and California evaporative-emission system checks.

• Cooling and lubrication: Cooling-system pressure testing, water-pump seal service, thermostat inspection, oil-pump disassembly, and oil-pressure measurement.

• Engine and transmission: Engine removal, cylinder-head and valve-seat repair, crankcase splitting, crankshaft and balancer inspection, clutch service, and transmission shaft disassembly.

• Wheels and final drive: Hub-bearing replacement, wheel alignment, sprocket inspection, and model-specific drive-chain replacement procedures.

• Brakes: Front caliper and master-cylinder overhaul, brake-line bleeding, rear drum-brake service, and component wear inspections.

• Suspension and steering: Front fork disassembly, oil changes and seal replacement, rear shock checks, swingarm service, and steering-stem bearing replacement.

• Electrical diagnosis: Charging and ignition tests, starter-motor repair, junction-box checks, market-specific wiring diagrams, and cable, wire, and hose routing views.

Written primarily for trained mechanics in a properly equipped shop, it also supports owners doing basic maintenance and repair who understand mechanical fundamentals, tools, and workshop procedures.

Carburetion and Emission-Control Variants

Keihin CVK32 carburetor data distinguishes N2WE and N2WD jet needles by market and model group. The fuel-level and synchronization sections identify the required gauges, including Fuel Level Gauge 57001-1017 and Vacuum Gauge 57001-1369.

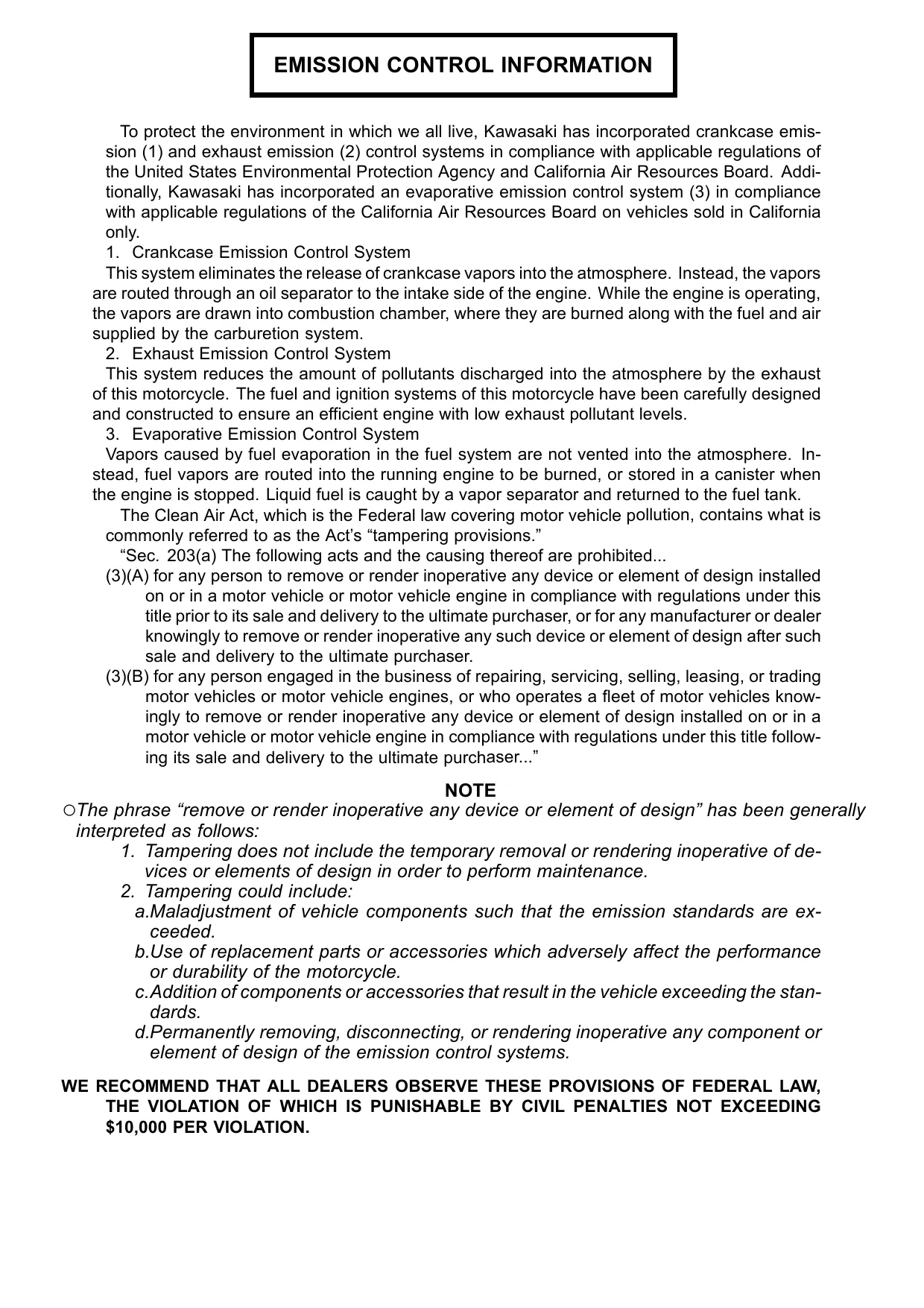

California-only evaporative-emission documentation covers canister and liquid/vapor-separator checks. The Clean Air System section separately addresses air-suction valves and vacuum-switch testing.

Water-Pump Seals and Cooling-System Diagnosis

Water-pump housing procedures cover oil-seal and mechanical-seal replacement. Radiator-cap and thermostat tests address separate causes of coolant loss or overheating.

Please review the factory safety protocols and use properly calibrated tools, particularly around hot coolant and the battery-connected radiator fan.

Internal Engine Repair and Transmission Assembly

Measurement tables cover piston-ring wear, cylinder boring and honing, and crankshaft bearing-insert selection using Plastigage. Cylinder-head assembly distinguishes fastener sizes and tightening sequences.

The clutch chapter distinguishes plate-and-hub service from clutch-housing and primary-chain removal, which requires major disassembly.

The Engine Oil Flow Chart accompanies lubrication-system diagnosis. Market-specific Periodic Maintenance Charts, torque and locking-agent tables, and a Unit Conversion Table support routine service reference.

The non-return camshaft chain tensioner section explains how incorrect handling after loosening its mounting bolts can damage the tensioner and chain. Output-shaft instructions also flag grease on the positive neutral finder's steel balls as a cause of shifting malfunction.

Brake, Fork, and Final-Drive Service

Separate front hydraulic-disc and rear drum-brake procedures extend to piston and seal inspection, brake-disc runout, drum measurements, and rear brake-cam alignment.

Fork repair includes guide-bushing replacement and oil-level measurement with Fork Oil Level Gauge 57001-1290. Rear shock coverage addresses preload adjustment and wear checks; steering procedures reach tapered-roller bearing inspection and replacement.

For EN500-C9 and later models, chain replacement includes EK JOINT Tool #50 references and riveted-joint inspection data.

Electrical Tests and Market-Specific Wiring

The Wiring Diagrams separate U.S./Canadian models from other markets and distinguish changes across the C-series. That distinction helps match headlight-relay and junction-box checks to the correct wiring configuration.

Junction Box Internal Circuit drawings accompany relay, diode, and terminal-continuity tests. Charging, IC-igniter, and starter sections provide component-specific measurements.

The appendix Troubleshooting Guide groups common starting, idling, overheating, and shifting symptoms. Cable, Wire, and Hose Routing views show harness and hose installation details.

A Preview of Valve, Oil-Service, and Cooling Data

With the engine cold at room temperature, intake-valve clearance is 0.13–0.18 mm. The oil-service instructions list 29 N·m for the engine oil drain plug.

The coolant specification gives a total of 1.3 L up to the FULL mark. The leak-test instructions separately set 123 kPa as the maximum cooling-system test pressure.

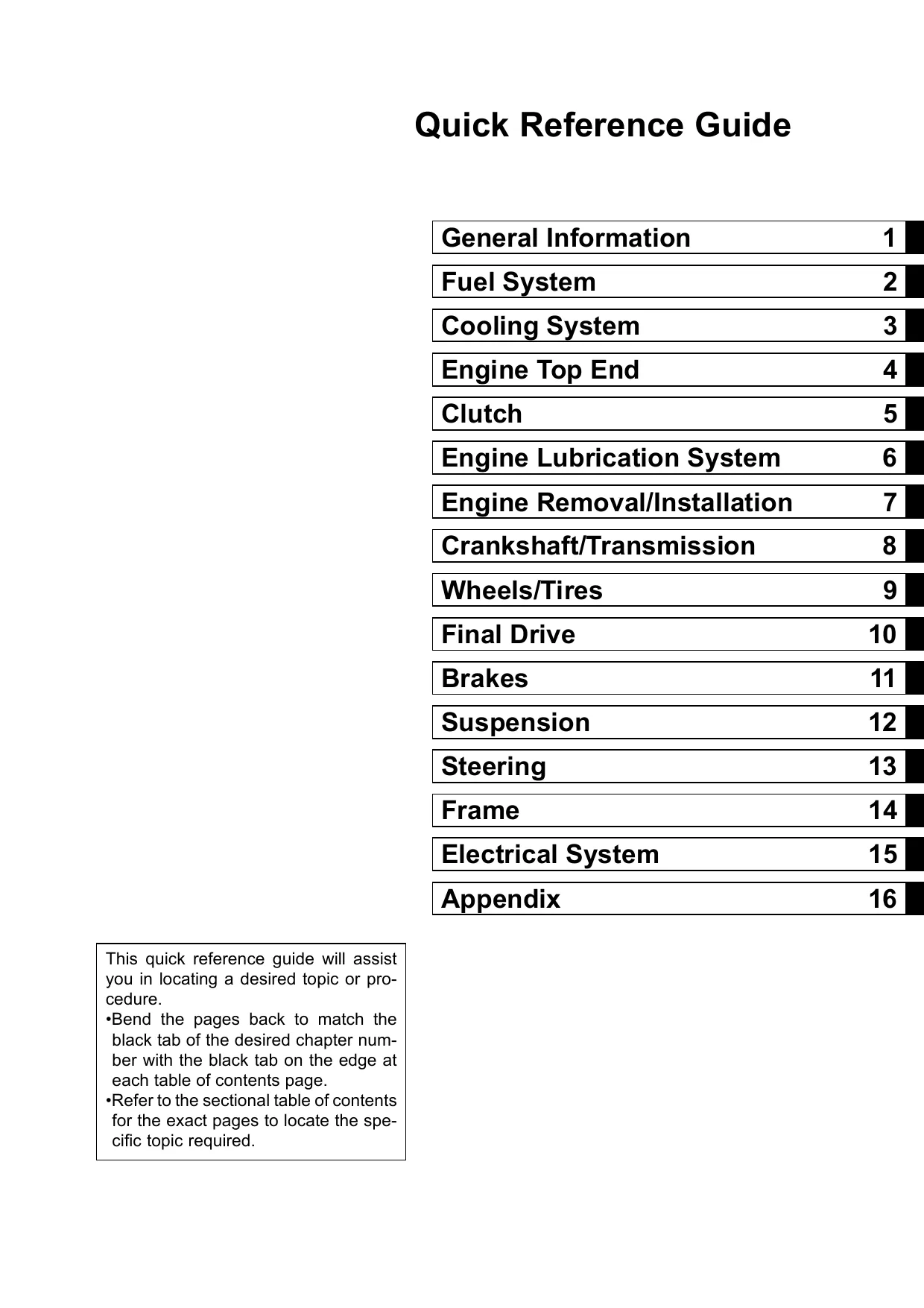

Service-Text Search, Bookmarks, and Wiring Detail

Finding procedures and circuit detail: Service text is searchable, and embedded bookmarks navigate chapters and individual procedures. Labels within the full wiring-diagram images are not text-searchable; small wire codes, terminal numbers, and switch tables require zooming.

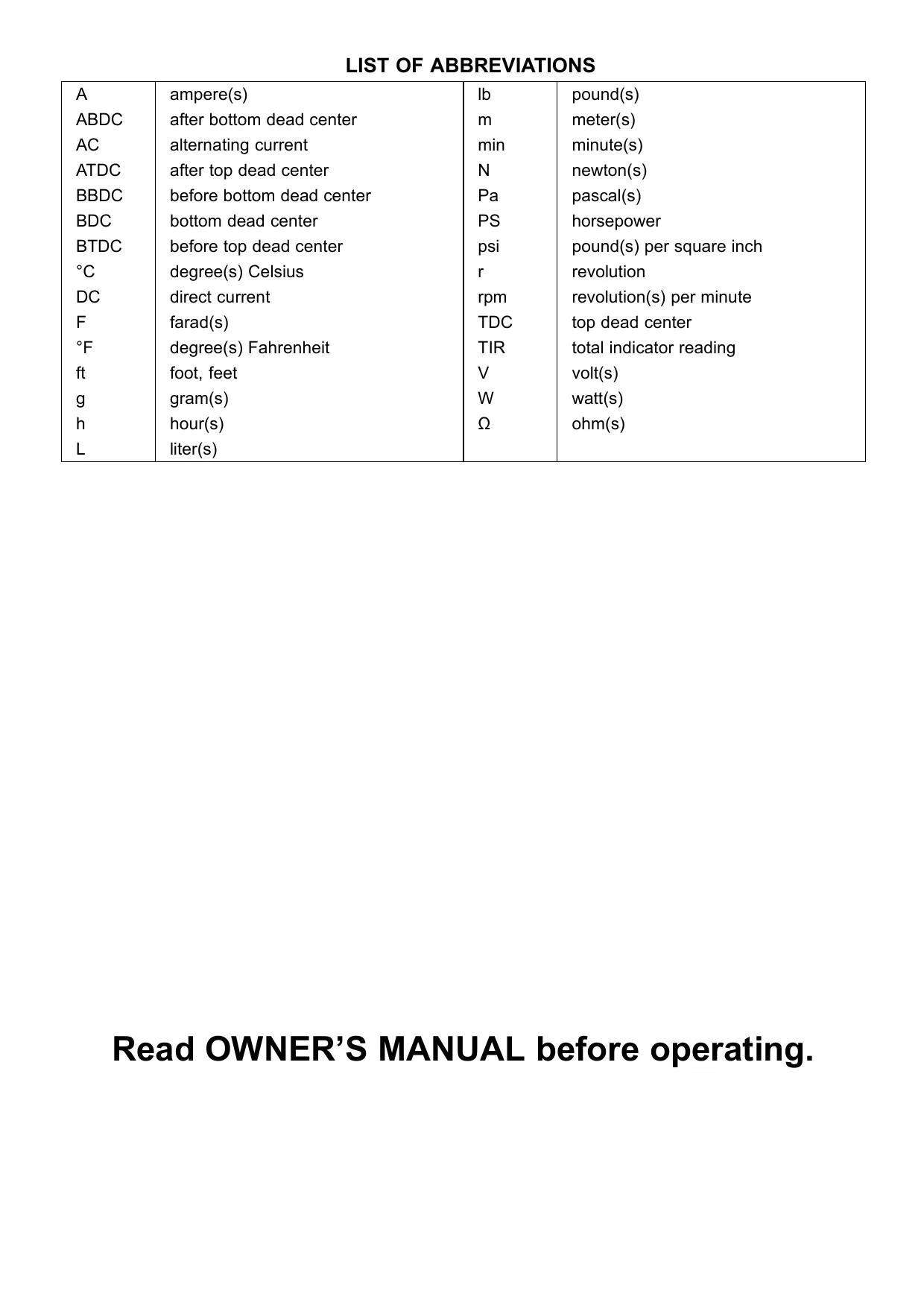

One printable English PDF contains 351 pages: 8 cover/front-matter pages, 342 pages of service chapters and appendix, and the 1-page model-application back cover. The total includes 11 blank pages.
