1995–1999 Volvo A30C Articulated Hauler Service Manual (Engine Product No. 8188140)

Volvo factory service information for the 1995–1999 A30C articulated hauler, equipped with the TD 103 KBE engine, PT 1663 transmission and FL650E dropbox. The service sheets are dated March 6, 2013. The engine product number is 8188140.

• Engine and fuel: Valve adjustment, fuel bleeding, injection timing, feed-pressure checks, automatic timing adjuster testing and torque-converter stall diagnosis.

• Cooling and fan drive: Cooling-system checks, thermostat-valve testing, fan-speed adjustment and piston-ring replacement in the hydraulic fan motor.

• Transmission and electrical diagnosis: Contronic fault codes, sender and solenoid tests, transmission removal and installation, and circuit wiring diagrams.

• Brake service: Disc and pad replacement, hydraulic bleeding, parking-brake caliper reconditioning, spring brake cylinder repair and compressed-air system checks.

• Steering and tipping: Linkage adjustment, steering-cylinder stroke checks, hydraulic pressure testing, pump internal-leakage checks and tipping-system operation.

• Frame and driveline: Differential-lock adjustment, tractor/load-unit separation, hitch bearing replacement, load-body alignment and reference data for the bogie suspension.

• Air conditioning: R134a recovery, evacuation, filling, leak detection and functional checks using the specified refrigerant service equipment.

The diagnostic procedures and heavy-component handling make this manual suitable for experienced heavy-equipment technicians with the specified test instruments, lifting equipment and workshop knowledge.

Engine Adjustment and Cooling-System Service

Fuel-system procedures cover the injection pump and automatic alpha timing adjuster, including checks with the Volvo service display. Starting after running out of fuel without first bleeding the system can severely damage the injection pump. Internal engine repair requires the separate engine service manual referenced in the text.

Cooling-system principle diagrams distinguish the engine and intercooler circuits. Turbocharger specifications, thermostat-valve tests and an exploded view of the hydraulic fan motor support component checks and the documented piston-ring replacement procedure.

Transmission Fault Tracing and Removal

The transmission hydraulic diagram and automatic gearshift wiring diagrams connect operating symptoms with the control system. Contronic error codes, ECU indications and EA/EB/EH connector resistance checks help distinguish external harness or sender faults from faults within the transmission electrical system. Tests use the service display 9993721 and multi-pin breakout box 11668001-8.

Removal procedures cover access from below and upward through the cab door opening, with drawings for the lifting arrangements. The torque converter can slide out and be damaged unless secured during removal.

Brakes, Steering and Articulated Chassis

The compressed-air circuit diagram explains the air-over-hydraulic service brakes and spring-applied parking brake. Relay-valve and foot-brake-valve section views clarify the pneumatic controls; parking-brake coverage extends to the automatic adjuster and spring brake cylinder reconditioning.

The combined steering, tipping and fan hydraulic diagram shows shared pump connections and steering priority. Pressure and internal-leakage checks support hydraulic diagnosis, while the chassis sections cover longitudinal and transverse differential locks, propeller shafts, steering cylinders, tipping cylinders and bogie suspension. Hitch bearing replacement and load-body alignment have their own procedures.

Workshop References and Service Precautions

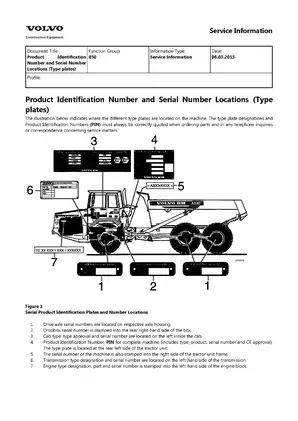

The time guide lists labor operations and allowances. Metric and UNC torque tables sit alongside assembly-specific tightening data, including engine flywheel housing and transmission attachments. Identification illustrations locate engine block markings, transmission serial numbers and axle housing tags.

E-tool welding, detail, composite and dimensional drawings cover transmission lifting and body-support fixtures, including E1057C, E1643/E1644 and E1645. Safety instructions address articulation locking, raised-body support, residual hydraulic and air pressure, battery handling, welding near electronic controls and heat-damaged fluor rubber.

R134a charging instructions use weighed refrigerant quantities because the receiver dryer has no sight glass. Connection illustrations cover recovery, evacuation and charging equipment.

Examples of Oil-Pressure and Solenoid Test Values

These lubrication and electrical values are a small selection of the manual’s technical data. With the TD 103 KBE warm, minimum oil pressure at low idle is 80 kPa (0.8 bar); at operating speed, the specified range is 300–500 kPa (3–5 bar).

For the PT 1663 control system, the EA connector table specifies 25 ohms at 20°C (68°F) for each of the S11 and S13 modulation solenoids, with a ±10% tolerance.

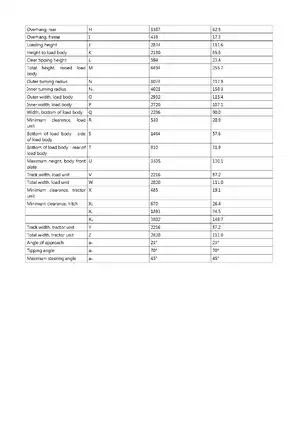

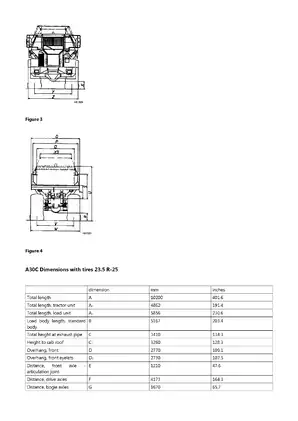

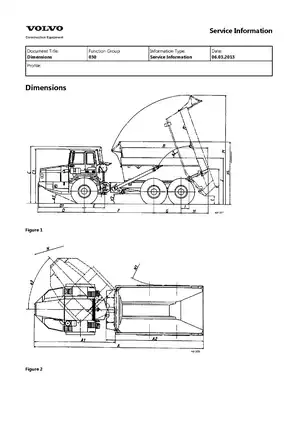

Printable Pages, Search and Diagram Detail

Text access and diagrams: PDF text search is unavailable, and there are no embedded bookmarks. Small wiring labels require zooming. Some internal cross-references appear as unresolved placeholders.

One printable English-language PDF contains 450 pages, including the service sheets, time guide, tool drawings and circuit diagrams. All of these pages are included in the stated total.
