2008 Kawasaki Vulcan 900 Custom (VN900) Service Manual (P/N 99924-1373-03)

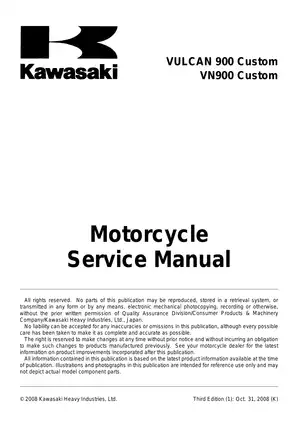

Kawasaki’s factory service manual covers the 2007–2009 Vulcan 900 Custom / VN900 Custom, identified as VN900C7F, VN900C8F, and VN900C9F. P/N 99924-1373-03 is the Third Edition (1), dated October 31, 2008, with maintenance, diagnostic, and repair procedures organized into seventeen chapters.

Searchable Text, Bookmarks, and Wiring Detail

Text search and diagram navigation: Body text is searchable, and embedded bookmarks provide chapter and subsection navigation. Some labels within wiring diagrams are not searchable. Small connector numbers and wire-color codes require zooming in the detailed diagrams.

The download contains one printable, English-language 611-page PDF. This total includes the covers, introductory material, model-application page, 13 blank pages, and one placeholder page.

DFI Diagnosis, Engine Repair, and Chassis Service

These selected content highlights outline the main workshop coverage; additional topics include meter-unit testing and cable, wire, and hose routing.

• Engine repair: Step-by-step procedures cover engine removal, cylinder-head work, camshaft timing, piston service, and valve-clearance adjustment using rocker arms and shims.

• Fuel injection: DFI self-diagnosis, service-code interpretation, sensor and injector testing, fuel-pressure checks, and throttle body assembly removal and installation.

• Clutch and drivetrain: Clutch-plate inspection, crankcase separation, transmission disassembly, shift-fork checks, starter-clutch inspection, and final-drive belt and pulley service.

• Cooling and lubrication: Cooling-system pressure testing, thermostat inspection, water-pump mechanical-seal replacement, oil-pump service, and engine oil-pressure measurement.

• Brakes and chassis: Brake-line bleeding, caliper and master-cylinder repair, front-fork seal replacement, swingarm linkage service, and steering-bearing replacement.

• Electrical troubleshooting: Charging-system tests, ignition peak-voltage measurements, starter-motor overhaul, interlock checks, and model-specific wiring diagrams.

Written primarily for trained mechanics in a properly equipped shop, the manual also supports owners performing basic maintenance and repair who understand mechanical fundamentals, tools, and workshop procedures; work beyond their experience is directed to qualified mechanics.

DFI Fault Tracing and Fuel-System Limits

The DFI Diagnosis Flow Chart connects symptom assessment with electrical and fuel-system checks. Dealer modes distinguish current faults from stored fault history, with service-code reading and clearing procedures using the FI indicator light. Connector terminal references let technicians compare multimeter readings with the relevant sensor specifications.

Separate DFI System Wiring Diagrams distinguish models with and without oxygen sensors, including wiring differences between the earlier models and C9F. Evaporative emission control coverage applies to California, Thailand, and South East Asia models and includes canister inspection and separator testing.

Throttle body service: Cleaning and assembly replacement are covered, but the main throttle sensor, subthrottle sensor, and subthrottle valve actuator are factory-set components that must not be readjusted. The fuel-pump screen and filter are treated as part of the pump assembly when replacement is required.

Cylinder Heads, Timing, and Internal Engine Work

Valve Clearance Adjustment Charts support shim selection. Cylinder-head coverage extends to valve-guide replacement and valve-seat repair, while the bottom-end sections include connecting-rod bearing selection and crankshaft inspection.

The camshaft section explains front/rear identification and timing alignment. It also warns that turning the crankshaft with the tensioner cap bolt removed can damage the tensioner, cylinder, and valves.

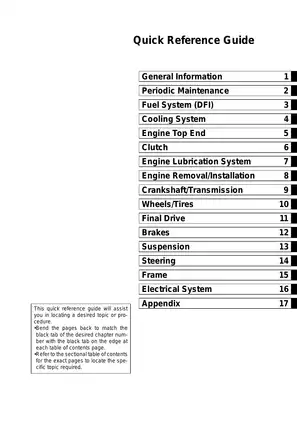

Torque tables, wear limits, fluid specifications, and spark-plug data accompany the procedures. The Quick Reference Guide and chapter contents help locate these references.

Cooling, Drivetrain, and Chassis Details

The Coolant Flow Chart explains circulation through the engine and radiator. Water-pump instructions distinguish mechanical-seal replacement from bearing and oil-seal work that requires crankcase separation.

Transmission and belt drive: Internal assembly coverage includes the positive neutral finder. The torque limiter is inspected and replaced as an assembly, not disassembled. The Drive Belt Wear and Damage Analysis table relates visible wear patterns to inspection or replacement decisions; belt-handling cautions explain how excessive bending or twisting damages the tensile cords.

Front-fork instructions cover guide bushings, seals, and oil-level setting, with the specified seal driver identified as 57001-1219. Rear suspension coverage includes preload adjustment and linkage-bearing replacement; damaged rear shock absorbers are replaced as assemblies.

Charging, Ignition, and Relay Tests

Alternator output and stator-coil resistance checks are separated from regulator/rectifier tests, helping distinguish charging-system faults before selecting replacement parts. Ignition-coil and crankshaft-sensor peak-voltage procedures identify the test connections and required adapter.

The Relay Box Internal Circuit supports relay and diode checks. Regional wiring diagrams and starter-interlock tests provide further references for tracing starting and electrical faults.

A Preview of Oil-Fill, Valve, and Belt Specifications

The lubrication tables list 3.7 L for a completely dry engine, with separate quantities for routine oil changes.

Inlet valve clearance is 0.10–0.15 mm with the engine cold at room temperature.

For a cold drive belt with the rear wheel raised, standard deflection is 1.5–4.0 mm under 45 N. A separate 1.5 mm specification under the same force applies when installing a new belt or remounting the engine.

Follow the manual’s shop-safety precautions and use the specified equipment, particularly for fuel-system testing, brake work, and supporting the motorcycle during engine or wheel removal.
