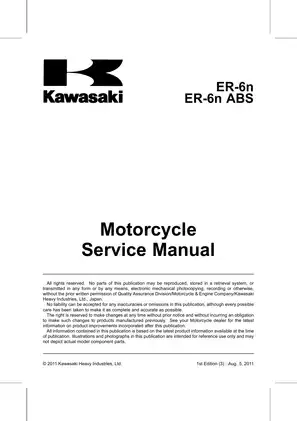

2012 Kawasaki ER-6n / ER-6n ABS (ER650EC / ER650FC) Service Manual (P/N 99924-1453-01)

Kawasaki’s service manual covers the 2012 ER-6n (ER650EC) and ER-6n ABS (ER650FC). Publication P/N 99924-1453-01, 1st Edition (August 5, 2011), documents periodic maintenance, fault diagnosis, and repair of the engine, transmission, chassis, and electrical systems.

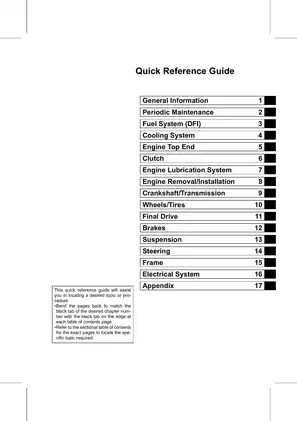

PDF Navigation and Wiring Detail

Finding procedures and circuits: Searchable PDF text and embedded bookmarks provide access to chapters and individual service topics. Small component labels and wire-color codes in the main wiring diagrams require zooming for comfortable reading.

One printable, English-language PDF contains 629 pages, including the original covers, introductory material, model-application page, and nine blank pages.

Engine Overhaul, DFI Diagnosis, and ABS Service

These are selected service topics; the manual also includes starter-motor overhaul and fuel-level sensor inspection.

• Engine and transmission: Engine removal and installation, cylinder-head service, crankcase separation, crankshaft inspection, clutch repair, and transmission disassembly and assembly.

• DFI and emissions: Service-code retrieval, sensor and injector testing, fuel-pressure checks, throttle-body synchronization, and evaporative-emission system inspection for applicable variants.

• Cooling and lubrication: Coolant replacement and flushing, pressure testing, thermostat inspection, water-pump service, oil-pump inspection, and lubrication-circuit checks.

• Brakes and ABS: Caliper and master-cylinder service, brake bleeding, wheel-rotation sensor checks, ABS self-diagnosis, and hydraulic-unit testing and replacement.

• Suspension and chassis: Front-fork disassembly and assembly, rear-shock inspection and replacement, swingarm-bearing service, steering-stem adjustment, and wheel and drive-chain maintenance.

• Electrical references: Charging and ignition tests, sensor voltage references, model-specific wiring diagrams, diagnostic flowcharts, and cable, wire, and hose routing illustrations.

Written primarily for trained mechanics in a properly equipped shop, the manual also supports owners performing basic maintenance and repair who understand mechanical principles, tool use, and workshop procedures.

Maintenance Planning and Engine Repair

The periodic maintenance chart, tightening tables, exploded views, and component inspection limits help organize workshop jobs and identify the tools and replacement items needed before disassembly. Step-by-step procedures cover engine vacuum synchronization, front-fork oil changes, valve-clearance adjustment, and other scheduled work.

Internal engine work: Cylinder-head and valve service extends to camshaft timing, piston inspection, crankshaft measurements, and bearing-insert selection. The transmission section covers shaft and gear disassembly, shift-fork inspection, and reassembly rather than stopping at external adjustment.

Reassembly cautions: The camshaft-chain tensioner section explains how incorrect handling of its non-return mechanism can damage the tensioner and chain. Connecting-rod instructions identify the stretch-bolt fastening method, prohibit bolt reuse, and explain precautions against bolt-head contact with the crankcase.

DFI Fault Isolation and Electrical Testing

The DFI Diagnosis Flow Chart links self-diagnosis with wiring, connector, and component checks. Sensor input/output references and service-code sections help distinguish circuit faults from component faults before replacement decisions are made.

Separate Wiring Diagrams for the ER650E and ER650F show the relevant electrical configurations. The electrical chapter adds charging-system checks, ignition diagnosis, relay-box testing, and switch continuity tables.

Cooling Circuits and ABS Coverage

The Coolant Flow Chart and Engine Oil Flow Chart show circulation paths alongside the related inspection procedures. Cooling-system coverage includes leak testing, radiator and fan removal, and thermostat checks.

The ABS Diagnosis Flow Chart supports the dedicated service-code and wheel-sensor sections. ABS hydraulic-unit coverage concerns diagnosis, removal, installation, and replacement; the unit is factory assembled and adjusted, rather than intended for internal repair.

Forks, Steering, and Frame Components

Front-fork procedures include seal and bushing replacement, with the Front Fork Oil Seal Driver identified as tool 57001-1219. Steering-stem bearing work, swingarm service, and rear-shock inspection are covered separately.

The frame chapter addresses seats, fairings, covers, footpeg stays, and frame inspection. Cable, wire, and hose routing illustrations support correct reassembly, including evaporative-emission routing for SEA-B1 and TH models.

Working on motorcycles carries inherent physical risks, so always ensure your workspace is properly ventilated and standard shop safety protocols are followed before beginning diagnostic work.

A Preview of Fluid, Adjustment, and Electrical Specifications

Engine-oil capacity is 2.3 L when the engine is completely dry. Cooling-system capacity is 1.2 L with the reserve tank at its full level, including the radiator and engine.

Idle-speed inspection specifies 1,300 ±50 rpm with the engine thoroughly warmed. The valve-clearance section gives an intake standard of 0.15–0.21 mm and provides Valve Clearance Adjustment Charts for shim selection.

Rear-wheel installation specifies 108 N·m for the rear axle nut. The electrical specifications list alternator rated output as 24 A/14 V at 5,000 rpm.
