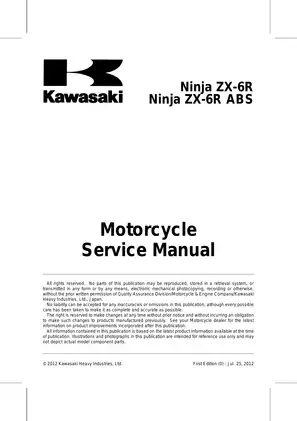

2013 Kawasaki Ninja ZX-6R / ZX-6R ABS Service Manual (P/N 99924-1462-01)

• A 732-page PDF of Kawasaki Part No. 99924-1462-01, First Edition (0), dated July 25, 2012, covering the 2013 Ninja ZX-6R and Ninja ZX-6R ABS, with ZX636ED and ZX636FD model codes.

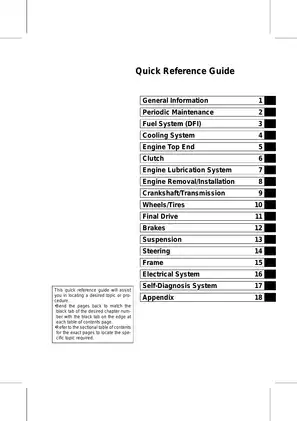

• Covers engine removal, cylinder-head and valve service, crankcase splitting, crankshaft/rod/piston inspection, clutch work, and six-speed transmission disassembly and reassembly.
• Details DFI/ECU fault isolation with service-code reading and erasing, fuel pressure and flow tests, throttle-body synchronization, sensor and actuator checks, and CAN communication diagnosis.
• Includes conventional brake overhaul and bleeding plus KIBS/ABS troubleshooting, hydraulic-unit replacement, wheel-rotation sensor tests, service codes, and circuit checks for equipped models.
• Handles front-fork oil service and complete disassembly, suspension setup, swingarm and linkage bearings, steering-stem work, wheels, tires, and chain final drive.
• Documents scheduled maintenance including valve-clearance service, cooling-system service, drive-chain adjustment, brake-fluid work, steering checks, and component-specific torque, wear-limit, capacity, clearance, and electrical test data.
• Provides market- and KIBS-specific wiring diagrams, DFI and KIBS circuits, electrical testing, meter checks, immobilizer key registration, and KTRC/Power Mode indicator checks.

Coverage and Intended User

Kawasaki states that this factory service manual is written primarily for trained mechanics in a properly equipped shop. It is also suited to owners performing basic maintenance and repair when they already understand standard tools and workshop procedures. The internal-engine, KIBS, immobilizer, and precision electrical procedures are geared to the equipped-shop audience.

Check the frame number before ordering. The model-application page lists these beginning frame numbers: ZX636ED - JKBZXJE1□DA000001 and JKBZX636EEA000001; ZX636FD - JKBZXJF1□DA000001 and JKBZX636EFA000001. The square represents a digit that changes from one motorcycle to another. Market-specific material separates US/CA/CAL wiring from other-market diagrams and identifies CAL evaporative-emission, oxygen-sensor, immobilizer, and KIBS-equipped configurations where applicable.

Engine and Drivetrain Repair Depth

Repair coverage extends from normal service to internal engine and gearbox work. The engine chapters cover compression testing, camshaft timing, cam-chain tensioner service, cylinder-head removal, valve-guide replacement, valve-seat repair, crankcase splitting, bearing-insert selection, pistons, connecting rods, starter clutch, clutch pack, shift drum and forks, and transmission shafts. Cooling and lubrication sections add system pressure testing and flushing, water-pump and mechanical-seal service, oil-pump and relief-valve work, oil-pressure measurement, and coolant and engine-oil flow charts.

Chassis, Brakes, and Suspension

Brake repair includes caliper and master-cylinder disassembly, pad and disc inspection, fluid replacement, line bleeding, and hose and pipe service. On KIBS-equipped machines, separate material covers the hydraulic unit, ABS/KIBS indicators, wheel sensors and rotors, system circuits, stored codes, relay faults, CAN faults, and fluid-pressure sensor diagnosis.

The fork receives adjustment, oil-change, disassembly, assembly, seal, spring, and tube inspection procedures. Rear suspension coverage includes shock adjustment, removal and inspection, swingarm service, and tie-rod and rocker-arm bearings. One important scope limit: the rear shock section stops at adjustment, removal, inspection, and disposal; it does not provide an internal shock rebuild procedure.

Diagnostics, Diagrams, and Factory Tools

The self-diagnosis chapter traces DFI, ignition, KTRC-related, immobilizer, and KIBS faults through named service codes and electrical checks. Diagram coverage includes the DFI System Wiring Diagram, KIBS System Circuit, four regional/KIBS main wiring-diagram configurations, Meter Unit Circuit, Coolant Flow Chart, and Engine Oil Flow Chart, along with connector and terminal views, routing drawings, and exploded assemblies. The appendix adds cable, wire, and hose routing plus a symptom-based troubleshooting guide for starting, running, shifting, overheating, handling, braking, and charging complaints. Kawasaki identifies that general guide as a starting point rather than an exhaustive fault list.

Representative called-out tools show the expected shop setup: Vacuum Gauge 57001-1369 and Throttle Sensor Setting Adapter 57001-1538 for DFI work, Crankcase Splitting Tool Assembly 57001-1362, Fork Oil Level Gauge 57001-1290, Hand Tester 57001-1394, and Key Registration Unit/Adapter 57001-1582 / 57001-1746.

The manual also flags repair mistakes that can damage expensive parts. The upper and lower crankcase halves are factory-machined as a matched set and must be replaced together, while prying the fuel-hose joint lock can permanently deform it and leave a leak-prone connection. The KIBS hydraulic unit is factory-set and not internally repairable; impact, contamination, or attempted disassembly can ruin it. Engine removal, pressurized fuel and cooling work, brake hydraulics, and nitrogen-charged shock disposal should be handled with the specified support equipment, tools, and factory safety precautions.
