Kawasaki Ninja 650 / ER-6f 2012–2013 Service Manual, incl. ABS (P/N 99924-1454-02)

651 Pages • Printable PDF • 13.28 MB • Download

4.7starstarstarstarstar_half(3)
$18.99 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Kawasaki Models Covered & Key Technical Specifications

Models: Ninja 650, Ninja 650 ABS, ER-6f, ER-6f ABS

Models & Model Codes:

Ninja 650 — EX650EC, EX650ED

Ninja 650 ABS — EX650FC, EX650FD

ER-6f — EX650EC, EX650ED

ER-6f ABS — EX650FC, EX650FD

Sub-models / Variants: EX650E (Other than IN Model), EX650E (IN Model), EX650F

Model Years: 2012–2013

Beginning frame numbers:

EX650EC: JKAEXEE1□CDA00001 / JKAEX650EEDA00001

EX650FC: JKAEXEF1□CDA00001 / JKAEX650EFDA00001

EX650ED: JKAEXEE1□DDA08851 / JKAEX650EEDA08851

EX650FD: JKAEXEF1□DDA02883 / JKAEX650EFDA02883

□ denotes the machine-dependent digit.


  • Engine: 4-stroke, DOHC, 2-cylinder

  • Engine displacement: 649 cm³ (39.6 cu in.)

  • Maximum horsepower: 53 kW (72.1 PS) @ 8,500 rpm (except AU LAMS, SEA-B1/B2, TH, US, CA and CAL); 35 kW (47.6 PS) @ 8,000 rpm (AU LAMS); 52 kW (70.7 PS) @ 8,000 rpm (SEA-B1/B2 and TH)

  • Maximum torque: 64 N·m (47 ft·lb) @ 7,000 rpm (except AU LAMS, US, CA and CAL); 55 N·m (41 ft·lb) @ 3,800 rpm (AU LAMS)

  • Transmission: 6-speed, constant mesh, return shift

  • Fuel system: Digital Fuel Injection (DFI)

  • Curb mass: 209 kg (461 lb) to 211 kg (465 lb) depending on model variant

  • Fuel tank capacity: 16 L (4.2 US gal.)

  • Spark plug: NGK CR9EIA-9

Kawasaki Manual Features & Selected Content Preview

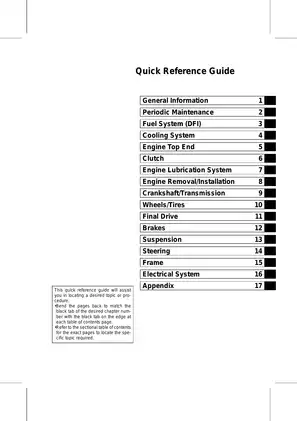

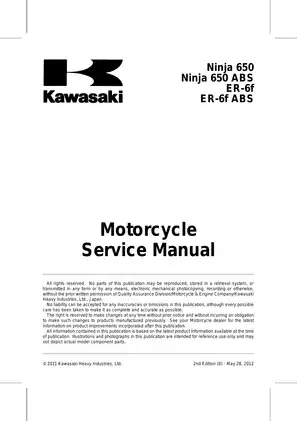

Kawasaki factory service manual for the 2012–2013 Ninja 650 and ER-6f, including ABS-equipped models in the EX650E/EX650F series. This is the 2nd Edition, dated May 28, 2012, P/N 99924-1454-02.

PDF Text Search and Diagram Detail

Search, bookmarks, and small labels: Service text is searchable, with embedded bookmarks for chapters and individual procedures. Labels within wiring diagrams and some charts are not searchable. Small wiring labels require zooming for comfortable reading.

One printable, English-language PDF with 651 pages: 629 numbered chapter and appendix pages, 10 preliminary pages, 11 blank separator pages, and one model-application back page.


Engine Overhaul, DFI Tests and ABS Service

These coverage highlights show selected contents rather than a complete table of contents. Further topics include fairing removal and evaporative-emission checks for equipped models.

  • Periodic maintenance: Service schedules, throttle-body vacuum synchronization, shim-type valve-clearance adjustment, fluid changes, and scheduled replacement procedures.

  • Engine and transmission: Step-by-step procedures for engine removal, cylinder-head and piston work, crankcase separation, bearing inspection, clutch repair, and transmission disassembly.

  • Fuel system and DFI: On-board service-code retrieval, fuel-pressure and delivery tests, injector-circuit checks, and sensor voltage and resistance testing.

  • Cooling and lubrication: Coolant replacement, radiator pressure testing, thermostat inspection, water-pump service, oil-pump removal, and oil-pressure measurement.

  • Brakes and ABS: Caliper and master-cylinder service, brake-line bleeding, ABS fault diagnosis, hydraulic-unit replacement, and wheel-rotation-sensor inspection.

  • Chassis and final drive: Front-fork disassembly, rear-shock preload adjustment, swingarm and wheel-bearing service, steering-stem work, and chain and sprocket replacement.

  • Electrical troubleshooting: Charging-system and ignition tests, starter-motor overhaul, interlock checks, and model-specific wiring diagrams.

Written primarily for trained mechanics in a properly equipped shop, the manual also supports owners doing basic maintenance and repair who understand mechanics, tool use, and workshop procedures.

DFI Diagnosis and Factory-Set Components

Factory charts cover engine-vacuum checks, injector circuits, and ECU power supplies. The diagnostic sections distinguish current service-code readings from stored fault history accessed through KDS, the Kawasaki Diagnostic System.

The main throttle sensor, subthrottle sensor, and subthrottle valve actuator are factory-set components rather than adjustment points. Testing and replacement decisions are covered; the fuel pump’s built-in filter and pressure regulator are not separately serviceable.

Because motorcycle diagnostics involve high-pressure fuel systems and moving mechanical parts, referencing proper factory procedures is vital to maintain workshop safety and vehicle integrity.

Cylinder-Head, Crankshaft and Transmission Repair

Cylinder-head work includes valve-guide and valve-seat procedures, camshaft timing, and Valve Clearance Adjustment Charts. Crankshaft/Transmission coverage adds color-coded bearing-insert selection, Plastigage clearance checks, and shift-fork and gear-dog inspection. Reference tables list ignition timing and individual transmission gear ratios.

The non-return camshaft-chain tensioner warning addresses damage to the tensioner and timing chain from partial loosening and retightening.

Connecting-rod assembly uses plastic-region fastening with bolt-stretch measurement; the manual warns that overextended bolts can break in service and prohibits bolt reuse.

ABS Diagnosis and Suspension Limits

ABS troubleshooting covers solenoid and motor-relay checks, wheel-sensor circuits, and service-code interpretation. Hydraulic-unit removal and installation are included, but internal disassembly or repair of the hydraulic unit and wheel sensors is expressly excluded.

Fork service extends to bushings, oil seals, and oil-level measurement. The fork’s spring and damper settings are nonadjustable; rear suspension adjustment covers spring preload.

Wiring, Flow Charts and Reassembly Routing

Model-specific wiring diagrams distinguish ABS and non-ABS layouts and identify Brazil-specific differences. Other references include the Charging System Circuit, Engine Oil Flow Chart, Coolant Flow Chart, and ABS Diagnosis Flow Chart.

The Cable, Wire, and Hose Routing appendix shows harness and hose positions during reassembly, including routing around the ABS hydraulic unit. These drawings support checking clearances and avoiding trapped wiring when components go back into place.

Cooling Capacity and Fastener Torque Examples

Cooling specifications list a total capacity of 1.2 L (1.3 US qt), including the radiator, engine, and reserve tank at its full mark.

Cylinder-head data specifies 25 N·m initial and 56 N·m final torque for M10 bolts with the specified molybdenum-disulfide oil treatment. M6 head-bolt data specifies 12 N·m with non-permanent threadlocker; the intake-air-temperature sensor screw is listed at 1.2 N·m.
