Yamaha Big Bear 350 4WD ATV Service Manual Set, 1987–1997 (P/N LIT-11616-FM-37)

588 Pages • ZIP Download: 2 Printable PDFs (English)

4.6starstarstarstarstar_half(5)
$18.99 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Yamaha Models Covered & Key Technical Specifications

Models: Big Bear 350 4WD, YFM350FWT, YFM350FWW, YFM350FWA, YFM350FWB, YFM350FWF, YFM350FWH, YFM350FWJ

Models & Model Codes:

YFM350FWT — 2HR

YFM350FWW — 3HN1

YFM350FWA — 3HN

YFM350FWB — 3HN6

YFM350FWF — 3HN

YFM350FWH — 3HNR (USA), 3HNS (CDN), 3HNT (EUR)

YFM350FWJ — 3HNX

Model Years: 1987–1997 (1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997)

Serial Numbers: Starting engine numbers: YFM350FWT 2HR-000101, YFM350FWW 3HN-000101, YFM350FWA 3HN-023101, YFM350FWB 3HN-048101, YFM350FWF 3HN-149101, YFM350FWH 3HN-209101 (USA), 3HN-222101 (CDN), 3HN-229101 (EUR). Starting VIN references: YFM350FWT JY42HR00*HC000101, YFM350FWW JY43HNA0*K000101, YFM350FWA JY43HNW0*LC023101, YFM350FWB JY43HNW0*MC048101, YFM350FWF JY43HNA0*RA149101, YFM350FWH JY43HNA0*TA209101 (USA), JY43HNN0*TA222101 (CDN). Starting frame number: YFM350FWH 3HN-229101 (EUR).


  • Engine type: Air-cooled 4-stroke, SOHC

  • Engine displacement: 348 cm3

  • Compression ratio: 8.6:1

  • Starting system: Electric and recoil starter (YFM350FWT, YFM350FWH, YFM350FWJ); electric starter (YFM350FWW)

  • Transmission: Constant-mesh, dual-range 5-speed with reverse; shaft-driven 4WD

  • Front brake type: Drum brake

  • Rear brake type: Disc brake (base manual); drum brake (YFM350FWH/YFM350FWJ)

  • Engine oil capacity: YFM350FWT: 2.4 L for a periodic engine oil change, 3.4 L total for the engine and 0.3 L for the transfer gear case. YFM350FWB: 2.7 L for a combined engine and transfer gear oil change, 2.8 L with filter replacement and 3.7 L total.

  • Fuel tank capacity: 10.0 L (base service manual); 13.5 L (YFM350FWJ owner's manual)

Yamaha Manual Features & Selected Content Preview

Publication Pages
Yamaha YFM350FWT Service Manual (P/N LIT-11616-06-01) 326
YFM350FWW Supplementary Service Manual (P/N LIT-11616-06-66) 12
YFM350FWA Supplementary Service Manual (P/N LIT-11616-07-02) 13
YFM350FWB Supplementary Service Manual (P/N LIT-11616-07-58) 15
YFM350FWF Supplementary Service Manual (P/N LIT-11616-08-99) 20
YFM350FWH Supplementary Service Manual (P/N LIT-11616-09-82) 28
YFM350FWJ Supplementary Service Manual (P/N LIT-11616-10-30) 25
Yamaha Big Bear 350 4WD YFM350FWJ Owner's Manual (P/N 4UM-28199-61) 146
YFM350FW service compilation cover (P/N LIT-11616-FM-37) 1
Wiring sheets labeled YFM350FWW and YFM350FWA between supplements 2

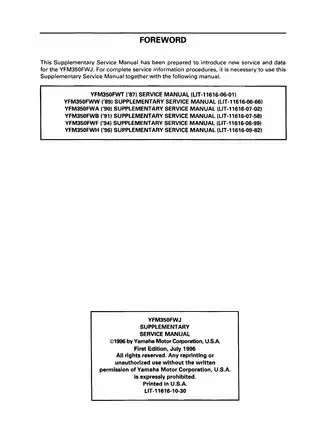

Yamaha's supplements build on the base service procedures. The applicable supplement supplies revised specifications, wiring, or procedures for that model. The owner's manual covers controls, pre-ride checks, riding, routine maintenance, cleaning, and storage.

The FWH supplement provides rear drum brake repair procedures, while the FWJ owner's manual covers shoe inspection and adjustment. The FWB supplement lists an FWB wiring diagram in its contents. The wiring sheets immediately after that supplement are labeled FWW and FWA.

PDF Search, Bookmarks, and Wiring Labels

Search and diagram detail. Both PDFs have OCR text and bookmarks. Text search covers most body pages, with gaps on some covers, the owner's illustrated riding opener, and small diagram labels. The service PDF has bookmarks for the base chapters and supplements, and the owner's PDF has section bookmarks. Fine wire codes and connector labels in the service diagrams need zooming, and some remain hard to distinguish. The owner's PDF skips printed pages 7-8 and 7-9.

The ZIP contains 588 pages across two printable English PDFs, a 442-page service compilation and a 146-page owner's manual. The total includes the compilation cover, the two wiring sheets between supplements, the publication covers and front matter, and the owner's conversion table.


Engine Overhaul, 4WD Service, and Electrical Diagnosis

The topics below are a selection from the manuals. The service volume also includes cylinder compression testing and fuel petcock cleaning.

  • Engine repair. Engine removal and reinstallation, cylinder head and piston overhaul, crankshaft inspection, oil pump checks, and recoil starter disassembly and reassembly.
  • Carburetor service. Mikuni BTM32SH teardown, float height and fuel level checks, jet and needle inspection, and throttle and starter cable adjustments.
  • Transmission and 4WD. Clutch and shift mechanism service, transfer gear work, front differential removal, and rear final drive overhaul.
  • Brakes and chassis. Front hydraulic brake bleeding, rear brake service, steering knuckle and tie-rod inspection, toe-in adjustment, and suspension bearing checks.
  • Electrical diagnosis. CDI ignition and stator tests, starter and charging system troubleshooting, lighting and oil-temperature warning checks, and model-specific circuit diagrams.
  • Periodic maintenance. Valve clearance adjustment, air filter and spark plug service, ignition timing checks, lubrication schedules, and exhaust inspection.

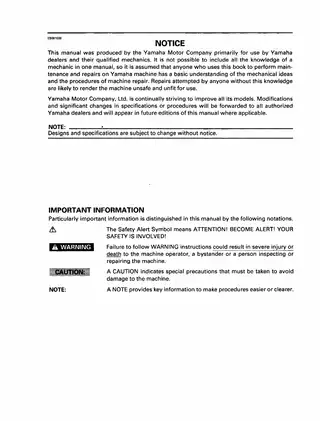

Yamaha wrote the service material for dealers and qualified mechanics familiar with mechanical repair. The separate owner's manual is for riders carrying out operating checks, routine maintenance, and minor service.

Engine, Carburetor, and Clutch

The engine chapter extends from top-end work to crankcase separation, crankshaft and shift fork inspection, and reassembly. It distinguishes the primary centrifugal clutch from the secondary multiplate clutch. The carburetor sectional view identifies the main, starter, and float circuits. The inspection procedures cover the coasting enricher diaphragm, piston valve, needle valve, and seat.

Differential, Middle Drive, and Rear Axle

The differential and CV joint sections cover shafts, bearings, seals, and boots. Yamaha specifies replacement of the factory-assembled differential gear unit as an assembly if its operation is faulty. Separate procedures cover ring gear backlash, shim selection, and middle drive and driven gear positioning. Tool references include the YM-03097 middle and final drive backlash dial gauge and the YM-37132 rear axle nut wrench. The front drive gear procedure explains when overtightening requires a new collapsible collar.

Starter Interlocks and Charging Tests

The starting circuit schematic and troubleshooting flowcharts trace the neutral, reverse, and brake interlocks. They help distinguish a switch or relay fault from a starter motor fault before parts are replaced. The electrical chapter also covers charging output and the oil-temperature warning circuit. The FWJ diagram identifies the optional auxiliary terminal and its fuse.

Brake and Suspension Service

The base manual covers the mechanically operated rear disc brake and hydraulic front drum brake, including master and wheel cylinder service. Yamaha specifies bleeding the front brake after opening the hydraulic circuit. Chassis procedures cover front arm bushings, swingarm bearing inspection and lubrication, and shock spring preload. The appendices provide component-specific fastener torques, fluid capacities, and wear limits.

Selected FWJ Piston and Ignition Specifications

The FWJ supplement lists a piston-to-cylinder clearance of 0.04–0.06 mm and a wear limit of 0.15 mm for evaluating cylinder and piston fit.

For ignition diagnosis, the FWJ pickup coil is specified at 459–561 Ω at 20°C (68°F) across the red and white leads. The FWA supplement lists 170–210 Ω at the same temperature across the blue and yellow leads, so the applicable supplement determines which reading to use.
