Yamaha Kodiak 400 4WD 1993–1998 Service & Owner's Manual Set (P/N LIT-11616-08-73)
587 Pages • ZIP Download: 2 Printable PDFs (English)
Yamaha Models Covered & Key Technical Specifications
Model: Kodiak 400
Sub-models / Variants: YFM400FWE (U.S.: 4GB1; Canada/Europe: 4GB2; engine identification prefix: 4GB); YFM400FWH (U.S.: 4SH1; Canada: 4SH2; Europe: 4SH3; Oceania: 4SH4; engine identification prefix: 4SH); YFM400FWK
Model Years: 1993–1998 (1993, 1994, 1995, 1996, 1997, 1998)
Engine starting serial numbers: YFM400FWE — U.S.: 4GB-000101; Canada/Europe: 4GB-016101. YFM400FWH — U.S.: 4SH-000101; Canada: 4SH-028101; Europe: 4SH-033101; Oceania: 4SH-035101.
VIN starting numbers: YFM400FWE — U.S.: JY44GBA0PA000101; Canada: JY44GBN0PA016101. YFM400FWH — U.S.: JY44SHA0TA000101; Canada: JY44SHN0TA028101; Oceania: JY44SHT0*TA035101.
Frame starting serial numbers: Europe — YFM400FWE: 4GB-016101; YFM400FWH: 4SH-033101.
-
Engine displacement: 386 cc
-
Fuel tank capacity: 13.5 L (3.6 US gal) (YFM400FWH / YFM400FWK)
-
Reserve fuel capacity: 1.3 L (0.34 US gal)
-
Recommended tire pressure (front/rear): 25 kPa (3.6 psi) (YFM400FWK; cold tires)
-
Minimum tire pressure (front/rear): 22 kPa (3.2 psi) (YFM400FWK)
-
Maximum vehicle load: 210 kg (463 lbs) (YFM400FWH / YFM400FWK)
-
Maximum front carrier load: 40 kg (88 lbs)
-
Maximum rear carrier load: 80 kg (176 lbs) (YFM400FWK)
-
Brake fluid recommendation: DOT 4
-
Engine oil classification: API Service SE or SF (YFM400FWK)
-
Transmission: Constant mesh, dual-range 5-speed forward with 1-speed reverse; shaft drive
Yamaha Manual Features & Selected Content Preview
| Publication | Pages |
|---|---|
| YFM400FWE service manual — 1993, 2nd Edition, March 1993; P/N LIT-11616-08-73 | 382 |
| YFM400FWH supplementary service manual — 1996 model update, 1st Edition, June 1995; P/N LIT-11616-10-01 | 36 |

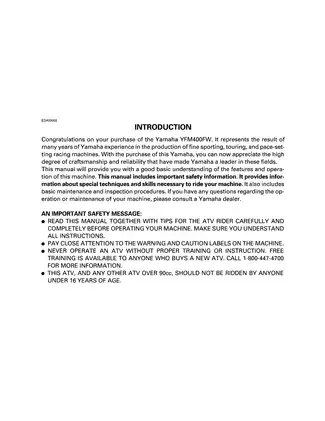

| YFM400FWK owner's manual — 1st Edition, March 1997; P/N LIT-11626-10-72 | 167 |
The supplement supplies changed service data and procedures for use alongside earlier service information. The owner's manual covers operation, pre-ride checks, riding techniques, and owner-level maintenance.
Regional service coverage: The supplement's foreword specifically names the 1993 European service manual, 4GB-ME1, and the 1993 supplementary manual, 4GB-AE1, as companion publications. The supplied base volume is the separately identified edition listed above; match regional configurations before applying the update.
PDF Search, Bookmarks and Diagram Detail
Search and diagram access: Both PDFs have searchable OCR text and embedded bookmarks, with some illustrations and wiring labels outside the usable text layer. A few bookmark labels or targets are inaccurate. Small wiring labels require zooming; some starting-system details remain difficult to read.
The ZIP contains two printable English PDFs totaling 587 pages: a 420-page service file and a 167-page owner's file. These counts already include two service-file outer covers and five additional owner-file pages. The service-file outer cover identifier is LIT-11616-KD-40.
Engine, Shaft-Drive and Operating Coverage
These selected topics outline the repair and operating coverage rather than reproduce the full contents. Other included work covers speed-limiter adjustment and headlight beam adjustment.
-
Engine overhaul: Step-by-step engine removal and reassembly, cylinder-head and valve work, camshaft and timing-chain service, piston and crankshaft inspection, balancer work, and oil-pump repair.
-
Clutch and transmission: Primary and secondary clutch inspection, transmission and shifter disassembly, plus electric-starter and recoil-starter service.
-
4WD drivetrain: Front differential and constant-velocity joint repair, transfer gear and middle-drive damper service, rear axle and final-drive work, shim selection, gear-lash adjustment, and operational checks.
-
Brakes and chassis: Hydraulic front-drum and mechanical rear-drum service, master- and wheel-cylinder work, bleeding, lining and drum inspection, wheel bearings, steering, tie-rods, front arms, swingarm, shocks, and toe-in adjustment.
-
Carburetor and maintenance: Carburetor removal, disassembly, inspection, assembly, installation, and fuel-level adjustment, alongside valve-clearance, ignition-timing, compression, oil-pressure, clutch, and control-cable checks.
-
Electrical diagnosis: Overall circuit and wiring diagrams, ignition tests, starting and interlock checks, charging-system diagnosis, lighting and signal circuits, and oil-temperature/fan fault tracing.
-
Owner operation: Control functions, high/low/reverse selection, electric and recoil starting, reverse-lock release, auxiliary DC terminal use, pre-ride inspections, cargo handling, and towing guidance.
Yamaha wrote the service material primarily for dealers and qualified mechanics with a basic understanding of machine repair; the separate owner's manual supports operating familiarization and basic maintenance, with unfamiliar service work referred to a dealer.
Regional Updates and Battery Types
The 4SH supplement adds revised carrier, fender, and fuel-tank removal and installation procedures, updated cable-routing views, and regional carburetor and horn data.
Battery procedures distinguish sealed batteries outside Oceania from the vented Oceania configuration. This distinction matters when selecting charging and inspection procedures rather than carrying the base manual's battery instructions over unchanged.
Repair Detail and Special Tools
Exploded assembly views precede disassembly sections. The reference material includes component-specific torque tables, lubrication points and diagrams, fluid specifications, wear and clearance limits, gear-shim calculations, and electrical resistance and output tests.
Engine tooling includes the crankcase separating tool YU-01135-A / 90890-01135, flywheel puller YM-01404 / 90890-01404, and valve-spring compressor YM-04019 / 90890-04019.
Drivetrain tooling includes the damper-spring compressor YM-33286 / 90890-04090 and gear-lash measurement tool YM-01230 / 90890-01230. Regional tool-number alternatives help identify the equipment specified for the job before disassembly.
Circuit Diagrams and Fault Isolation
The YFM400FW Circuit Diagram and Wiring Diagram provide the overall electrical layout. Separate Ignition System, Electrical Starting System, Charging System, and Cooling System diagrams accompany system-specific checks.
The starting-system material explains interlock operation and tests the associated switches and relays. Fan diagnosis follows the circuit breaker, motor, relay, control unit, thermo unit, and wiring, linking the diagrams to actual fault-isolation procedures.
Riding and Load Management
The owner volume gives illustrated guidance for turning, steep ascents and descents, side-hill travel, reverse operation, skids, obstacles, rough terrain, and shallow-water crossings.
Loading guidance explains cargo placement and securing, trailer tongue weight, longer braking distances, and high/low-range use under load. Cleaning, storage, and periodic maintenance are covered separately.
Repair Cautions
The drivetrain procedures warn about shaft-thread damage from direct hydraulic-press loading and a collapsible collar that requires replacement if the specified starting torque is exceeded. Front-brake cautions address solvents that swell hydraulic seals and grease contamination that can cause brake slip.
Brake, steering, wheel, and shaft-drive repairs directly affect vehicle control. Use the specified equipment, observe the factory warnings, and complete the prescribed operational checks before returning the ATV to service.
Valve-Clearance and Front-Brake Inspection Preview
The YFM400FWE base manual specifies cold valve clearances of 0.06–0.10 mm for the intake and 0.16–0.20 mm for the exhaust. These values accompany the feeler-gauge inspection and valve-adjuster procedures.
Its front-brake inspection section lists a standard lining thickness of 4.0 mm with a 1.0 mm wear limit. Front drum inside diameter is specified as 160 mm, with a 161 mm wear limit.
