Yamaha Kodiak 450 ATV Owner’s & Service Manual Set, 2003–2007 (P/N LIT-11616-16-01)

Use the YFM450FAR service manual as the workshop reference and consult the applicable supplement for changes to the model you’re servicing. Each supplement’s foreword identifies the earlier publications it calls for.

The base manual covers front differential case service and gear lash adjustment. Yamaha specifies leaving the factory-assembled differential unit and the gear motor intact.

Search, Bookmarks, and Wiring Detail

Finding procedures and diagrams: Both PDFs have embedded bookmarks and searchable manual text. Some back matter in the owner’s PDF, including the safety reply card, is image-based. In the service PDF, small wire codes and connector labels are readable when zoomed in.

The ZIP contains 768 pages across two printable PDFs: a 194-page owner’s manual and a 574-page service compilation. The owner’s count includes two warranty pages, three supplemental pages, and the two-page safety reply card. The service count includes the repeated YFM450FAS supplement and two blank pages.

Engine, Shaft Drive, and Electrical Service

These are selected topics from the service publications. The base manual also covers recoil starter assembly and oil pump inspection.

• Engine repair: Engine removal and installation, crankcase separation, valve guide replacement and seat refacing, piston and crankshaft inspection, and camshaft timing.

• V-belt transmission: Primary and secondary sheave disassembly, centrifugal clutch inspection, and internal transmission checks for shift forks, the shift cam, and gears.

• Shaft drive: CV joint and boot service, middle gear shim selection, final drive backlash measurement, and bearing and oil seal replacement.

• Brakes and chassis: Master cylinder and caliper overhaul, hydraulic brake bleeding, front lower arm ball joint replacement, and suspension removal and installation.

• Fuel system: Mikuni BSR33 carburetor disassembly, inspection, and fuel level adjustment.

• Cooling system: Radiator cap pressure testing, thermostat inspection, and water pump disassembly and seal replacement.

• Electrical diagnosis: DC-CDI ignition, starting and charging tests, cooling fan troubleshooting, and On-Command drive selector checks, supported by model-specific wiring diagrams.

The owner’s manual suits YFM450FAT riders doing pre-ride checks and routine maintenance. The service publications assume familiarity with mechanical repair and call for measuring equipment and special tools for some jobs.

Rear Suspension and Brake Differences

The YFM450FAR base manual covers a swingarm and solid rear axle. The YFM450FAT supplement covers independent rear double wishbones, rear CV shafts, and a stabilizer. The Grizzly supplement’s final gear case exploded view shows how its wet multiple-plate rear brake fits inside the assembly.

The YFM450FAT owner’s manual specifies SAE 80 API GL-4 hypoid oil for the final gear case. The Grizzly supplement specifies Yamaha Friction Modified Shaft Drive Gear Oil for its wet-brake final drive and lists P/N ACC-SHAFT-LU-00 for the U.S. and Oceania.

Fault Tracing and Workshop References

If the front drive fails to engage, the selector circuit diagram and continuity charts help you trace the fault through the relays, selector switch, gear motor, and harness. The YFM450FAS supplement adds checks for the differential-lock override switch. The Grizzly supplement adds headlight relay troubleshooting, and the base manual covers starter motor disassembly, inspection, and reassembly.

Coolant and oil flow diagrams show circulation paths, while cable routing drawings show hose and harness placement. The service tables give tightening torques, clearances, shim sizes, fluid capacities, and electrical test values. Tool references include sheave spring compressor YM-04134 and gear lash measurement tool YM-01467.

The backlash procedures warn that overtightening the ring gear holding bolt can damage the gear. The caliper section warns that solvents can swell or distort brake seals. Consult a qualified Yamaha technician before advanced repair work, particularly on brake systems or an ATV supported off the ground.

YFM450FAT Operation and Routine Care

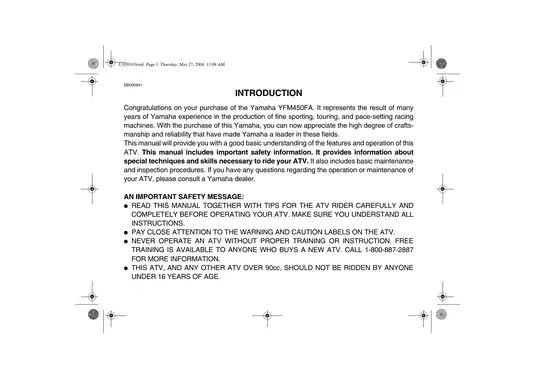

The owner’s manual shows where to find the VIN and model label and explains the handlebar switches, drive selection, and auxiliary DC jack. It covers starting in different temperatures, engine break-in, off-road riding, and how to account for trailer tongue weight when loading the ATV.

The maintenance schedule covers routine inspections, oil and coolant service, and basic troubleshooting for starting and overheating. It also explains cleaning and long-term storage.

Valve Clearance and Wet Brake Limits Preview

For the YFM450FAR, the base service manual specifies cold valve clearances of 0.06–0.10 mm on the intake and 0.16–0.20 mm on the exhaust.

For the YFM45FGX wet rear brake, the supplement gives a friction plate thickness limit of 2.22 mm and a maximum rear brake plate warpage of 0.2 mm.
