Yamaha Grizzly 125 2004–2013 Service & Owner’s Manual Set (P/N LIT-11616-17-56)

The owner’s guide covers daily use and scheduled care. For workshop repairs, Yamaha specifies using the YFM125S supplement with all three earlier service publications included here.

The service material follows this base-manual and supplement chain. Match the model designation, model code, and applicable regional starting numbers before selecting specifications or repair procedures.

PDF Files, Search, and Navigation

Text search and diagrams: Both PDFs support text search and include embedded bookmarks. OCR errors in older service sections can affect exact searches. Small wiring-diagram labels require zooming.

ZIP download containing two printable English PDFs: a 138-page owner’s guide and a 325-page service file, totaling 463 pages. This total includes four promotional pages and a two-page safety reply card.

Engine Overhaul, Electrical Diagnosis, and Owner Care

These selected content highlights outline the main workshop and operating topics. Further examples include cleaning and storage guidance and a maintenance-record form.

• Engine and drivetrain repair: Engine removal, internal disassembly and assembly, cylinder-head and valve work, timing-chain service, crankshaft and balancer inspection, oil-pump service, transmission and shifter repair.
• Clutch and belt drive: Centrifugal clutch inspection, primary and secondary sheave service, V-belt checks, and troubleshooting for poor engagement, weak acceleration, and loss of drive.
• Carburetion and tune-up: Carburetor removal, disassembly, inspection, float-height and fuel-level adjustment, valve-clearance adjustment, ignition-timing checks, compression testing, and engine-idle setup.
• Chassis repair: Wheel, drum-brake, axle, hub, front-suspension, steering, swingarm, drive-chain, and sprocket removal, inspection, installation, lubrication, and adjustment procedures.
• Electrical fault isolation: Ignition, electric-starting, charging, lighting, and signal-system circuit diagrams, continuity checks, resistance tests, component specifications, and troubleshooting sequences.
• Owner operation and maintenance: Controls, pre-operation checks, starting, reverse operation, slope parking, cargo use, riding techniques, maintenance charts, filters, spark arrester, battery, lights, and basic troubleshooting.
• Workshop references: Exploded assembly views with job-order charts, cable-routing layouts, lubrication diagrams, torque tables, approved-fluid data, wear limits, clearances, and special-tool identification.

The owner’s material is suited to riders performing routine inspections and maintenance with the required tools and experience; Yamaha prepared the service material primarily for dealers and qualified mechanics who already understand mechanical repair procedures.

Model Updates and Regional Specifications

The YFA1W base manual supplies the detailed repair procedures. Its supplements replace or add specifications, routing, maintenance, chassis, and electrical information for their named models.

California and non-California specifications are distinguished in the YFA1P/YFA1PC and YFA1M(C) sections. The model codes and regional starting numbers provide a way to select the appropriate information before ordering parts or applying workshop data.

Engine, Carburetor, and Drivetrain Procedures

Step-by-step instructions distinguish work that can be performed with the engine installed from work requiring deeper disassembly. The base manual identifies cylinder-head, cylinder, piston, camshaft, clutch, sheave, starter-clutch, and oil-pump service that can be carried out with the engine mounted, subject to the specified access work.

Internal repair coverage includes valve-seat refacing, valve-guide replacement, piston and cylinder measurement, crankshaft inspection, and transmission-shifter checks. Standard dimensions and wear limits support decisions about component reuse or replacement.

The carburetor section separates float-height adjustment from fuel-level measurement and identifies the required fuel-level gauge. Supplement-specific carburetor data must be matched to the applicable model.

Electrical Diagnosis and Workshop References

The circuit checks combine switch-continuity tests, coil-resistance specifications, wiring colors, and connection points to help distinguish wiring faults from component faults.

Reference graphics include the YFM125S wiring diagram, YFA1P/YFA1PC wiring diagram, YFA1W wiring diagram, carburetor sectional view, engine lubrication diagram, and cable-routing views.

Named equipment includes the crankcase separating tool YU-01135/90890-01135, secondary-sheave locknut wrench YM-4045-A/90890-01348, and Dynamic Coil Tester YU-34487/90890-03144.

Troubleshooting also addresses hard starting, poor idle or high-speed performance, shifting faults, weak braking, shock-absorber problems, overheating, unstable handling, and signal or lighting failures.

Chassis Work and Component Protection

Steering and suspension procedures cover play checks, tie-rod setup, toe-in adjustment, and inspection of bushes, bearings, and pivot components. Rear-wheel work includes axle, hub, brake-drum, and bearing service.

The YFM125S routing plates warn against pinching the coupler cover or transmission-case breather hose during fender installation. The rear-wheel repair section warns that striking the axle end directly can damage its threads and splines.

Operating Controls and Scheduled Care

The owner’s guide explains the main switch, handlebar switches, speed limiter, brake and parking controls, drive selector, fuel cock, choke, and carriers. Warning and specification-label locations are illustrated.

Separate emission-control and general maintenance charts distinguish routine care from work requiring dealer tools or technical skills. The maintenance chapter covers oil service, air filters, spark arrester, carburetor idle, valve-clearance requirements, drum brakes, chain adjustment, chassis lubrication, battery care, fuses, bulbs, wheels, and a starting-trouble chart.

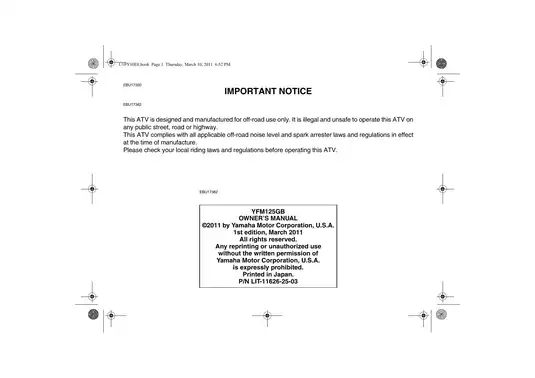

Yamaha identifies this ATV as off-road only and warns that it should not be ridden by anyone under 16. Read the operating and safety sections before riding, and follow the service warnings for fuel-system, rotating-component, brake, battery, and raised-vehicle work.

Selected Ignition and Charging Test Values

For the YFM125S F1C5 magneto, the supplement specifies pickup-coil resistance of 248–372 Ω and charging-coil resistance of 0.8–1.2 Ω, both at 20 °C (68 °F). These are model-specific electrical test values accompanying the ignition and charging circuit information.
