2013 Nissan 370Z Audio, Visual & Navigation System Service Manual
2013 Nissan 370Z Audio, Visual & Navigation System manual procedures, diagrams, and specifications for diagnosis and repair. Aba133
Manual Preview

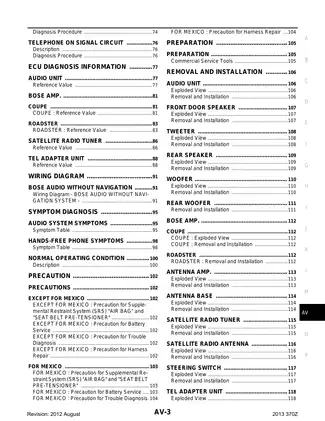

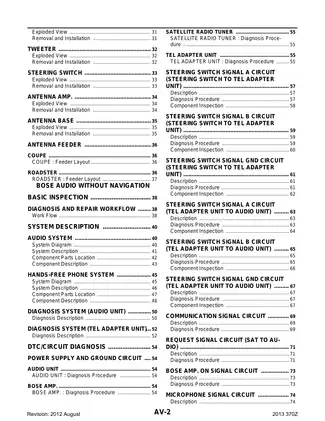

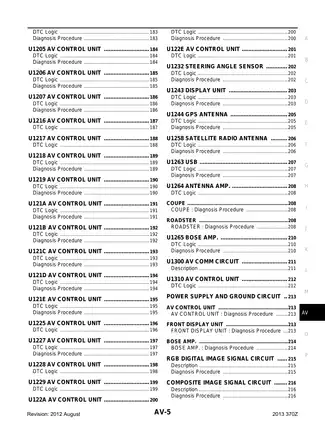

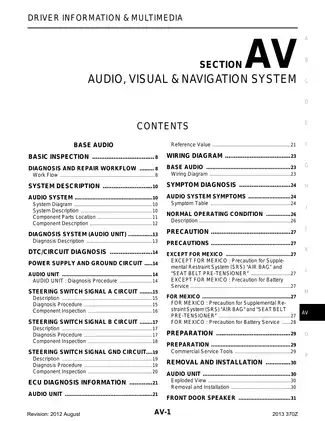

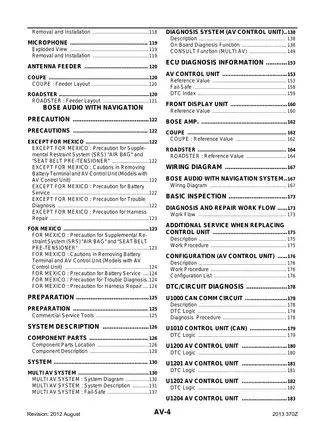

Sample pages from the 2013 Nissan 370Z Audio, Visual & Navigation System Service Manual manual
Purchase & Download
Models Covered & Key Technical Specifications
Nissan 370Z (2013) Audio, Visual & Navigation System Manual: Nissan 370Z Audio, Visual & Navigation System manual Procedure-Database
System-Identifier: Audio, Visual & Navigation System // Equipment-Series: 2013 Nissan 370Z / Coupe, Roadster Logic // System-Identifier: Audio, Visual & Navigation System
- System: 2013 Nissan 370Z Coupe / Roadster models Audio, Visual & Navigation System
- Functions: Integrates navigation, audio, hands-free phone, voice control, and more via AV communication.
- Navigation: Utilizes GPS, GYRO, and HDD for positioning; displays map data and driving status.
- Audio: Features AM/FM, Satellite Radio, CD, Bluetooth, and USB inputs, processed via BOSE amp.
- Hands-Free Phone: Operates via Bluetooth and steering switches for calls and voice commands.
- Connectivity: Supports USB for media playback and recharging; integrates with AV control unit.
Professional Workshop Service Manual & Technical Specifications
Nissan 370Z (2013) Audio, Visual & Navigation System manual Procedure-Database
System-Identifier: Audio, Visual & Navigation System / Equipment-Series: 2013 Nissan 370Z / Coupe, Roadster Logic / System-Identifier: Audio, Visual & Navigation System
| Identifier | Rating | Calibration-Spec |
|---|---|---|
| System | 2013 Nissan 370Z Coupe / Roadster models | Audio, Visual & Navigation System |
| Functionality | Navigation, Audio, Hands-Free Phone, Voice Control | Integrated via AV Control Unit |
| Connectivity | Bluetooth®, USB, AV Communication | Serial Communication, CAN Bus |
| Components | AV Control Unit, BOSE Amp., Speakers, Microphones | Detailed system diagrams included |
| Diagnostics | DTC Codes, Self-Diagnosis, CONSULT Functions | Targeted troubleshooting for AV system issues |
Technical content addresses the diagnosis and repair of the Audio, Visual, and Navigation systems within the 2013 Nissan 370Z. This manual details system descriptions, component locations, and operational procedures. It includes troubleshooting for various audio symptoms and diagnostic trouble codes (DTCs), covering circuits like CAN COMM, GPS, USB, and Bluetooth modules.
The Audio System Description delves into the functions of the AM/FM radio, Satellite Radio, CD player, and Bluetooth audio, explaining how signals are processed through the antenna, amplifiers, AV control unit, and BOSE amplifier to the speakers. It also details the Hands-Free Phone system's operation and the Auxiliary Input Function for external devices.
Diagnostic procedures are thoroughly outlined, including self-diagnosis for the AV Control Unit, DTC detection logic, and specific troubleshooting steps for various error codes like U1000 (CAN COMM CIRCUIT) and U1218 (HDD CONN). The manual emphasizes performing diagnosis with CONSULT for accurate malfunction identification.
The product description documents torque specifications for proper clamp load consistency, ensuring optimal performance and longevity of the audio and navigation components within the Nissan 370Z.
The Table of Contents includes sections on Basic Inspection, System Description (including Audio System, Hands-Free Phone System, and Navigation System), DTC/Circuit Diagnosis for numerous components, Symptom Diagnosis, and Precautionary measures. Specific chapters cover Troubleshooting, Removal and Installation of components like the AV Control Unit, Speakers, and Antennas.
