2014 Nissan Rogue T32 Series Service Manual
This comprehensive service manual for the 2014 Nissan Rogue T32 series provides detailed repair and diagnostic procedures. Learn component service, wiring diagrams, and troubleshooting for all AV system components. Part number C4077-90960.
Manual Preview

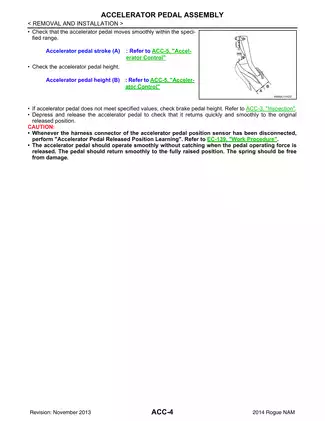

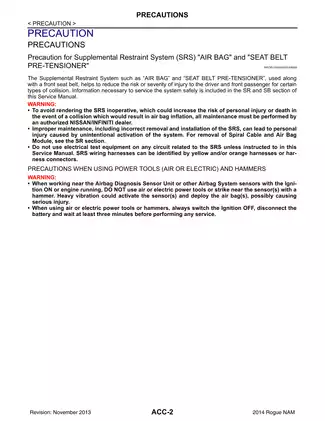

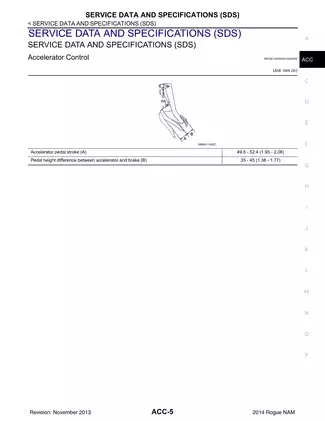

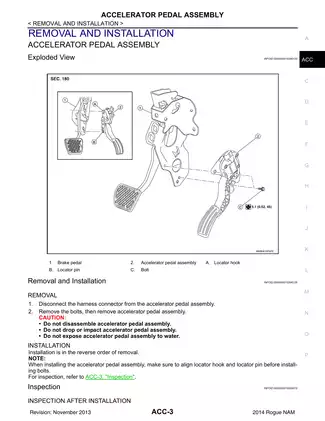

Sample pages from the 2014 Nissan Rogue T32 Series Service Manual manual
Purchase & Download
Models Covered & Key Technical Specifications
2014 Nissan Rogue (T32 Series)
Service Manual | Navigation Without Bose
Approved Power Framework: 12 V DC nominal input, 13.5 V DC charging system voltage.
Baseline Operating Temps: -40°C to +85°C (-40°F to +185°F) operating range.
Verified Cycle Rate: Up to 30 cycles per second for display refresh.
Designated Package Size: Compact unit fits within standard dashboard enclosures.
Certified Moment Values: Designed to withstand vehicle vibrations up to 5G.
Reference Current Rating: 10 A fuse for AV control unit power supply.
Professional Workshop Service Manual & Technical Specifications
Applied Specification Diagnostic Manual: Nissan Rogue Manual: 2014 Series System-Standards
Operational-Scope: AV System / Maintenance-Category: Navigation Without Bose / Operational-Scope: Vehicle Electronics.
Assessment-Element | Operational-Logic | Logic
---|---|--- AV Control Unit | System Integration | Monitors and controls all AV functions. Navigation System | Vehicle Location | Calculates position using GPS and vehicle sensors. Audio System | Signal Distribution | Manages audio output to speakers and internal components. Camera Systems | Image Processing | Processes and displays camera feeds for parking assist. Systematic Components Overview Systematizing the service groups into a logical structure, this manual offers a deep dive into the vehicle's sophisticated AV and navigation systems. The document includes essential information for diagnosing and repairing various audio, visual, and navigation components, ensuring your vehicle's infotainment system performs optimally. It covers everything from basic inspections to detailed DTC troubleshooting for the AV control unit, around view monitor, speakers, and various input/output jacks. The manual also details the processes for system configuration and calibration, crucial for maintaining the integrity of advanced features like the Around View Monitor.
Troubleshooting and Diagnostics
Diagnostic procedures are thoroughly documented, offering step-by-step guidance for identifying and resolving issues within the AV and navigation systems. This includes detailed DTC (Diagnostic Trouble Codes) explanations, circuit diagrams, and specific troubleshooting flowcharts for common problems, ensuring technicians can efficiently pinpoint and rectify malfunctions.
