Nissan Sentra B17 2014 Factory Service Manual (P/N SM14E00B17U0)

4,196 Pages • RAR Download: 55 Printable PDFs • 99.99 MB

4.6starstarstarstarstar_half(5)
$16.95 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Nissan Models Covered & Key Technical Specifications

B17 Series / Nissan 2014 Nissan Sentra B17

Production/model years: 2014

Models: Sentra

Models & Model Codes:

Sentra — B17

50-State variants: S 6MT (BDSALCY-EUA), S CVT (BDSALCZ-EUA), SV CVT (BDSALDZ-EUA), FE+SV CVT (BDSALNZ-EUA), SR CVT (BDSALRZ-EUA), SL CVT (BDSALGZ-EUA)

California variants: S CVT (BDSALCZ-EVA), SV CVT (BDSALDZ-EVA), SR CVT (BDSALRZ-EVA), SL CVT (BDSALGZ-EVA)

Canada variants: S 6MT (BDSALCY-ENA), S CVT (BDSALCZ-ENA), SV 6MT (BDSALDY-ENA), SV CVT (BDSALDZ-ENA)


Engine: MRA8DE

Transmissions: RS6F94R six-speed manual transaxle (model code ET80A); RE0F11A CVT (model code X427A)

VIN fitment identifiers: Position 4: A = MRA8DE engine; positions 5–6: B7 = B17 Sentra

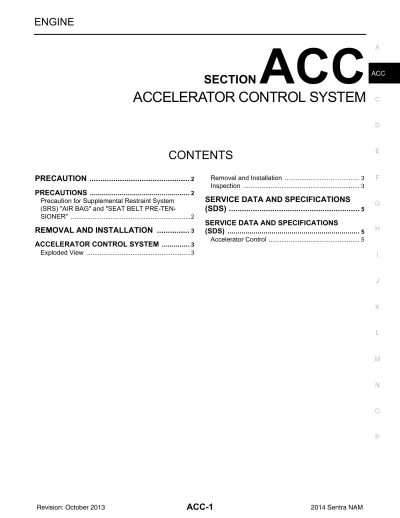

Nissan Manual Features & Selected Content Preview

This factory service manual covers the 2014 Nissan Sentra B17 four-door sedan for the North American market, built with the MRA8DE 1.8-liter DOHC four-cylinder. Nissan Pub. No. SM14E00B17U0, Edition and Revision October 2013.

Printable PDFs, Text Search and Chapter Navigation

Search and diagram detail: Searchable text is available throughout the chapter files. Embedded bookmarks are present in 47 PDFs and absent from eight; links between files depend on the PDF reader and filenames. Small wiring-diagram labels require zooming for comfortable reading.

The RAR download contains 55 printable PDFs totaling 4,196 pages: 54 chapter files with 4,188 pages, plus an eight-page foreword and quick-reference file. The total already includes the index, foreword, safety notice, feedback form and five-page quick-reference chart.


Engine, Drivetrain and Electrical Service

The selected coverage below highlights major repair and diagnostic areas. Other included topics include periodic-maintenance schedules and moonroof initialization.

  • MRA8DE engine repair: Engine removal, timing-chain and camshaft service, cylinder-head disassembly, cylinder-block inspection, and piston and bearing selection.

  • Manual transaxle and clutch: RS6F94R case disassembly, shaft and synchronizer inspection, final-drive service, clutch hydraulics, and concentric slave-cylinder replacement.

  • CVT diagnosis and service: RE0F11A fault diagnosis, stall and line-pressure testing, replacement-unit setup, fluid-level adjustment, and torque-converter and housing-seal service.

  • Brakes, suspension and steering: Axle and suspension service, wheel alignment, drum and disc brakes, VDC/TCS/ABS diagnosis, and EPS fault tracing.

  • Electrical troubleshooting: ECM, BCM, IPDM E/R and CAN diagnostics, starting and charging tests, wiring diagrams, and Intelligent Key/NATS coverage.

  • Body and interior repair: Panel replacement, body-alignment dimensions, corrosion protection, door and trunk adjustment, glass, roof, seats and trim.

  • Heating and air conditioning: Automatic and manual HVAC diagnosis, R-134a recovery and recharge, leak testing, and compressor and refrigerant-circuit repair.

Its mechanical repair depth is suited to professional technicians and experienced owners comfortable with factory procedures; many electronic and calibration jobs assume access to CONSULT, electrical test equipment and model-specific service tools.

Engine Inspection and Supporting Systems

Step-by-step procedures cover compression and valve-clearance checks, valve-oil-seal replacement, internal engine inspection, and removal and installation for both transmission configurations. Cooling, lubrication, intake, exhaust, fuel-injector and fuel-pump sections support the mechanical work.

The engine inspection material connects measured wear and clearances with piston and bearing selection. This provides the specifications needed to assess internal components during disassembly, rather than relying on removal instructions alone.

Manual Transaxle and CVT Repair Boundaries

Six-speed transaxle: Internal procedures cover the input shaft, mainshaft, reverse idler shaft, synchronizers, bearings, oil seals and final drive. Clutch coverage includes pedal adjustment, hydraulic-line service and bleeding, master cylinder, disc and cover.

For the RS6F94R, the concentric slave cylinder is not reusable after transaxle removal: its return movement can carry dust across the sliding area, damage the seal and cause a clutch-fluid leak.

RE0F11A CVT: Additional service procedures address TCM or transaxle replacement and G-sensor calibration. Component work includes speed sensors, oil pan, fluid filter, oil warmer and electric oil pump.

CVT coverage includes diagnosis, calibration, external component service, unit removal, and torque-converter/converter-housing seal work; it does not provide a full internal belt-and-pulley overhaul procedure. The manual specifies Nissan NS-3 and warns that other transmission fluid can damage the CVT.

Chassis and Brake Service

Front hubs and drive shafts, struts, transverse links and the suspension member are covered alongside rear shocks, springs and the rear beam. Brake procedures distinguish front disc, rear drum and rear disc hardware.

Hydraulic piping, master cylinder, booster, bleeding and burnishing procedures accompany wheel-sensor diagnosis and steering-angle neutral-position adjustment. Steering coverage also includes column and gear work.

Circuit-Level Wiring and Fault Diagnosis

Diagnostic workflows combine DTC logic, reference values, active tests, component checks, symptom charts and diagnostic work sheets. These connect a reported fault with the relevant circuit measurements and component tests.

Representative wiring diagrams include Engine Control System, CVT Control System, Brake Control System, Power Steering Control System, SRS Air Bag System and Automatic Air Conditioning System.

General Information explains connector symbols and terminal testing. Power-supply information adds battery, accessory and ignition routing, ground distribution, fuse and relay layouts, IPDM E/R terminal arrangements and harness locations. Coverage also addresses power windows, lighting, wipers, TPMS, audio/navigation and Bose/non-Bose configurations.

Body Repair and Restraint-System Coverage

Body-repair information includes high-strength-steel precautions, panel replacement operations, sealing and corrosion protection.

The included SRC chapter covers SRS control-system diagnosis and occupant-classification zero-point reset. Airbag-module, sensor and spiral-cable removal procedures refer to the separate SR chapter, which is not included in this download.

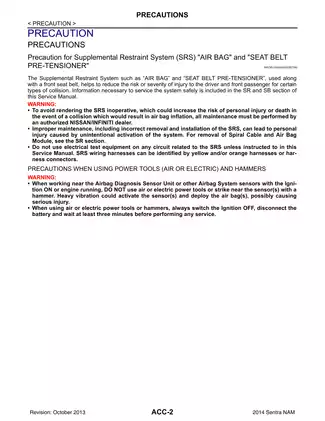

Before lifting the vehicle or opening brake, fuel or refrigerant systems, follow the manual's precautions and specified support points; the manual directs SRS maintenance to an authorized Nissan/Infiniti dealer.

Service Specifications and Workshop Tools

Service Data and Specifications sections provide torque data, approved fluids and capacities, wear limits, transmission inspection data, wheel-alignment and brake dimensions, CVT test specifications, A/C refrigerant and oil data, and electrical test values.

Named tools include the KV10111100 (J-37228) seal cutter, KV10112100 (BT-8653-A) angle wrench and KV311039S0 CVT charging pipe set.

Brake and HVAC sections identify the J-45741 ABS active wheel-sensor tester, J-46532 brake-height tool and J-48710 A/C recovery/recycling/recharging unit.

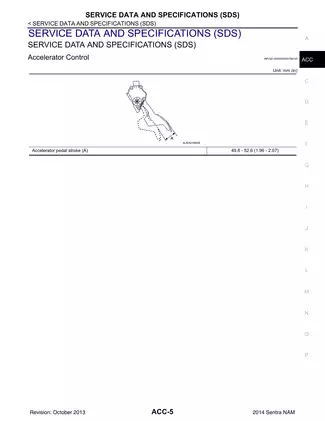

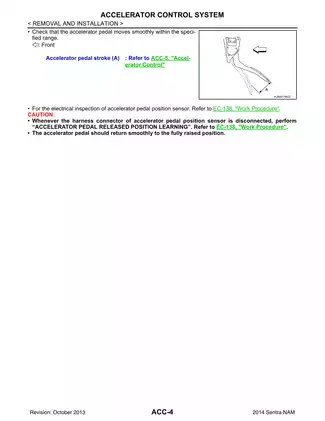

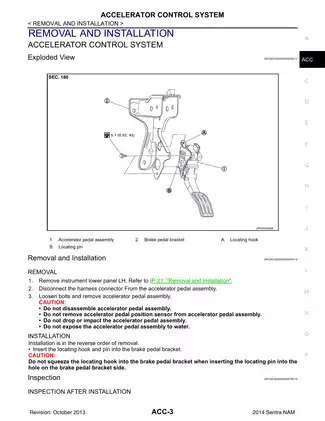

A Preview of Valve-Clearance and Cylinder-Head Limits

For MRA8DE valvetrain inspection, cold valve clearance is 0.25–0.33 mm at the intake and 0.28–0.36 mm at the exhaust. The accompanying tables distinguish these cold values from hot reference data and identify available valve-lifter thicknesses.

Cylinder-head inspection specifies a 0.1 mm surface-distortion limit, alongside valve and guide dimensions.
