Nissan Sentra 2008 Service & Repair Manual (P/N SM8E-1B16U0)
3,251 Pages • ZIP Download: 41 Printable PDFs • 96.06 MB
Nissan Models Covered & Key Technical Specifications
Model: Sentra
Models & Model Codes:
Sentra — B16
Sub-models / Variants:
-
Base (2.0), MR20DE: RS6F94R 6-speed manual (Canada: BDRALCY-ENA) or RE0F10A CVT, assembly code 1XF04 (USA: BDRALCZ-EUA; Canada: BDRALCZ-ENA)
-
2.0 S, MR20DE: RS6F94R 6-speed manual (USA: BDRALEY-EUA; Canada: BDRALEY-ENA) or RE0F10A CVT, assembly code 1XF04 (USA: BDRALEZ-EUA; Canada: BDRALEZ-ENA)
-
2.0 SL, MR20DE: RE0F10A CVT, assembly code 1XF04 (USA: BDRALGZ-EUA; Canada: BDRALGZ-ENA)
-
SE-R, QR25DE: RE0F10A CVT, assembly code 1XF5B (USA: BDBALUZ-EUA; Canada: BDBALUZ-ENA)
-
SE-R Spec V, QR25DE: 6-speed manual, RS6F52A (ET80D) or RS6F52H (ET85D) (USA: BDBALUY-EUA; Canada: BDBALUY-ENA)
VIN engine identifier: Position 4 — A = MR20DE (Base/2.0, 2.0 S, 2.0 SL); C = QR25DE (SE-R, SE-R Spec V)
Model Year: 2008
-
Accelerator pedal total travel: 50.5 mm (1.99 in)
-
Audio unit battery power supply: 20A fuse (No. 31)
-
Audio unit ACC power supply: 10A fuse (No. 6)
-
Steering switch resistance (SEEK/MODE/POWER, without Bluetooth): Approx. 165 ohms (SEEK up or down) and 0 ohms (MODE or POWER)
-
Bluetooth control unit remote control signal 1 (Approx): 0–5 V
Nissan Manual Features & Selected Content Preview
This Nissan factory service and repair manual covers 2008 Sentra B16 four-door sedans for the United States and Canada, including the MR20DE 2.0, 2.0 S, and 2.0 SL and the QR25DE SE-R and SE-R Spec V. Nissan North America issued and revised this edition in July 2007 (P/N SM8E-1B16U0).
PDF Search and Chapter Files
Text search and navigation: Search the service text within each PDF. Many chapters have bookmarks for navigating within the file. Wiring diagrams are graphics. Zoom in to read small connector and pin labels.
The ZIP download contains 3,251 pages across 41 printable PDFs: 3,242 pages in 40 service chapters and a 9-page opening PDF. The total includes the Quick Reference Index, foreword and safety notice, feedback form, and six quick-reference chart pages.
Engine, Transaxle, and Electrical Service
These selected service topics show the scope of the manual. Other sections cover cruise-control diagnosis and parking-brake adjustment.
- Engine mechanical: Timing chains, camshafts, valve-clearance inspection, cylinder-head and block service, engine removal, and piston and bearing selection.
- Engine controls: Fuel-pressure testing, emissions-system diagnosis, electronic throttle and idle learning, DTC confirmation, and CONSULT-III checks.
- Transaxles: Manual-transaxle disassembly and assembly, plus CVT road testing, pressure-control diagnosis, shift-lock checks, cooler and seal service, and transaxle removal.
- Brakes and chassis: Hydraulic service and bleeding, ABS/EBD diagnosis, electric power steering, suspension and axle service, wheel alignment, and TPMS registration.
- Electrical and security: Wiring diagrams, CAN signal charts, connector layouts, terminal reference values, Intelligent Key, NATS immobilizer, and Bluetooth diagnosis.
- Climate, restraints, and body: Refrigerant leak detection, compressor service, airbag and occupant-classification diagnosis, body alignment, and panel replacement.
The manual is suited to technicians and experienced DIYers who need factory test conditions, connector references, special-tool IDs, torque tables, or adjustment and wear limits.
Powertrain Tests and Overhaul
Separate MR20DE and QR25DE procedures cover intake and exhaust components, injectors and fuel rails, oil seals, cylinder-head disassembly, cooling, lubrication, and cylinder-block service. The engine-control procedures include MFI and ignition checks, EVAP/ORVR diagnosis, CAN communication checks, and post-repair learning. For an electronic throttle fault, the DTC confirmation routine, wiring checks, and learning procedures help distinguish a circuit fault from a relearn required after service.
The manual-transaxle chapters cover shafts, reverse gearsets, synchronizers, final drive, end play, and selection of snap rings, thrust washers, and shims. Nissan specifies replacing the concentric slave cylinder after transaxle removal because contamination can damage its seal and cause fluid leakage.
The CVT chapter covers TCM, sensor, solenoid, and step-motor diagnosis, line and secondary pressure, and belt-damage checks. Nissan specifies assembly replacement for internal transaxle faults. The chapter covers diagnosis and removal rather than an internal belt-and-pulley overhaul.
Audio, Body Electronics, and CAN

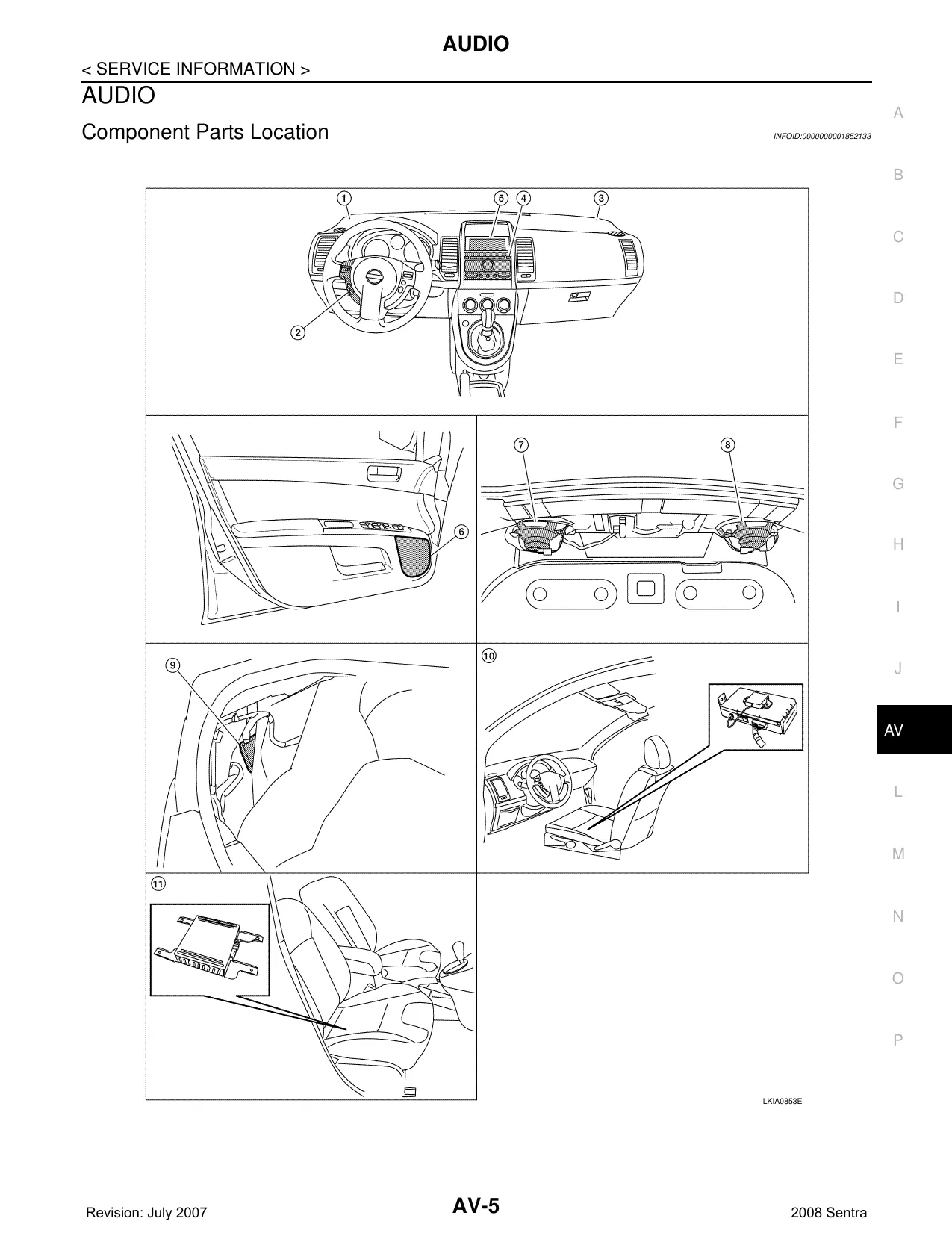

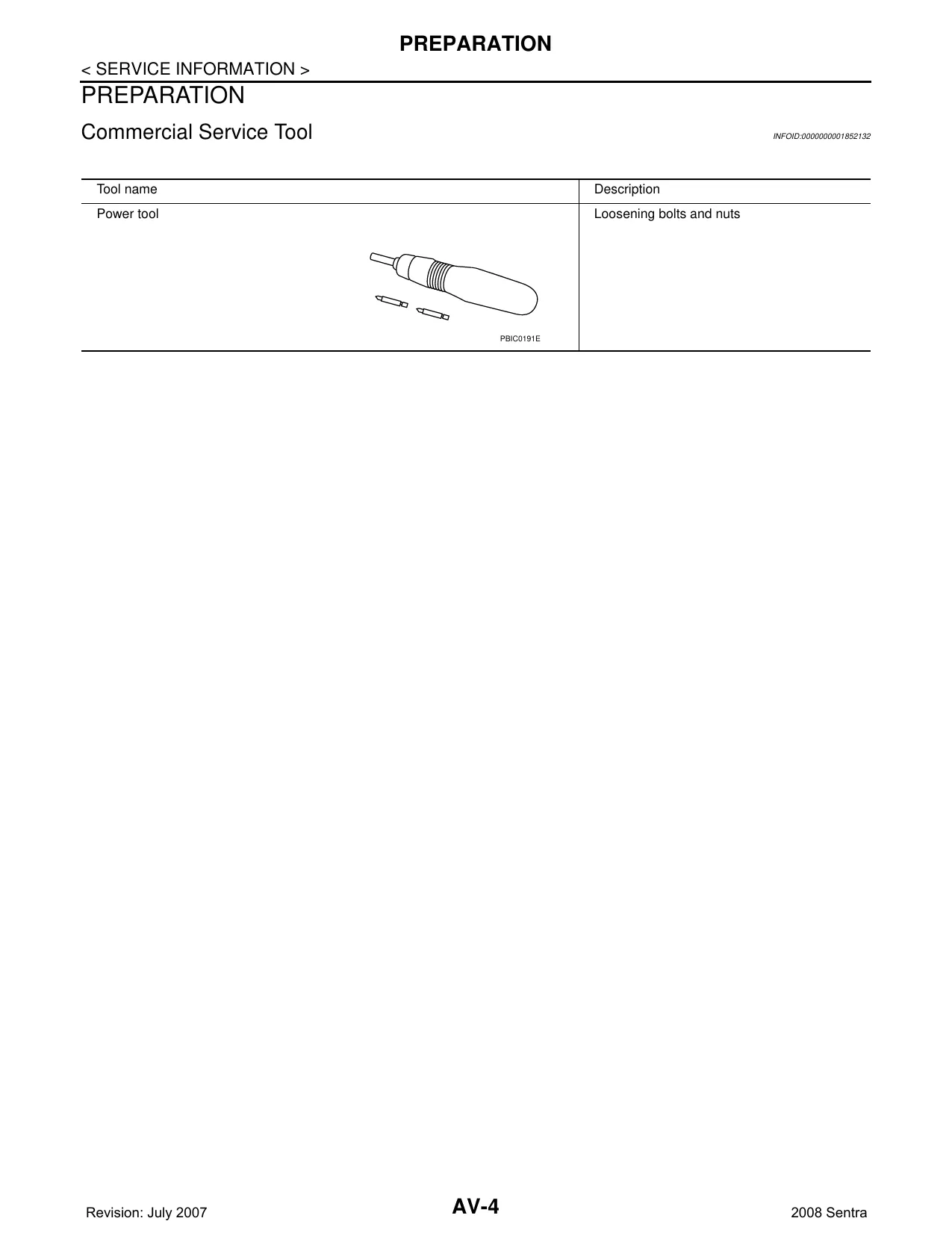

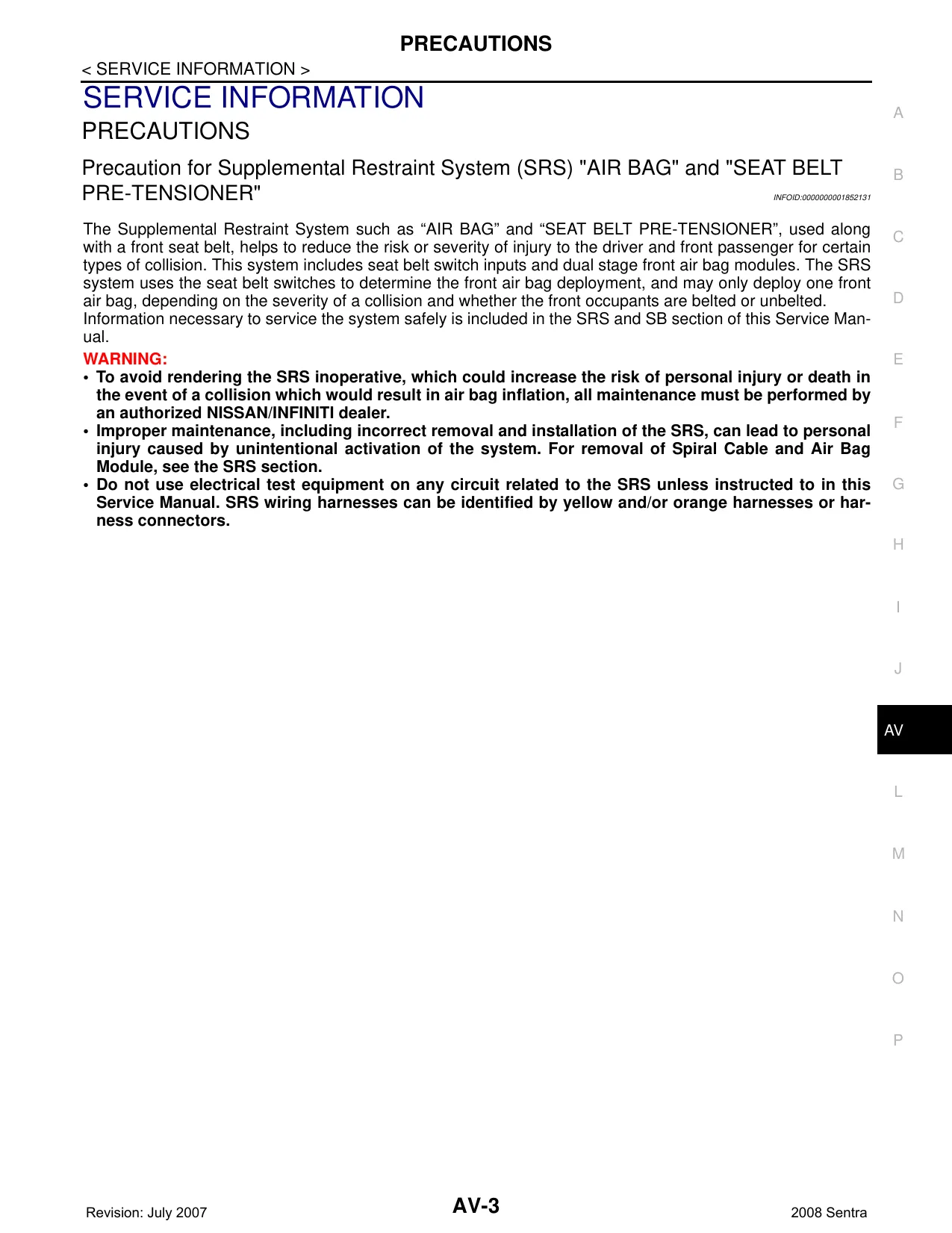

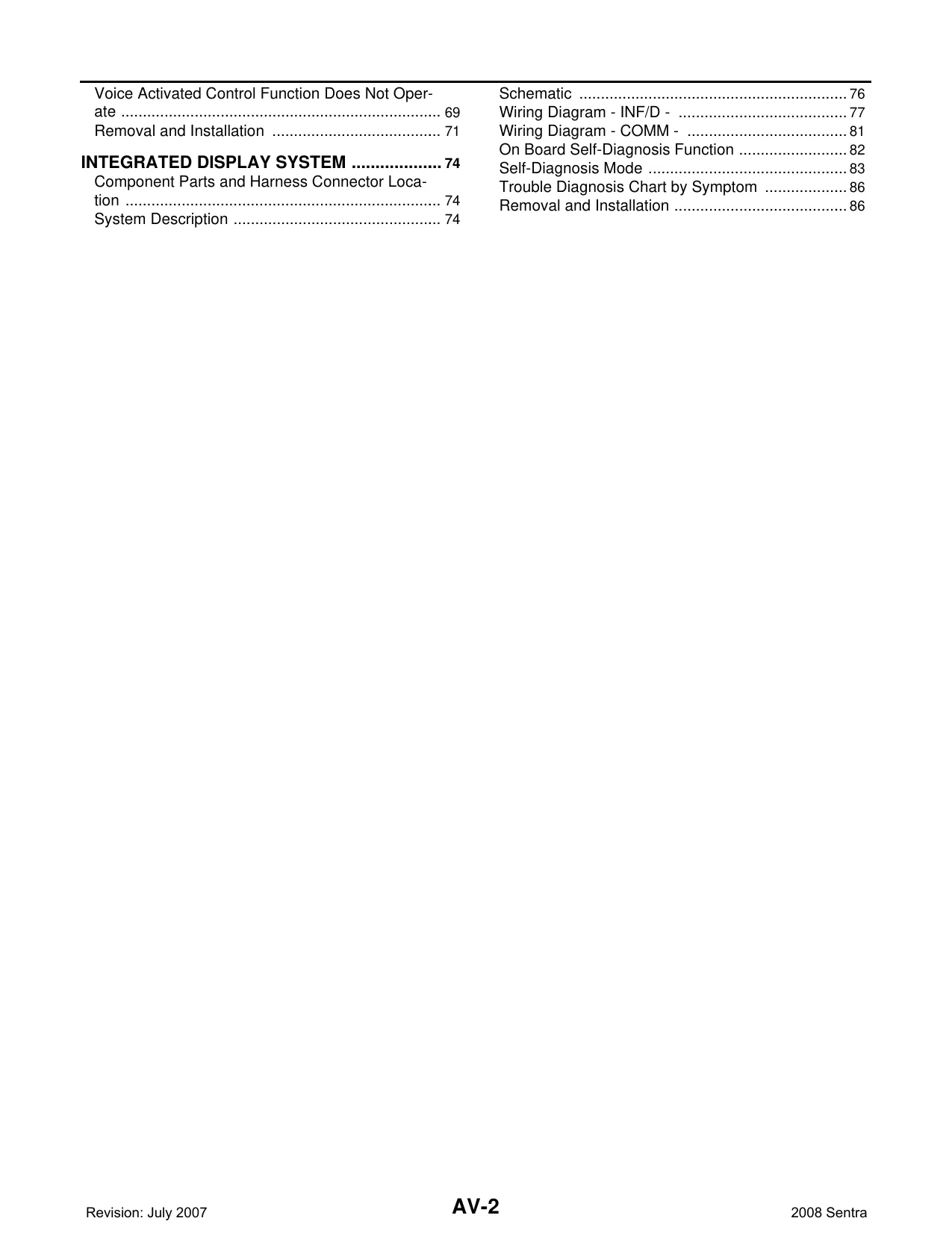

Base, Mid, and Premium identify audio configurations. The audio chapter covers the head unit, premium amplifier, satellite tuner, speakers and tweeters, steering-wheel controls, antenna, Bluetooth microphone, and integrated display. Navigation has no dedicated repair procedure in this edition.
The body electrical chapters trace the BCM and IPDM E/R, power and grounds, combination switches, windows, door locks, remote entry, electric steering lock, lighting, wipers, and starting and charging circuits. The accelerator chapter covers pedal assembly service. Pedal-position sensor diagnosis belongs in the engine-control chapters.
Brakes, Steering, Climate, and Collision Service
Brake procedures cover pedal adjustment, master cylinder and booster service, calipers, rear drums, and burnishing. ABS/EBD diagnosis includes active wheel-speed sensor, actuator, and solenoid checks. Chassis procedures cover the EPS gear and column, struts, control arms, rear beam and springs, hubs, and drive shafts.
The manual air-conditioning chapter covers R-134a recovery and charging, oil quantity, the compressor and clutch, refrigerant lines, the condenser and evaporator, the heater core, and blower and door-motor diagnosis. Restraint service covers airbags, pretensioners, the spiral cable, self-diagnosis, and collision checks. Nissan restricts electrical probing of restraint circuits.
Body repair includes glass adjustment, sunroof diagnosis, trim removal, body dimensions, corrosion protection, sealing, foam repair, and high-strength-steel precautions. Special-tool references include KV10112100 (BT-8653-A) for angle tightening and KV991J0080 (J-45741) for active wheel-speed sensor testing.
Selected Compression and Alignment References
For an MR20DE compression test at 250 rpm, the quick-reference chart lists 202 psi as standard, 165 psi as the minimum, and 15 psi as the maximum difference between cylinders. The minimum and cylinder-to-cylinder limit give separate checks for the readings.
The unladen front-camber chart gives nominal values of −0.17° for the MR20DE grades and SE-R, and −0.25° for the SE-R Spec V. Use the grade-specific column when comparing alignment readings.
